This service enables sending DCP requests and retrieving confirmations. More...

#include <IDcpService.hpp>

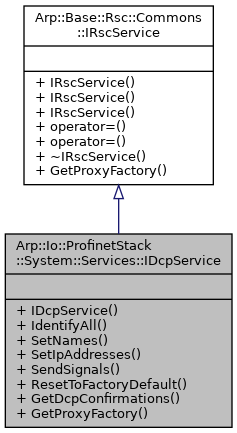

Inheritance diagram for Arp::Io::ProfinetStack::System::Services::IDcpService:

Public Types
using	Ptr = std::shared_ptr< IDcpService >

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IDcpService (void)=default
	Constructs an IDcpService instance.

virtual DcpResult	IdentifyAll (uint8 networkInterface=0)=0
	This operation sends a request to identify all devices in a network. More...

virtual std::vector< DcpResult >	SetNames (const std::vector< Station > &stations, StoreOption storeOption, uint8 networkInterface=0)=0
	This operation sends requests to set the station names for multiple stations. More...

virtual std::vector< DcpResult >	SetIpAddresses (const std::vector< StationAddress > &stationAddresses, StoreOption storeOption, uint8 networkInterface=0)=0
	This operation sends requests to set the station network addresses for multiple stations. More...

virtual std::vector< DcpResult >	SendSignals (const std::vector< RscString< 18 > > &stationMacAddresses, uint8 networkInterface=0)=0
	This operation sends requests to let the station LEDs flash for 3s for multiple stations. More...

virtual std::vector< DcpResult >	ResetToFactoryDefault (const std::vector< RscString< 18 > > &stationMacAddresses, uint8 networkInterface=0)=0
	This operation sends requests to reset all station data for multiple stations. More...

virtual std::vector< DcpConfirmation >	GetDcpConfirmations (const std::vector< uint32 > &xids, uint8 networkInterface=0)=0
	This operation returns all exisiting confirmations for selected requests. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service enables sending DCP requests and retrieving confirmations.

Each service method allows to enter the network interface. The value can be retrieved by calling Arp.Io.ProfinetStack.System.Services.IConfigurationService.Read with the option name 'PnC.Interface' to get the PROFINET Controller interface or 'PnD.Interface' to get the PROFINET Device interface. If no interface is selected (networkInterface = 0) the PROFINET Controller interface is selected automatically.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

◆ GetDcpConfirmations()

virtual std::vector< DcpConfirmation > Arp::Io::ProfinetStack::System::Services::IDcpService::GetDcpConfirmations	(	const std::vector< uint32 > &	xids,
		uint8	networkInterface = `0`
	)

pure virtual

This operation returns all exisiting confirmations for selected requests.

Parameters

xids	xids that have bben returned in Arp.Io.ProfinetStack.System.Services.DcpResult on each request.
networkInterface	ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpConfirmation contains Arp.Io.ProfinetStack.System.Services.DcpResult and the confirmation data (for IdentifyAll requests).

◆ IdentifyAll()

virtual DcpResult Arp::Io::ProfinetStack::System::Services::IDcpService::IdentifyAll ( uint8 networkInterface = 0 )

pure virtual

This operation sends a request to identify all devices in a network.

Parameters

networkInterface ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpResult contains an error code and the xid that has to be used to retrieve the confirmation.

The operation can take up to 4s until all stations send a response.

◆ ResetToFactoryDefault()

virtual std::vector< DcpResult > Arp::Io::ProfinetStack::System::Services::IDcpService::ResetToFactoryDefault	(	const std::vector< RscString< 18 > > &	stationMacAddresses,
		uint8	networkInterface = `0`
	)

pure virtual

This operation sends requests to reset all station data for multiple stations.

Parameters

stationMacAddresses	Specifies the MAC addresses of the devices which shall be reset.
networkInterface	ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpResult contains an error code and the xid that has to be used to retrieve the confirmation for each request station.

The MAC address consists of 6 values that are separated by a ':'.

◆ SendSignals()

virtual std::vector< DcpResult > Arp::Io::ProfinetStack::System::Services::IDcpService::SendSignals	(	const std::vector< RscString< 18 > > &	stationMacAddresses,
		uint8	networkInterface = `0`
	)

pure virtual

This operation sends requests to let the station LEDs flash for 3s for multiple stations.

Parameters

stationMacAddresses	Specifies the MAC addresses of the devices for which the operation shall be executed
networkInterface	ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpResult contains an error code and the xid that has to be used to retrieve the confirmation for each request station.

The MAC address consists of 6 values that are separated by a ':'.

◆ SetIpAddresses()

virtual std::vector< DcpResult > Arp::Io::ProfinetStack::System::Services::IDcpService::SetIpAddresses	(	const std::vector< StationAddress > &	stationAddresses,
		StoreOption	storeOption,
		uint8	networkInterface = `0`
	)

pure virtual

This operation sends requests to set the station network addresses for multiple stations.

Parameters

stationAddresses	Contains the parameters to identify the stations and set the network addresses.
storeOption	Specifies whether the values shall be set permanently or not.
networkInterface	ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpResult contains an error code and the xid that has to be used to retrieve the confirmation for each request station.

◆ SetNames()

virtual std::vector< DcpResult > Arp::Io::ProfinetStack::System::Services::IDcpService::SetNames	(	const std::vector< Station > &	stations,
		StoreOption	storeOption,
		uint8	networkInterface = `0`
	)

pure virtual

This operation sends requests to set the station names for multiple stations.

Parameters

stations	Contains the parameters to identify the stations and set the names.
storeOption	Specifies whether the values shall be set permanently or not.
networkInterface	ID of the network interface.

Returns: Arp.Io.ProfinetStack.System.Services.DcpResult contains an error code and the xid that has to be used to retrieve the confirmation for each request station.

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/System/Services/IDcpService.hpp
