Contains information that are returned by a request. More...
#include <DcpResult.hpp>

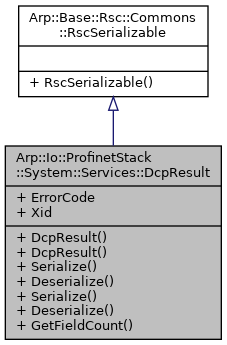

Inheritance diagram for Arp::Io::ProfinetStack::System::Services::DcpResult:
Public Member Functions | |
| DcpResult (void) | |
| Constructs an DcpResult instance. | |
| DcpResult (DcpErrorCode errorCode, uint32 xid) | |
| Constructs an DcpResult instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| DcpErrorCode | ErrorCode = static_cast<DcpErrorCode>(0) |
| Error code of request or confirmation. | |
| uint32 | Xid = 0 |
| The value is used to identify confirmation of a request. It is returned on a request and has to be used to retrieve confirmations using !:IDcpService.GetDcpConfirmations(byte, uint[]). | |
Detailed Description
Contains information that are returned by a request.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::DcpResult::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::DcpResult::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::DcpResult::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::DcpResult::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Io/ProfinetStack/System/Services/DcpResult.hpp
- Arp/Io/ProfinetStack/System/Services/DcpResult.cpp
