Contains DCP confirmation data of a station on a request. More...
#include <DcpConfirmation.hpp>

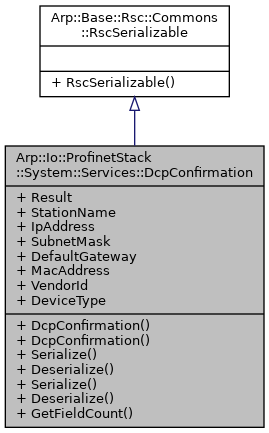

Inheritance diagram for Arp::Io::ProfinetStack::System::Services::DcpConfirmation:
Public Member Functions | |
| DcpConfirmation (void) | |
| Constructs an DcpConfirmation instance. | |
| DcpConfirmation (const DcpResult &result, const RscString< 240 > &stationName, const RscString< 40 > &ipAddress, const RscString< 16 > &subnetMask, const RscString< 16 > &defaultGateway, const RscString< 18 > &macAddress, uint16 vendorId, const RscString< 128 > &deviceType) | |
| Constructs an DcpConfirmation instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| DcpResult | Result |
| Contains information on the request. If an error code is set, there is no valid data. | |
| RscString< 240 > | StationName |
| Name of the station. | |
| RscString< 40 > | IpAddress |
| IP address of the station. | |
| RscString< 16 > | SubnetMask |
| Subnet mask of the station. | |
| RscString< 16 > | DefaultGateway |
| Default gateway of the station. | |
| RscString< 18 > | MacAddress |
| MAC address of the station. | |
| uint16 | VendorId = 0 |
| Vendor ID of the station. | |
| RscString< 128 > | DeviceType |
| Device type of the station. | |
Detailed Description
Contains DCP confirmation data of a station on a request.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::DcpConfirmation::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::DcpConfirmation::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::DcpConfirmation::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::DcpConfirmation::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Io/ProfinetStack/System/Services/DcpConfirmation.hpp
- Arp/Io/ProfinetStack/System/Services/DcpConfirmation.cpp
