Contains parameter to address and set a station network address. More...
#include <StationAddress.hpp>
Public Member Functions | |
| StationAddress (void) | |
| Constructs an StationAddress instance. | |
| StationAddress (const RscString< 40 > &ipAddress, const RscString< 16 > &subnetMask, const RscString< 16 > &defaultGateway, const RscString< 18 > &macAddress) | |
| Constructs an StationAddress instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |

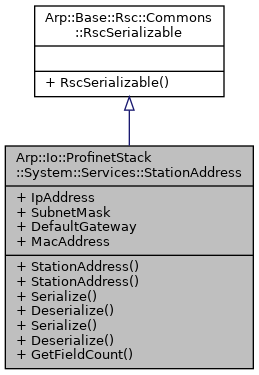

 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| RscString< 40 > | IpAddress |
| IP address that shall be assigned to a station. | |
| RscString< 16 > | SubnetMask |
| Subnet mask that shall be assigned to a station. | |
| RscString< 16 > | DefaultGateway |
| Default gateway that shall be assigned to a station. | |
| RscString< 18 > | MacAddress |
| MAC address of the station. More... | |
Detailed Description
Contains parameter to address and set a station network address.
If IpAddress, SubnetMask or DefaultGateway are not set, the value will be set to '0.0.0.0'.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::StationAddress::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::StationAddress::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Io::ProfinetStack::System::Services::StationAddress::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Io::ProfinetStack::System::Services::StationAddress::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Member Data Documentation
◆ MacAddress
| RscString<18> Arp::Io::ProfinetStack::System::Services::StationAddress::MacAddress |
MAC address of the station.
The MAC address consists of 6 values that are separated by a ':'.
The documentation for this class was generated from the following files:
- Arp/Io/ProfinetStack/System/Services/StationAddress.hpp
- Arp/Io/ProfinetStack/System/Services/StationAddress.cpp
