This class shall be used as a base class for all IO components. More...

#include <IoComponentBase.hpp>

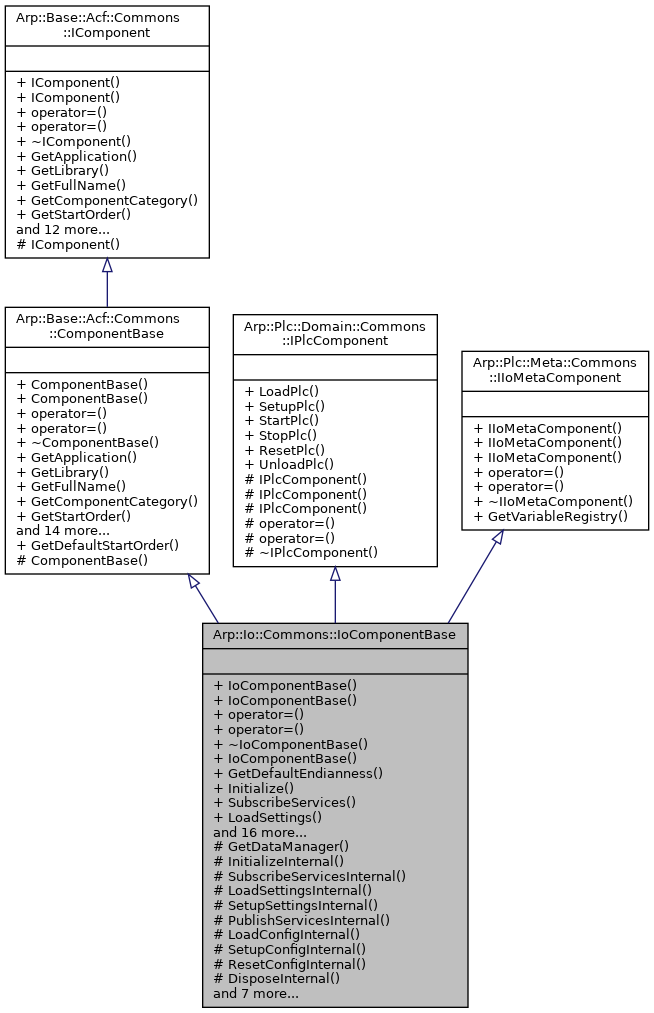

Inheritance diagram for Arp::Io::Commons::IoComponentBase:

Public Member Functions
	IoComponentBase (const IoComponentBase &arg)=delete

	IoComponentBase (IoComponentBase &&arg) noexcept
	The move constructor.

IoComponentBase &	operator= (const IoComponentBase &arg)=delete

IoComponentBase &	operator= (IoComponentBase &&arg) noexcept
	The move assignment operator.

	~IoComponentBase (void) override
	THe default destructor.

	IoComponentBase (IoLibraryBase &library, const String &fullName, Endianness endianness=Endianness::Current, uint32 startOrderOffset=0)
	Constructs an IoComponentBase instance. More...

Endianness	GetDefaultEndianness (void) const
	Returns the default endianness of the IO component. More...

void	Initialize (void) final
	Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration. More...

void	SubscribeServices (void) final
	Subscribes services required by this component. More...

void	LoadSettings (const String &settingsPath) final
	Loads components firmware settings. More...

void	SetupSettings (void) final
	Sets up components settings which were loaded in LoadSettings. More...

void	PublishServices (void) final
	Publishes components services. More...

void	LoadConfig (void) final
	Loads components project configuration. More...

void	SetupConfig (void) final
	Sets up components configuration which was loaded in LoadConfig. More...

void	ResetConfig (void) final
	Resets components project configuration. More...

void	Dispose (void) final
	Disposes this component. More...

void	PowerDown (void) final
	This operation is called on a power breakdown event and executes component specific actions when power get lost. More...

DcgResultInfo	LoadPlc (bool isChanging) final
	Loads the PLC project configuration of this component. More...

DcgResultInfo	SetupPlc (bool isChanging, PlcStartKind startKind) final

void	StartPlc (PlcStartKind startKind) final

void	StopPlc (void) final
	Stops this PLC component. More...

void	ResetPlc (bool isChanging, bool onError) final
	Resets the PLC project configuration of this component. More...

void	UnloadPlc (bool isChanging, bool onError) final
	Unloads the PLC project configuration of this component. More...

VariableRegistry &	GetVariableRegistry (void) final
	Returns the VariableRegistry of this component. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Base::Acf::Commons::ComponentBase
	ComponentBase (const ComponentBase &arg)=delete

	ComponentBase (ComponentBase &&arg) noexcept
	The default move constructor. More...

ComponentBase &	operator= (const ComponentBase &arg)=delete

ComponentBase &	operator= (ComponentBase &&arg) noexcept
	The default move-assignment operator. More...

	~ComponentBase (void) override
	The default destructor.

Application &	GetApplication (void) const final
	Gets the application instance of the actual process which loaded this component. More...

ILibrary &	GetLibrary (void) const final
	Gets the library instance of this component. More...

String	GetFullName (void) const final
	Gets the full qualified name of this component More...

ComponentCategory	GetComponentCategory (void) const final
	Gets the ComponentCategory of this component. More...

uint32	GetStartOrder (void) const final
	Gets the start order of this component. More...

bool	IsRequired (void) const override
	Determines if this component is required. More...

String	GetComponentInfoItem (ComponentInfoKind kind) const override
	Gets additional information about the component More...

void	Initialize (void) override
	Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration. More...

void	LoadSettings (const String &settingsPath) override
	Loads components firmware settings. More...

void	SetupSettings (void) override
	Sets up components settings which were loaded in LoadSettings. More...

void	SubscribeServices (void) override
	Subscribes services required by this component. More...

void	PublishServices (void) override
	Publishes components services. More...

void	LoadConfig (void) override
	Loads components project configuration. More...

void	SetupConfig (void) override
	Sets up components configuration which was loaded in LoadConfig. More...

void	ResetConfig (void) override
	Resets components project configuration. More...

void	Dispose (void) override
	Disposes this component. More...

void	PowerDown (void) override
	This operation is called on a power breakdown event and executes component specific actions when power get lost. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Base::Acf::Commons::IComponent
	IComponent (IComponent &&arg) noexcept=default
	The move constructor. More...

	IComponent (const IComponent &arg)=delete
	The copy constructor is deleted. More...

IComponent &	operator= (IComponent &&arg) noexcept=default
	The move assignment operator. More...

IComponent &	operator= (const IComponent &arg)=delete
	The copy assignment operator is deleted. More...

virtual	~IComponent (void)=default
	The virtual default destructor.

virtual Application &	GetApplication (void) const =0
	Gets the application instance of the actual process which loaded this component. More...

virtual ILibrary &	GetLibrary (void) const =0
	Gets the library instance of this component. More...

virtual String	GetFullName (void) const =0
	Gets the full qualified name of this component More...

virtual ComponentCategory	GetComponentCategory (void) const =0
	Gets the ComponentCategory of this component. More...

virtual uint32	GetStartOrder (void) const =0
	Gets the start order of this component. More...

virtual bool	IsRequired (void) const =0
	Determines if this component is required. More...

virtual String	GetComponentInfoItem (ComponentInfoKind kind) const =0
	Gets additional information about the component More...

virtual void	Initialize (void)=0
	Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration. More...

virtual void	SubscribeServices (void)=0
	Subscribes services required by this component. More...

virtual void	LoadSettings (const String &settingsPath)=0
	Loads components firmware settings. More...

virtual void	SetupSettings (void)=0
	Sets up components settings which were loaded in LoadSettings. More...

virtual void	PublishServices (void)=0
	Publishes components services. More...

virtual void	LoadConfig (void)=0
	Loads components project configuration. More...

virtual void	SetupConfig (void)=0
	Sets up components configuration which was loaded in LoadConfig. More...

virtual void	ResetConfig (void)=0
	Resets components project configuration. More...

virtual void	Dispose (void)=0
	Disposes this component. More...

virtual void	PowerDown (void)=0
	This operation is called on a power breakdown event and executes component specific actions when power get lost. More...

Public Member Functions inherited from Arp::Plc::Domain::Commons::IPlcComponent
virtual DcgResultInfo	LoadPlc (bool isChanging)=0
	Loads the PLC project configuration of this component. More...

virtual DcgResultInfo	SetupPlc (bool isChanging, PlcStartKind startKind)=0
	Sets up the PLC project configuration of this component. More...

virtual void	StartPlc (PlcStartKind startKind)=0
	Starts this PLC component using the specified start kind. More...

virtual void	StopPlc (void)=0
	Stops this PLC component. More...

virtual void	ResetPlc (bool isChanging, bool onError)=0
	Resets the PLC project configuration of this component. More...

virtual void	UnloadPlc (bool isChanging, bool onError)=0
	Unloads the PLC project configuration of this component. More...

Public Member Functions inherited from Arp::Plc::Meta::Commons::IIoMetaComponent
	IIoMetaComponent (void)=default
	Constructs an IIoMetaComponent instance.

	IIoMetaComponent (const IIoMetaComponent &arg)=default
	Copy constructor.

	IIoMetaComponent (IIoMetaComponent &&arg) noexcept=default
	Move constructor.

IIoMetaComponent &	operator= (const IIoMetaComponent &arg)=default
	Copy-assignment operator.

IIoMetaComponent &	operator= (IIoMetaComponent &&arg) noexcept=default
	Move-assignment operator.

virtual	~IIoMetaComponent (void)=default
	Destructs this instance and frees all resources.

virtual VariableRegistry &	GetVariableRegistry ()=0
	Gets the VariableRegistry of this component to provide meta data of this IO component. More...

Protected Member Functions
DataManager &	GetDataManager (void)
	Gets the data-manager of this component. More...

virtual void	InitializeInternal (void)
	This templated method is called from within Initialize. More...

virtual void	SubscribeServicesInternal (void)
	This templated method is called from within SubscribeServices More...

virtual void	LoadSettingsInternal (const String &settingsPath)
	This templated method is called from within LoadSettings More...

virtual void	SetupSettingsInternal (void)
	This templated method is called from within SetupSettings More...

virtual void	PublishServicesInternal (void)
	This templated method is called from within PublishServices More...

virtual void	LoadConfigInternal (void)
	This templated method is called from within LoadConfig More...

virtual void	SetupConfigInternal (void)
	This templated method is called from within SetupConfig More...

virtual void	ResetConfigInternal (void)
	This templated method is called from within ResetConfig More...

virtual void	DisposeInternal (void)
	This templated method is called from within Dispose More...

virtual void	PowerDownInternal (void)
	This templated method is called from within PowerDown More...

virtual DcgResultInfo	LoadPlcInternal (bool isChanging)
	This templated method is called from within LoadPlc. More...

virtual DcgResultInfo	SetupPlcInternal (bool isChanging, PlcStartKind startKind)
	This templated method is called from within SetupPlc More...

virtual void	StartPlcInternal (PlcStartKind startKind)
	This templated method is called from within StartPlc More...

virtual void	StopPlcInternal (void)
	This templated method is called from within StopPlc More...

virtual void	ResetPlcInternal (bool isChanging, bool onError)
	This templated method is called from within ResetPlc More...

virtual void	UnloadPlcInternal (bool isChanging, bool onError)
	This templated method is called from within UnloadPlc More...

Protected Member Functions inherited from Arp::Base::Acf::Commons::ComponentBase
	ComponentBase (ILibrary &library, const String &fullName, ComponentCategory category, uint32 startOrder)
	Constructs an ComponentBase instance. More...

Protected Member Functions inherited from Arp::Base::Acf::Commons::IComponent
	IComponent (void)=default
	The default constructor.

Protected Member Functions inherited from Arp::Plc::Domain::Commons::IPlcComponent
	IPlcComponent (void)=default
	Constructs an IPlcComponent instance.

	IPlcComponent (const IPlcComponent &arg)=default
	The deleted copy-constructor.

	IPlcComponent (IPlcComponent &&arg)=default
	The move-constructor.

IPlcComponent &	operator= (const IPlcComponent &arg)=default
	The deleted copy-assignment operator.

IPlcComponent &	operator= (IPlcComponent &&arg)=default
	The move-assignment operator.

virtual	~IPlcComponent (void)=default
	The destructor.

Additional Inherited Members
Public Types inherited from Arp::Base::Acf::Commons::IComponent
using	Ptr = std::shared_ptr< IComponent >
	The pointer type of this interface.

Public Types inherited from Arp::Plc::Domain::Commons::IPlcComponent
using	Ptr = std::shared_ptr< IPlcComponent >

Public Types inherited from Arp::Plc::Meta::Commons::IIoMetaComponent
using	Ptr = std::shared_ptr< IIoMetaComponent >

using	VariableRegistry = Arp::Plc::Meta::Commons::Io::VariableRegistry

Static Public Member Functions inherited from Arp::Base::Acf::Commons::ComponentBase
static uint32	GetDefaultStartOrder (void)
	Gets the default start order of a component which is DomainsStartOrder::Custom. More...

Detailed Description

This class shall be used as a base class for all IO components.

This class implements the interfaces IComponent, IPlcComponent and IIoMetaComponent. All interface methods are implemented directly by the base class and may not be overwritten by the IO component implementation. To implement IO component specific code please use the methods of IoComponentBase and override the ...Internal methods.

To support download-changes, the Plc operations should only check if the configuration has changed and if so, the operation should be refused by returning DcgResultInfo::CreateRefused(message).

The default endianness is used for all buffer that have no specific defined Endianness (Endianness::None). This should match the endianness of the underlying IO implementation/fieldbus.

Constructor & Destructor Documentation

◆ IoComponentBase()

Arp::Io::Commons::IoComponentBase::IoComponentBase	(	IoLibraryBase &	library,
		const String &	fullName,
		Endianness	endianness = `Endianness::Current`,
		uint32	startOrderOffset = `0`
	)

Constructs an IoComponentBase instance.

Parameters

library	The hosting io library instance of the component.
fullName	The full qualified name of the component.
endianness	Defines the default Endianness of the IO component. Data buffers with no explicit defined Endianness will use this endianness.
startOrderOffset	The relative start order of the component. This offset should usually be 0 and may not be greater or equal than 20. If several IO components have dependencies to each other, this value might be used to define an explicit start order.

The ComponentCategory is fixed to ComponentCategory::System

Member Function Documentation

◆ Dispose()

void Arp::Io::Commons::IoComponentBase::Dispose ( void )

finalvirtual

Disposes this component.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ DisposeInternal()

void Arp::Io::Commons::IoComponentBase::DisposeInternal ( void )

protectedvirtual

This templated method is called from within Dispose

The default implementation is just empty and might be overridden if required.

◆ GetDataManager()

DataManager & Arp::Io::Commons::IoComponentBase::GetDataManager ( void )

protected

Gets the data-manager of this component.

Returns: The data-manager of this component

◆ GetDefaultEndianness()

Endianness Arp::Io::Commons::IoComponentBase::GetDefaultEndianness ( void ) const

Returns the default endianness of the IO component.

Returns: The default Endianness of the IO component.

◆ GetVariableRegistry()

IoComponentBase::VariableRegistry & Arp::Io::Commons::IoComponentBase::GetVariableRegistry ( void )

finalvirtual

Returns the VariableRegistry of this component.

Returns: VariableRegistry of this component

Implements Arp::Plc::Meta::Commons::IIoMetaComponent.

◆ Initialize()

void Arp::Io::Commons::IoComponentBase::Initialize ( void )

finalvirtual

Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ InitializeInternal()

void Arp::Io::Commons::IoComponentBase::InitializeInternal ( void )

protectedvirtual

This templated method is called from within Initialize.

The default implementation is just empty and might be overridden if required.

◆ LoadConfig()

void Arp::Io::Commons::IoComponentBase::LoadConfig ( void )

finalvirtual

Loads components project configuration.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ LoadConfigInternal()

void Arp::Io::Commons::IoComponentBase::LoadConfigInternal ( void )

protectedvirtual

This templated method is called from within LoadConfig

The default implementation is just empty and might be overridden if required.

◆ LoadPlc()

DcgResultInfo Arp::Io::Commons::IoComponentBase::LoadPlc ( bool isChanging )

finalvirtual

Loads the PLC project configuration of this component.

Implements Arp::Plc::Domain::Commons::IPlcComponent.

◆ LoadPlcInternal()

DcgResultInfo Arp::Io::Commons::IoComponentBase::LoadPlcInternal ( bool isChanging )

protectedvirtual

This templated method is called from within LoadPlc.

Parameters

isChanging true, if download-changes is in process, otherwise false.

Returns: DcgResultInfo::CreateRefused("message") if isChanging is true but the change is not possible, otherwise DcgResultInfo::CreateSuccess().

The default implementation is just empty and might be overridden if required.

◆ LoadSettings()

void Arp::Io::Commons::IoComponentBase::LoadSettings ( const String & settingsPath )

finalvirtual

Loads components firmware settings.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ LoadSettingsInternal()

void Arp::Io::Commons::IoComponentBase::LoadSettingsInternal ( const String & settingsPath )

protectedvirtual

This templated method is called from within LoadSettings

The default implementation is just empty and might be overridden if required.

◆ PowerDown()

void Arp::Io::Commons::IoComponentBase::PowerDown ( void )

finalvirtual

This operation is called on a power breakdown event and executes component specific actions when power get lost.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ PowerDownInternal()

void Arp::Io::Commons::IoComponentBase::PowerDownInternal ( void )

protectedvirtual

This templated method is called from within PowerDown

The default implementation is just empty and might be overridden if required.

◆ PublishServices()

void Arp::Io::Commons::IoComponentBase::PublishServices ( void )

finalvirtual

Publishes components services.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ PublishServicesInternal()

void Arp::Io::Commons::IoComponentBase::PublishServicesInternal ( void )

protectedvirtual

This templated method is called from within PublishServices

The default implementation is just empty and might be overridden if required.

◆ ResetConfig()

void Arp::Io::Commons::IoComponentBase::ResetConfig ( void )

finalvirtual

Resets components project configuration.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ ResetConfigInternal()

void Arp::Io::Commons::IoComponentBase::ResetConfigInternal ( void )

protectedvirtual

This templated method is called from within ResetConfig

The default implementation is just empty and might be overridden if required.

◆ ResetPlc()

void Arp::Io::Commons::IoComponentBase::ResetPlc	(	bool	isChanging,
		bool	onError
	)

finalvirtual

Resets the PLC project configuration of this component.

Implements Arp::Plc::Domain::Commons::IPlcComponent.

◆ ResetPlcInternal()

void Arp::Io::Commons::IoComponentBase::ResetPlcInternal	(	bool	isChanging,
		bool	onError
	)

protectedvirtual

This templated method is called from within ResetPlc

Parameters

isChanging	`true`, if download-changes is in process, otherwise `false`.
onError	`true` if this operation is called after an error occurs, otherwise `false`.

The default implementation is just empty and might be overridden if required.

◆ SetupConfig()

void Arp::Io::Commons::IoComponentBase::SetupConfig ( void )

finalvirtual

Sets up components configuration which was loaded in LoadConfig.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ SetupConfigInternal()

void Arp::Io::Commons::IoComponentBase::SetupConfigInternal ( void )

protectedvirtual

This templated method is called from within SetupConfig

The default implementation is just empty and might be overridden if required.

◆ SetupPlcInternal()

DcgResultInfo Arp::Io::Commons::IoComponentBase::SetupPlcInternal	(	bool	isChanging,
		PlcStartKind	startKind
	)

protectedvirtual

This templated method is called from within SetupPlc

Parameters

isChanging true, if the download-changes is in process, otherwise false.

Returns: DcgResultInfo::CreateRefused("message") if isChanging is true but the change is not possible, otherwise DcgResultInfo::CreateSuccess().

The default implementation is just empty and might be overridden if required.

◆ SetupSettings()

void Arp::Io::Commons::IoComponentBase::SetupSettings ( void )

finalvirtual

Sets up components settings which were loaded in LoadSettings.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ SetupSettingsInternal()

void Arp::Io::Commons::IoComponentBase::SetupSettingsInternal ( void )

protectedvirtual

This templated method is called from within SetupSettings

The default implementation is just empty and might be overridden if required.

◆ StartPlcInternal()

void Arp::Io::Commons::IoComponentBase::StartPlcInternal ( PlcStartKind startKind )

protectedvirtual

This templated method is called from within StartPlc

Parameters

startKind The start kind to process (cold, warm, hot).

The default implementation is just empty and might be overridden if required.

◆ StopPlc()

void Arp::Io::Commons::IoComponentBase::StopPlc ( void )

finalvirtual

Stops this PLC component.

Implements Arp::Plc::Domain::Commons::IPlcComponent.

◆ StopPlcInternal()

void Arp::Io::Commons::IoComponentBase::StopPlcInternal ( void )

protectedvirtual

This templated method is called from within StopPlc

The default implementation is just empty and might be overridden if required.

◆ SubscribeServices()

void Arp::Io::Commons::IoComponentBase::SubscribeServices ( void )

finalvirtual

Subscribes services required by this component.

Reimplemented from Arp::Base::Acf::Commons::ComponentBase.

◆ SubscribeServicesInternal()

void Arp::Io::Commons::IoComponentBase::SubscribeServicesInternal ( void )

protectedvirtual

This templated method is called from within SubscribeServices

The default implementation is just empty and might be overridden if required.

◆ UnloadPlc()

void Arp::Io::Commons::IoComponentBase::UnloadPlc	(	bool	isChanging,
		bool	onError
	)

finalvirtual

Unloads the PLC project configuration of this component.

Implements Arp::Plc::Domain::Commons::IPlcComponent.

◆ UnloadPlcInternal()

void Arp::Io::Commons::IoComponentBase::UnloadPlcInternal	(	bool	isChanging,
		bool	onError
	)

protectedvirtual

This templated method is called from within UnloadPlc

Parameters

isChanging	`true`, if download-changes is in process, otherwise `false`.
onError	`true` if this operation is called after an error occurs, otherwise `false`.

The default implementation is just empty and might be overridden if required.

The documentation for this class was generated from the following files:

Arp/Io/Commons/IoComponentBase.hpp
Arp/Io/Commons/IoComponentBase.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IoComponentBase()

Member Function Documentation

◆ Dispose()

◆ DisposeInternal()

◆ GetDataManager()

◆ GetDefaultEndianness()

◆ GetVariableRegistry()

◆ Initialize()

◆ InitializeInternal()

◆ LoadConfig()

◆ LoadConfigInternal()

◆ LoadPlc()

◆ LoadPlcInternal()

◆ LoadSettings()

◆ LoadSettingsInternal()

◆ PowerDown()

◆ PowerDownInternal()

◆ PublishServices()

◆ PublishServicesInternal()

◆ ResetConfig()

◆ ResetConfigInternal()

◆ ResetPlc()

◆ ResetPlcInternal()

◆ SetupConfig()

◆ SetupConfigInternal()

◆ SetupPlcInternal()

◆ SetupSettings()

◆ SetupSettingsInternal()

◆ StartPlcInternal()

◆ StopPlc()

◆ StopPlcInternal()

◆ SubscribeServices()

◆ SubscribeServicesInternal()

◆ UnloadPlc()

◆ UnloadPlcInternal()
