Use this class as base class of all Acf components. More...

#include <ComponentBase.hpp>

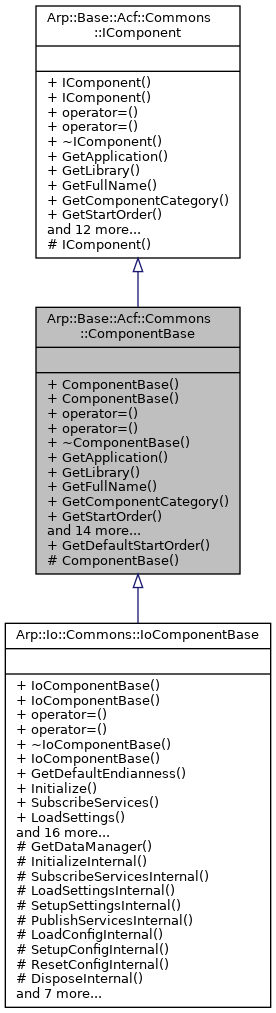

Inheritance diagram for Arp::Base::Acf::Commons::ComponentBase:

Public Member Functions
	ComponentBase (const ComponentBase &arg)=delete

	ComponentBase (ComponentBase &&arg) noexcept
	The default move constructor. More...

ComponentBase &	operator= (const ComponentBase &arg)=delete

ComponentBase &	operator= (ComponentBase &&arg) noexcept
	The default move-assignment operator. More...

	~ComponentBase (void) override
	The default destructor.

Application &	GetApplication (void) const final
	Gets the application instance of the actual process which loaded this component. More...

ILibrary &	GetLibrary (void) const final
	Gets the library instance of this component. More...

String	GetFullName (void) const final
	Gets the full qualified name of this component More...

ComponentCategory	GetComponentCategory (void) const final
	Gets the ComponentCategory of this component. More...

uint32	GetStartOrder (void) const final
	Gets the start order of this component. More...

bool	IsRequired (void) const override
	Determines if this component is required. More...

String	GetComponentInfoItem (ComponentInfoKind kind) const override
	Gets additional information about the component More...

void	Initialize (void) override
	Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration. More...

void	LoadSettings (const String &settingsPath) override
	Loads components firmware settings. More...

void	SetupSettings (void) override
	Sets up components settings which were loaded in LoadSettings. More...

void	SubscribeServices (void) override
	Subscribes services required by this component. More...

void	PublishServices (void) override
	Publishes components services. More...

void	LoadConfig (void) override
	Loads components project configuration. More...

void	SetupConfig (void) override
	Sets up components configuration which was loaded in LoadConfig. More...

void	ResetConfig (void) override
	Resets components project configuration. More...

void	Dispose (void) override
	Disposes this component. More...

void	PowerDown (void) override
	This operation is called on a power breakdown event and executes component specific actions when power get lost. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Base::Acf::Commons::IComponent
	IComponent (IComponent &&arg) noexcept=default
	The move constructor. More...

	IComponent (const IComponent &arg)=delete
	The copy constructor is deleted. More...

IComponent &	operator= (IComponent &&arg) noexcept=default
	The move assignment operator. More...

IComponent &	operator= (const IComponent &arg)=delete
	The copy assignment operator is deleted. More...

virtual	~IComponent (void)=default
	The virtual default destructor.

virtual Application &	GetApplication (void) const =0
	Gets the application instance of the actual process which loaded this component. More...

virtual ILibrary &	GetLibrary (void) const =0
	Gets the library instance of this component. More...

virtual String	GetFullName (void) const =0
	Gets the full qualified name of this component More...

virtual ComponentCategory	GetComponentCategory (void) const =0
	Gets the ComponentCategory of this component. More...

virtual uint32	GetStartOrder (void) const =0
	Gets the start order of this component. More...

virtual bool	IsRequired (void) const =0
	Determines if this component is required. More...

virtual String	GetComponentInfoItem (ComponentInfoKind kind) const =0
	Gets additional information about the component More...

virtual void	Initialize (void)=0
	Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration. More...

virtual void	SubscribeServices (void)=0
	Subscribes services required by this component. More...

virtual void	LoadSettings (const String &settingsPath)=0
	Loads components firmware settings. More...

virtual void	SetupSettings (void)=0
	Sets up components settings which were loaded in LoadSettings. More...

virtual void	PublishServices (void)=0
	Publishes components services. More...

virtual void	LoadConfig (void)=0
	Loads components project configuration. More...

virtual void	SetupConfig (void)=0
	Sets up components configuration which was loaded in LoadConfig. More...

virtual void	ResetConfig (void)=0
	Resets components project configuration. More...

virtual void	Dispose (void)=0
	Disposes this component. More...

virtual void	PowerDown (void)=0
	This operation is called on a power breakdown event and executes component specific actions when power get lost. More...

Static Public Member Functions
static uint32	GetDefaultStartOrder (void)
	Gets the default start order of a component which is DomainsStartOrder::Custom. More...

Protected Member Functions
	ComponentBase (ILibrary &library, const String &fullName, ComponentCategory category, uint32 startOrder)
	Constructs an ComponentBase instance. More...

Protected Member Functions inherited from Arp::Base::Acf::Commons::IComponent
	IComponent (void)=default
	The default constructor.

Additional Inherited Members
Public Types inherited from Arp::Base::Acf::Commons::IComponent
using	Ptr = std::shared_ptr< IComponent >
	The pointer type of this interface.

Detailed Description

Use this class as base class of all Acf components.

This class provides some basic component functionality and implements all operations of the IComponent interface at least with an empty implementation.

Constructor & Destructor Documentation

◆ ComponentBase() [1/2]

Arp::Base::Acf::Commons::ComponentBase::ComponentBase	(	ILibrary &	library,
		const String &	fullName,
		ComponentCategory	category,
		uint32	startOrder
	)

protected

Constructs an ComponentBase instance.

Parameters

library	The library instance of the project.
fullName	The full qualified name of the component.
category	The category of the component.
startOrder	The system start order of the component,
isSingleton	Determines if this component is a singleton component, i.e. it shall be instantiated just once.

◆ ComponentBase() [2/2]

Arp::Base::Acf::Commons::ComponentBase::ComponentBase ( ComponentBase && arg )

defaultnoexcept

The default move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

◆ Dispose()

void Arp::System::Acf::ComponentBase::Dispose ( void )

overridevirtual

Disposes this component.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ GetApplication()

Application & Arp::Base::Acf::Commons::ComponentBase::GetApplication ( void ) const

finalvirtual

Gets the application instance of the actual process which loaded this component.

Implements Arp::Base::Acf::Commons::IComponent.

◆ GetComponentCategory()

ComponentCategory Arp::Base::Acf::Commons::ComponentBase::GetComponentCategory ( void ) const

finalvirtual

Gets the ComponentCategory of this component.

Implements Arp::Base::Acf::Commons::IComponent.

◆ GetComponentInfoItem()

String Arp::Base::Acf::Commons::ComponentBase::GetComponentInfoItem ( ComponentInfoKind kind ) const

overridevirtual

Gets additional information about the component

Implements Arp::Base::Acf::Commons::IComponent.

◆ GetDefaultStartOrder()

uint32 Arp::System::Acf::ComponentBase::GetDefaultStartOrder ( void )

static

Gets the default start order of a component which is DomainsStartOrder::Custom.

Returns: The default start order.

◆ GetFullName()

String Arp::Base::Acf::Commons::ComponentBase::GetFullName ( void ) const

finalvirtual

Gets the full qualified name of this component

Implements Arp::Base::Acf::Commons::IComponent.

◆ GetImpl()

const ComponentBase::Impl & Arp::Base::Acf::Commons::ComponentBase::GetImpl ( void )

For internal use only.

Returns: The implementation instance of this instance.

◆ GetLibrary()

ILibrary & Arp::Base::Acf::Commons::ComponentBase::GetLibrary ( void ) const

finalvirtual

Gets the library instance of this component.

Implements Arp::Base::Acf::Commons::IComponent.

◆ GetStartOrder()

uint32 Arp::Base::Acf::Commons::ComponentBase::GetStartOrder ( void ) const

finalvirtual

Gets the start order of this component.

Implements Arp::Base::Acf::Commons::IComponent.

◆ Initialize()

void Arp::System::Acf::ComponentBase::Initialize ( void )

overridevirtual

Initializes this component: creates singletons, makes any registrations, creates any resources not depending on settings or configuration.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ IsRequired()

bool Arp::Base::Acf::Commons::ComponentBase::IsRequired ( void ) const

overridevirtual

Determines if this component is required.

Implements Arp::Base::Acf::Commons::IComponent.

◆ LoadConfig()

void Arp::System::Acf::ComponentBase::LoadConfig ( void )

overridevirtual

Loads components project configuration.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ LoadSettings()

void Arp::System::Acf::ComponentBase::LoadSettings ( const String & settingsPath )

overridevirtual

Loads components firmware settings.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ operator=()

ComponentBase & Arp::Base::Acf::Commons::ComponentBase::operator= ( ComponentBase && arg )

defaultnoexcept

The default move-assignment operator.

Parameters

arg	The argument to move.

Returns: This instance.

◆ PowerDown()

void Arp::System::Acf::ComponentBase::PowerDown ( void )

overridevirtual

This operation is called on a power breakdown event and executes component specific actions when power get lost.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ PublishServices()

void Arp::System::Acf::ComponentBase::PublishServices ( void )

overridevirtual

Publishes components services.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ ResetConfig()

void Arp::System::Acf::ComponentBase::ResetConfig ( void )

overridevirtual

Resets components project configuration.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ SetupConfig()

void Arp::System::Acf::ComponentBase::SetupConfig ( void )

overridevirtual

Sets up components configuration which was loaded in LoadConfig.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ SetupSettings()

void Arp::System::Acf::ComponentBase::SetupSettings ( void )

overridevirtual

Sets up components settings which were loaded in LoadSettings.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

◆ SubscribeServices()

void Arp::System::Acf::ComponentBase::SubscribeServices ( void )

overridevirtual

Subscribes services required by this component.

Implements Arp::Base::Acf::Commons::IComponent.

Reimplemented in Arp::Io::Commons::IoComponentBase.

The documentation for this class was generated from the following files:

Arp/Base/Acf/Commons/ComponentBase.hpp
Arp/Base/Acf/Commons/ComponentBase.cpp
Arp/System/Acf/ComponentBase.cpp
