Arp::Base::Acf::Commons::ILibrary Class Reference

Any Acf Library shall implement this interface. More...

#include <ILibrary.hpp>

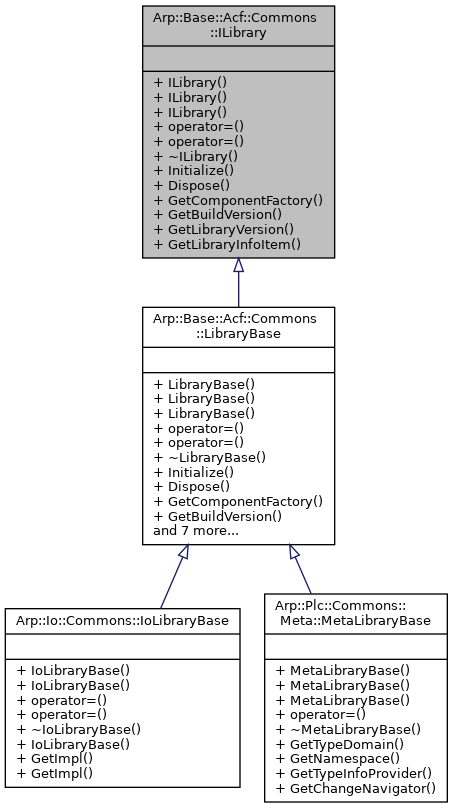

Inheritance diagram for Arp::Base::Acf::Commons::ILibrary:

Public Types
using	MainEntry = ILibrary &(*)(void)
	This is the prototype of the main entry point of any Arp library which shall be loaded dynamically by the Acf. More...

Public Member Functions
	ILibrary (void)=default
	The default constructor.
	ILibrary (ILibrary &&arg) noexcept=default
	The move constructor. More...
	ILibrary (const ILibrary &arg)=delete
	The copy constructor is deleted. More...
ILibrary &	operator= (ILibrary &&arg) noexcept=default
	The move assignment operator. More...
ILibrary &	operator= (const ILibrary &arg)=delete
	The copy assignment operator is deleted. More...
virtual	~ILibrary (void)=default
	The virtual default destructor.
virtual void	Initialize (void)=0
	Initializes this library. More...
virtual void	Dispose (void)=0
	Disposes this library. More...
virtual IComponentFactory &	GetComponentFactory (void)=0
	Gets the component factory of this library to create instances of its provided components. More...
virtual const ArpVersion &	GetBuildVersion (void) const =0
	Gets the version of the firmware or SDK which was used to build the shared library. More...
virtual const ArpVersion &	GetLibraryVersion (void) const =0
	Gets the version of the library provided by its author. More...
virtual String	GetLibraryInfoItem (LibraryInfoKind kind) const =0
	Gets additional information about the library More...

Detailed Description

Any Acf Library shall implement this interface.

Any dynamic shared library which might be loaded by the Acf infrastructure must provide a library instance implementing this interface, which serves as entry point to the shared library code.

Member Typedef Documentation

MainEntry

using Arp::Base::Acf::Commons::ILibrary::MainEntry = ILibrary & (*)(void)

This is the prototype of the main entry point of any Arp library which shall be loaded dynamically by the Acf.

Any Acf library must export a function called ArpDynamicLibraryMain matching this prototype, which is declared as extern "C" to avoid name mangling through the compiler.

Constructor & Destructor Documentation

ILibrary() [1/2]

Arp::Base::Acf::Commons::ILibrary::ILibrary ( ILibrary &&  arg )

defaultnoexcept

The move constructor.

Parameters

arg	The argument to move.

ILibrary() [2/2]

Arp::Base::Acf::Commons::ILibrary::ILibrary ( const ILibrary &  arg )

delete

The copy constructor is deleted.

Parameters

arg	The argument to copy.

Member Function Documentation

Dispose()

virtual void Arp::Base::Acf::Commons::ILibrary::Dispose ( void  )

pure virtual

Disposes this library.

This operation is called before unloading the library by Acf. Implement this operation if special tasks are required before the shared library is unloaded.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

GetBuildVersion()

virtual const ArpVersion & Arp::Base::Acf::Commons::ILibrary::GetBuildVersion ( void  ) const

pure virtual

Gets the version of the firmware or SDK which was used to build the shared library.

Returns

The Arp build version used to build the shared library.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

GetComponentFactory()

virtual IComponentFactory & Arp::Base::Acf::Commons::ILibrary::GetComponentFactory ( void  )

pure virtual

Gets the component factory of this library to create instances of its provided components.

Returns

The component factory of this library.

Any dynamic shared library has a component factory to create component instances dynamically which are configured through Acf configuration.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

GetLibraryInfoItem()

virtual String Arp::Base::Acf::Commons::ILibrary::GetLibraryInfoItem ( LibraryInfoKind  kind ) const

pure virtual

Gets additional information about the library

Parameters

kind	Kind of information to get

Returns

String of the requested information. Empty string if kind is not found.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

GetLibraryVersion()

virtual const ArpVersion & Arp::Base::Acf::Commons::ILibrary::GetLibraryVersion ( void  ) const

pure virtual

Gets the version of the library provided by its author.

Returns

The version of the library.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

Initialize()

virtual void Arp::Base::Acf::Commons::ILibrary::Initialize ( void  )

pure virtual

Initializes this library.

This operation is called after loading the library by Acf. Implement this operation if special tasks are required when the shared library was loaded.

Implemented in Arp::Base::Acf::Commons::LibraryBase.

operator=() [1/2]

ILibrary & Arp::Base::Acf::Commons::ILibrary::operator= ( const ILibrary &  arg )

delete

The copy assignment operator is deleted.

Parameters

arg	The argument to copy.

Returns

This instance.

operator=() [2/2]

ILibrary & Arp::Base::Acf::Commons::ILibrary::operator= ( ILibrary &&  arg )

defaultnoexcept

The move assignment operator.

Parameters

arg	The argument to move.

Returns

This instance.

---

The documentation for this class was generated from the following file:

• Arp/Base/Acf/Commons/ILibrary.hpp
