PLCnext API Documentation 25.0.2.69
Public Member Functions | List of all members
Arp::Io::Commons::IoLibraryBase Class Reference

Base class for libraries of IO components More...

#include <IoLibraryBase.hpp>

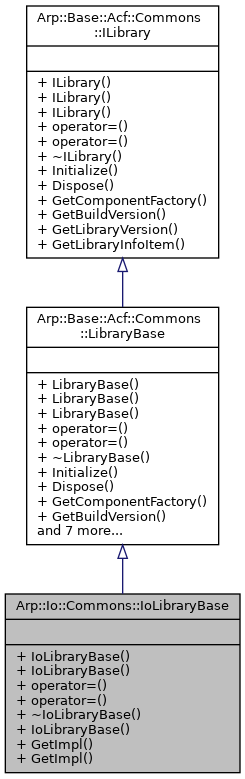

Inheritance diagram for Arp::Io::Commons::IoLibraryBase:
Inheritance graph

Public Member Functions

 IoLibraryBase (const IoLibraryBase &arg)=delete

 IoLibraryBase (IoLibraryBase &&arg) noexcept=delete

IoLibraryBaseoperator= (const IoLibraryBase &arg)=delete

IoLibraryBaseoperator= (IoLibraryBase &&arg) noexcept=delete

 ~IoLibraryBase (void) override
 Default destructor.

 IoLibraryBase (const ArpVersion &libraryVersion)
 Constructs an IoLibraryBase instance. More...

Impl & GetImpl (void)
 For internal use only.

const Impl & GetImpl (void) const

- Public Member Functions inherited from Arp::Base::Acf::Commons::LibraryBase
 LibraryBase (const ArpVersion &libraryVersion=ArpVersion{})
 Constructs a LibraryBase instance. More...

 LibraryBase (const LibraryBase &arg)=delete

 LibraryBase (LibraryBase &&arg) noexcept
 The default move constructor. More...

LibraryBaseoperator= (const LibraryBase &arg)=delete

LibraryBaseoperator= (LibraryBase &&arg) noexcept
 The default move-assignment operator. More...

 ~LibraryBase (void) override
 The default destructor.

void Initialize (void) override
 Initializes this library. More...

void Dispose (void) override
 Disposes this library. More...

IComponentFactoryGetComponentFactory (void) override
 Gets the component factory of this library to create instances of its provided components. More...

const ArpVersionGetBuildVersion (void) const override
 Gets the version of the firmware or SDK which was used to build the shared library. More...

const ArpVersionGetLibraryVersion (void) const override
 Gets the version of the library provided by its author. More...

String GetLibraryInfoItem (LibraryInfoKind kind) const override
 Gets additional information about the library More...

template<class T >
void AddComponentType (void)
 Registers a type of a component of this library. More...

template<class T >
void RegisterComponentType (void)
 Registers a type of a component of this library. More...

template<class T >
void RegisterComponentType (const String &typeName)
 Registers a type of a component of this library. More...

Impl & GetImpl (void)
 For internal use only. More...

const Impl & GetImpl (void) const

- Public Member Functions inherited from Arp::Base::Acf::Commons::ILibrary
 ILibrary (void)=default
 The default constructor.

 ILibrary (ILibrary &&arg) noexcept=default
 The move constructor. More...

 ILibrary (const ILibrary &arg)=delete
 The copy constructor is deleted. More...

ILibraryoperator= (ILibrary &&arg) noexcept=default
 The move assignment operator. More...

ILibraryoperator= (const ILibrary &arg)=delete
 The copy assignment operator is deleted. More...

virtual ~ILibrary (void)=default
 The virtual default destructor.

virtual void Initialize (void)=0
 Initializes this library. More...

virtual void Dispose (void)=0
 Disposes this library. More...

virtual IComponentFactoryGetComponentFactory (void)=0
 Gets the component factory of this library to create instances of its provided components. More...

virtual const ArpVersionGetBuildVersion (void) const =0
 Gets the version of the firmware or SDK which was used to build the shared library. More...

virtual const ArpVersionGetLibraryVersion (void) const =0
 Gets the version of the library provided by its author. More...

virtual String GetLibraryInfoItem (LibraryInfoKind kind) const =0
 Gets additional information about the library More...


Additional Inherited Members

- Public Types inherited from Arp::Base::Acf::Commons::LibraryBase
using FactoryMethod = IComponentFactory::FactoryMethod
 The prototype of the component factory method.

using FactoryMethodCompat = IComponentFactory::FactoryMethodCompat
 The deprecated prototype of the component factory method.

- Public Types inherited from Arp::Base::Acf::Commons::ILibrary
using MainEntry = ILibrary &(*)(void)
 This is the prototype of the main entry point of any Arp library which shall be loaded dynamically by the Acf. More...


Detailed Description

Base class for libraries of IO components

Constructor & Destructor Documentation

◆ IoLibraryBase()

Arp::Io::Commons::IoLibraryBase::IoLibraryBase ( const ArpVersion libraryVersion)
explicit

Constructs an IoLibraryBase instance.

Parameters
libraryVersionVersion of this library
libraryNamespaceNamespace of the library.

The documentation for this class was generated from the following files:
