This class is the base class for all predefined Tic elements. More...

#include <TicBase.hpp>

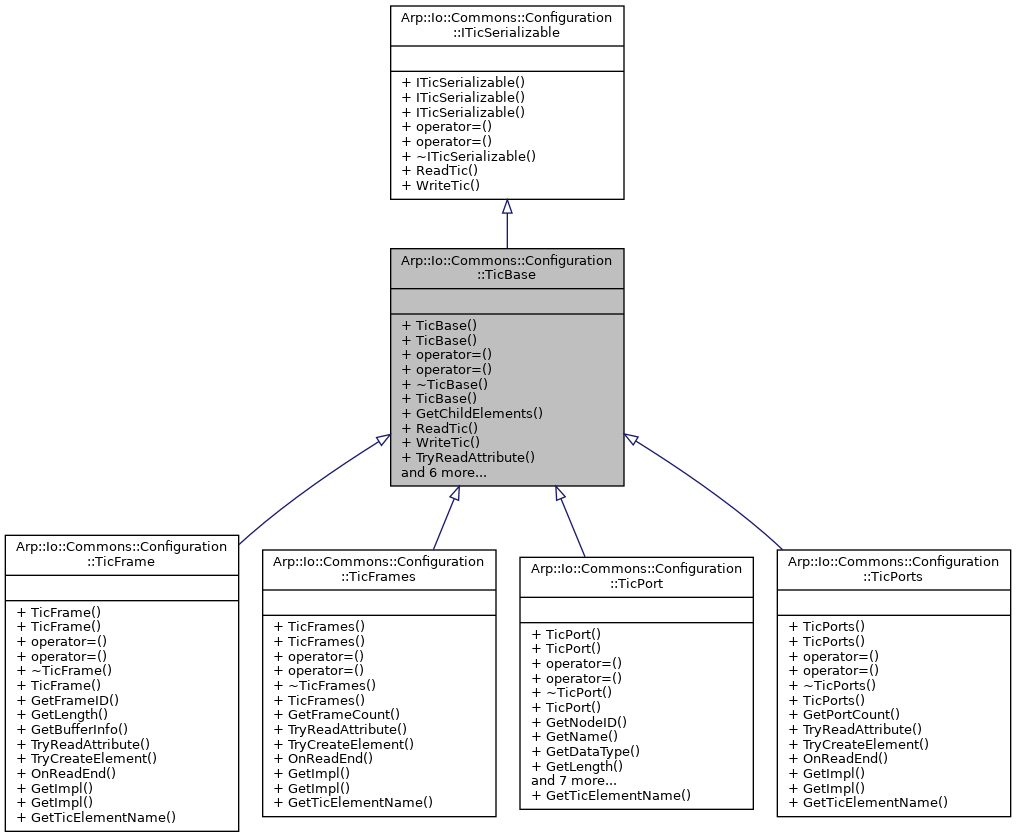

Inheritance diagram for Arp::Io::Commons::Configuration::TicBase:

Public Types
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Detailed Description

This class is the base class for all predefined Tic elements.

TicBase reads one tic element. Currently only read operations are implemented. All read sub-elements are stored as child elements as separate instances of type ITicSerializable.

The virtual methods TryReadAttribute, TryCreateElement and OnReadEnd have to be specialized by a derived class to read specific attributes and sub-elements.

For every read attribute from the attribute list it calls TryReadAttribute. This methods should read the attribute value and return true, except if the value is unknown or should not be evaluated, then false has to be returned. In this case TicBase skips the value.

For every read sub-element the factory method TryCreateElement is called. If the sub-element is known, the method shall create a new instance of ITicSerializable and returns true. If the subelement is unknown or should be skipped false shall be returned.

After all attributes and sub-element have been read, the method OnReadEnd will be called. This method should be used, to do some post processing and validation checks. Here could be checked for example, if all mandatory attributes has been read.

Member Function Documentation

◆ GetChildElements()

const TicBase::ChildElements & Arp::Io::Commons::Configuration::TicBase::GetChildElements ( void ) const

Returns all childs of this element.

Returns: The childs of this element.

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicBase::OnReadEnd ( void )

virtual

Validates the content of the current element.

This method is called after all sub-elements and attributes have been read. It might be used to check if all mandatory elements/attributes have been read and are valid.

Reimplemented in Arp::Io::Commons::Configuration::TicPorts, Arp::Io::Commons::Configuration::TicFrame, Arp::Io::Commons::Configuration::TicFrames, and Arp::Io::Commons::Configuration::TicPort.

◆ ReadTic()

void Arp::Io::Commons::Configuration::TicBase::ReadTic ( TicReader & reader )

finalvirtual

This operation shall be implemented by all classes which should read its context from Tic files.

This method reads the base structure of the current Tic element. It reads the attribute and element list. For every read attribute the method TryReadAttribute is called, to read its content. For every child element a child shall be created by using the factory method TryCreateElement. After all attributes and elements are evaluated the method OnReadEnd is called to check the consistency of the read element.

Parameters

reader The TicReader to read the Tic content from.

Implements Arp::Io::Commons::Configuration::ITicSerializable.

◆ TryCreateCustomElement()

bool Arp::Io::Commons::Configuration::TicBase::TryCreateCustomElement	(	const String &	elementName,
		ChildPtr &	result
	)

virtual

Factory method to create child elements.

Parameters

elementName	Name of the child element to create.
result	The created child element.

Returns: true if the element was created, false if the element should be skipped.

The default implementation of this class always returns false to skip all elements besides a Tic frames element. If a Tic frames element (called 'IO:Frames') is read, an element of type TicFrames is created by default. This method returns false by default and should be overloaded by a cunstomized tic element class if needed.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicBase::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

virtual

Factory method to create child elements.

Parameters

elementName	Name of the child element to create.
result	The created child element.

Returns: true if the element was created, false if the element should be skipped.

The default implementation of this class always returns false to skip all elements besides a Tic frames element. If a Tic frames element (called 'IO:Frames') is read, an element of type TicFrames is created by default.

Reimplemented in Arp::Io::Commons::Configuration::TicFrame, Arp::Io::Commons::Configuration::TicFrames, Arp::Io::Commons::Configuration::TicPort, and Arp::Io::Commons::Configuration::TicPorts.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicBase::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

virtual

This operation is called every time an attribute is read.

This operation should read the attribute value from the given TicReader. If the element should not be processed, the method shall return false to skip the read attribute.

Parameters

reader	The TicReader to read the Tic content from.
attributeName	Name of the attribute to read.

Returns: true if the value could be read, or false if the attribute should be skipped.

The default implementation in this class always returns false to skip all attributes.

Reimplemented in Arp::Io::Commons::Configuration::TicFrame, Arp::Io::Commons::Configuration::TicFrames, Arp::Io::Commons::Configuration::TicPort, and Arp::Io::Commons::Configuration::TicPorts.

◆ TryReadCustomAttribute()

bool Arp::Io::Commons::Configuration::TicBase::TryReadCustomAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

virtual

This operation is called every time an attribute is read.

This operation should read the custom attribute value from the given TicReader. If the element should not be processed, the method shall return false to skip the read attribute. This method returns false by default and should be overloaded by a cunstomized tic element class if needed.

Parameters

reader	The TicReader to read the Tic content from.
attributeName	Name of the attribute to read.

Returns: true if the value could be read, or false if the attribute should be skipped.

The default implementation in this class always returns false to skip all attributes.

◆ WriteTic()

void Arp::Io::Commons::Configuration::TicBase::WriteTic ( TicWriter & writer )

finalvirtual

This method is currently not implemented and should not be used.

Exceptions

NotImplementedException Always.

Implements Arp::Io::Commons::Configuration::ITicSerializable.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicBase.hpp
Arp/Io/Commons/Configuration/TicBase.cpp
