This class is used to read and store a single Tic frames element called IO:Frames. More...

#include <TicFrames.hpp>

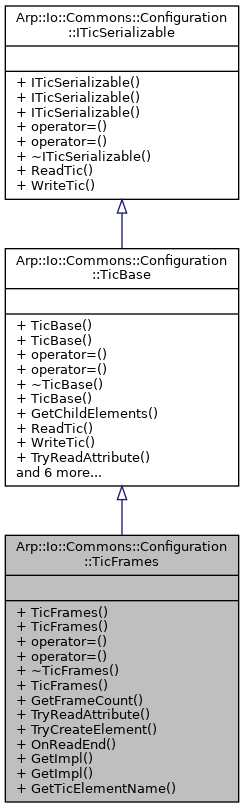

Inheritance diagram for Arp::Io::Commons::Configuration::TicFrames:

Public Types
using	Ptr = std::shared_ptr< TicFrames >

Public Types inherited from Arp::Io::Commons::Configuration::TicBase
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicFrames (const TicFrames &arg)=delete

	TicFrames (TicFrames &&arg) noexcept
	Default move constructor.

TicFrames &	operator= (const TicFrames &arg)=delete

TicFrames &	operator= (TicFrames &&arg) noexcept
	Default move-assignment operator.

	~TicFrames (void) override
	Default destructor.

	TicFrames (void)
	Default constructor.

size_t	GetFrameCount (void) const
	Returns the frame count. More...

bool	TryReadAttribute (TicReader &reader, const String &attributeName) final
	This operation is called every time an attribute is read, to read the attributes content. More...

bool	TryCreateElement (const String &elementName, ChildPtr &result) final
	Factory method to create a child element. More...

void	OnReadEnd (void) override
	Validation method. The default implementation checks the frame count with the count of read frame elements. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::TicBase
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Static Public Member Functions
static const char *	GetTicElementName (void)
	Returns the Tic name of this element called IO:Frames. More...

Detailed Description

This class is used to read and store a single Tic frames element called IO:Frames.

By default this class reads the Tic attribute FrameCount. To add custom attributes, the operation TryReadCustomAttribute needs to be overloaded by a derived class.

The factory method TryCreateCustomElement can be used to create custom sub-elements. The default implementation in this class creates an instance of the type TicFrame for the Tic element IO:Frame.

Member Function Documentation

◆ GetFrameCount()

size_t Arp::Io::Commons::Configuration::TicFrames::GetFrameCount ( void ) const

Returns the frame count.

Returns: The frame count.

◆ GetTicElementName()

const char * Arp::Io::Commons::Configuration::TicFrames::GetTicElementName ( void )

static

Returns the Tic name of this element called IO:Frames.

Returns: IO:Frames

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicFrames::OnReadEnd ( void )

overridevirtual

Validation method. The default implementation checks the frame count with the count of read frame elements.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicFrames::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

finalvirtual

Factory method to create a child element.

Parameters

elementName	The name of the child element to create.
result	The new created child element.

Returns: true if element was created, otherwise false if element was skipped.

If a Tic frame element IO:Frame is read, an element of type TicFrame is created by default.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicFrames::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

finalvirtual

This operation is called every time an attribute is read, to read the attributes content.

This operation reads the value of the attribute from the given TicReader. If the containing element should not be processed, the operation returns false to skip the attribute.

Parameters

reader	The TicReader to read the attribute value from.
attributeName	The name of the attribute to read.

Returns: true if the attribute value has been read, otherwise false if the attribute was skipped.

This operation reads the attribute FrameCount by default.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicFrames.hpp
Arp/Io/Commons/Configuration/TicFrames.cpp
