This class is used to read and store a single Tic frame element called IO:Frame. More...

#include <TicFrame.hpp>

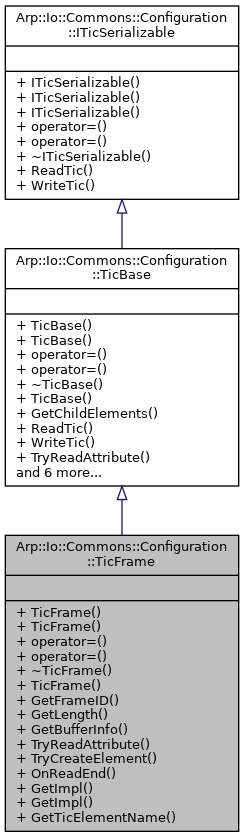

Inheritance diagram for Arp::Io::Commons::Configuration::TicFrame:

Public Types
using	Ptr = std::shared_ptr< TicFrame >

using	ConstPtr = std::shared_ptr< const TicFrame >

using	PortPtr = std::shared_ptr< TicPort >

using	BufferInfo = Arp::Io::Commons::Data::BufferInfo

using	BitSize = Arp::Plc::Meta::Commons::BitSize

Public Types inherited from Arp::Io::Commons::Configuration::TicBase
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicFrame (const TicFrame &arg)=delete

	TicFrame (TicFrame &&arg) noexcept
	Default move constructor.

TicFrame &	operator= (const TicFrame &arg)=delete

TicFrame &	operator= (TicFrame &&arg) noexcept
	Default move-assignment operator.

	~TicFrame (void) override
	Default destructor.

	TicFrame (void)
	Default constructor.

const String &	GetFrameID (void) const noexcept
	Returns the FrameId of this Tic frame. More...

BitSize	GetLength (void) const noexcept
	Returns the length of this Tic frame. More...

const BufferInfo &	GetBufferInfo (void) const
	Returns the BufferInfo instance of this Tic frame. More...

bool	TryReadAttribute (TicReader &reader, const String &attributeName) final
	This operation is called every time an attribute is read, to read the attributes content. More...

bool	TryCreateElement (const String &elementName, ChildPtr &result) final
	Factory method to create child elements. More...

void	OnReadEnd (void) override
	Validation method. The default implementation is just empty. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::TicBase
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Static Public Member Functions
static const char *	GetTicElementName (void)
	Returns the Tic name of this element called IO:Frame. More...

Detailed Description

This class is used to read and store a single Tic frame element called IO:Frame.

By default this class reads the Tic attributes FrameID and Length. To add custom attributes, the method TryReadCustomAttribute needs to be overloaded by a derived class.

The factory method TryCreateCustomElement can be overloaded to create custom sub-elements. The default implementation of this class creates an instance of the type TicPorts for the Tic elements called IO:Ports.

Member Function Documentation

◆ GetBufferInfo()

const TicFrame::BufferInfo & Arp::Io::Commons::Configuration::TicFrame::GetBufferInfo ( void ) const

Returns the BufferInfo instance of this Tic frame.

Returns: The BufferInfo instance.

◆ GetFrameID()

const String & Arp::Io::Commons::Configuration::TicFrame::GetFrameID ( void ) const

noexcept

Returns the FrameId of this Tic frame.

Returns: The FrameId

◆ GetLength()

TicFrame::BitSize Arp::Io::Commons::Configuration::TicFrame::GetLength ( void ) const

noexcept

Returns the length of this Tic frame.

Returns: The length as BitSize

◆ GetTicElementName()

const char * Arp::Io::Commons::Configuration::TicFrame::GetTicElementName ( void )

static

Returns the Tic name of this element called IO:Frame.

Returns: IO:Frame

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicFrame::OnReadEnd ( void )

overridevirtual

Validation method. The default implementation is just empty.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicFrame::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

finalvirtual

Factory method to create child elements.

Parameters

elementName	Name of the child to create.
result	The created child element.

Returns: true if the child element was created, otherwise false if the element should be skipped.

If a Tic ports element called IO:Ports is read, an element of type TicPorts is created by default.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicFrame::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

finalvirtual

This operation is called every time an attribute is read, to read the attributes content.

This operation reads the value of the attribute from the given TicReader. If the containing element should not be processed, the operation returns false to skip the attribute.

Parameters

reader	The TicReader to read the attribute value from.
attributeName	The name of the attribute to read.

Returns: true if the attribute value has been read, otherwise false if the attribute was skipped.

This operation reads the attributes FrameID and Length by default.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicFrame.hpp
Arp/Io/Commons/Configuration/TicFrame.cpp
