This class is used to read and store a single Tic port element called IO:Port. More...

#include <TicPort.hpp>

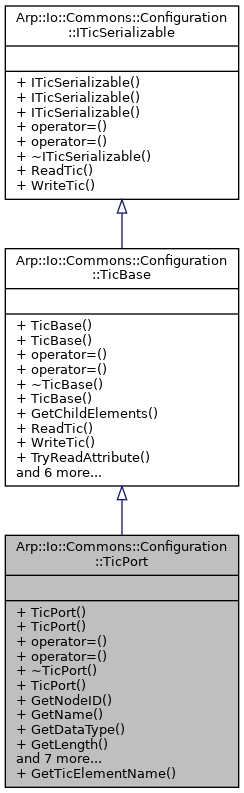

Inheritance diagram for Arp::Io::Commons::Configuration::TicPort:

Public Types
using	Ptr = std::shared_ptr< TicPort >

using	ConstPtr = std::shared_ptr< const TicPort >

using	PortDefinition = Arp::Plc::Meta::Commons::Io::PortDefinition

using	NodeID = Arp::uint32

using	DataType = Arp::Plc::Meta::Commons::DataType

using	BitSize = Arp::Plc::Meta::Commons::BitSize

Public Types inherited from Arp::Io::Commons::Configuration::TicBase
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicPort (const TicPort &arg)=delete

	TicPort (TicPort &&arg) noexcept
	Default move constructor.

TicPort &	operator= (const TicPort &arg)=delete

TicPort &	operator= (TicPort &&arg) noexcept
	Default move-assignment operator.

	~TicPort (void) override
	Default destructor.

	TicPort (void)
	Default constructor.

NodeID	GetNodeID (void) const noexcept
	Returns the node ID of the TicPort. More...

const String &	GetName (void) const noexcept
	Returns the name of the TicPort More...

DataType	GetDataType (void) const noexcept
	Returns the DataType of the TicPort; More...

BitSize	GetLength (void) const noexcept
	Returns the length of the TicPort More...

BitSize	GetOffset (void) const noexcept
	Returns the offset of the TicPort More...

bool	TryReadAttribute (TicReader &reader, const String &attributeName) final
	This operation is called every time an attribute is read, to read the attributes content. More...

bool	TryCreateElement (const String &elementName, ChildPtr &result) final
	Factory method to create a child element. More...

void	OnReadEnd (void) override
	Validation method. The default implementation is just empty. More...

PortDefinition	CreatePortDefinition (const String &bufferName) const
	Creates and returns an instance of for the TicPort More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::TicBase
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Static Public Member Functions
static const char *	GetTicElementName (void)
	Returns the Tic name of this element called IO:Port. More...

Detailed Description

This class is used to read and store a single Tic port element called IO:Port.

This class reads the following Tic attributes by default.

NodeId
DataType
Offset
Length

To add custom attributes, the method TryReadCustomAttribute needs to be specialized by a derived class.

Member Function Documentation

◆ CreatePortDefinition()

TicPort::PortDefinition Arp::Io::Commons::Configuration::TicPort::CreatePortDefinition ( const String & bufferName ) const

Creates and returns an instance of for the TicPort

Returns: Created PortDefinition

◆ GetDataType()

TicPort::DataType Arp::Io::Commons::Configuration::TicPort::GetDataType ( void ) const

noexcept

Returns the DataType of the TicPort;

Returns: DataType of TicPort

◆ GetLength()

TicPort::BitSize Arp::Io::Commons::Configuration::TicPort::GetLength ( void ) const

noexcept

Returns the length of the TicPort

Returns: Length of the TicPort

◆ GetName()

const String & Arp::Io::Commons::Configuration::TicPort::GetName ( void ) const

noexcept

Returns the name of the TicPort

Returns: Name of the tic port

◆ GetNodeID()

TicPort::NodeID Arp::Io::Commons::Configuration::TicPort::GetNodeID ( void ) const

noexcept

Returns the node ID of the TicPort.

Returns: Node ID

◆ GetOffset()

TicPort::BitSize Arp::Io::Commons::Configuration::TicPort::GetOffset ( void ) const

noexcept

Returns the offset of the TicPort

Returns: Offset of the TicPort

◆ GetTicElementName()

const char * Arp::Io::Commons::Configuration::TicPort::GetTicElementName ( void )

static

Returns the Tic name of this element called IO:Port.

Returns: IO:Port

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicPort::OnReadEnd ( void )

overridevirtual

Validation method. The default implementation is just empty.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicPort::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

finalvirtual

Factory method to create a child element.

Parameters

elementName	The name of the child element to create.
result	The new created child element.

Returns: true if element was created, otherwise false if the element should be skipped.

The default implementation returns always false.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicPort::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

finalvirtual

This operation is called every time an attribute is read, to read the attributes content.

Parameters

reader	The TicReader to read the attribute value from.
attributeName	The name of the attribute to read.

Returns: true if the attribute value has been read, otherwise false if the attribute was skipped.

This operation reads following attributes by default:

NodeId
DataType
Offset
Length

This operation reads the value of the attribute from the given TicReader. If the containing element should not be processed, the operation returns false to skip the attribute.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicPort.hpp
Arp/Io/Commons/Configuration/TicPort.cpp
