Contains result the PcpInitiate service More...

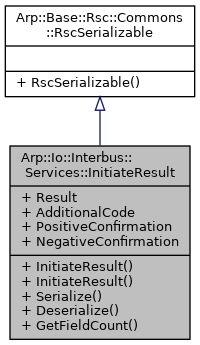

Inheritance diagram for Arp::Io::Interbus::Services::InitiateResult:

Public Member Functions
	InitiateResult (void)
	Constructs an InitiateResult instance.

	InitiateResult (uint16 result, uint16 additionalCode, const PositiveInitiateResult &positiveConfirmation, const NegativeInitiateResult &negativeConfirmation)
	Constructs an InitiateResult instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	Result = 0
	Result describes the error cause. (0 = No error) To get the meaning of Result, please refer to the PCP manual. There you will find a section of error codes.

uint16	AdditionalCode = 0
	AdditionalCode gives additional information about the error cause described by Result. To get the meaning of AdditionalCode, please refer to the PCP manual. There you will find a section of error codes.

PositiveInitiateResult	PositiveConfirmation
	If Result = 0 (No error), PositiveConfirmation contains the result. Arp.Io.Interbus.Services.PositiveInitiateResult

NegativeInitiateResult	NegativeConfirmation
	If Result is not 0 (Error), NegativeConfirmation contains the result. Arp.Io.Interbus.Services.NegativeInitiateResult

Detailed Description

Contains result the PcpInitiate service

Member Function Documentation

void Arp::Io::Interbus::Services::InitiateResult::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::Interbus::Services::InitiateResult::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::Interbus::Services::InitiateResult::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
