Arp::Io::Interbus::Services::PositiveInitiateResult Class Reference

Result of a successful PcpInitiate service More...

#include <PositiveInitiateResult.hpp>

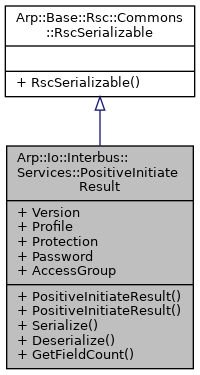

Inheritance diagram for Arp::Io::Interbus::Services::PositiveInitiateResult:

Public Member Functions
	PositiveInitiateResult (void)
	Constructs an PositiveInitiateResult instance.
	PositiveInitiateResult (uint16 version, uint16 profile, uint8 protection, uint8 password, uint8 accessGroup)
	Constructs an PositiveInitiateResult instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	Version = 0
	Version of object list
uint16	Profile = 0
	Device profile
uint8	Protection = 0
	Contains the attribute Access_Protection_Supported. If Protection = 0xFF, the access is protected.
uint8	Password = 0
	Manufacturer specific password. (Default: Password = 0)
uint8	AccessGroup = 0
	Manufacturer specific assignment of connection group

Detailed Description

Result of a successful PcpInitiate service

Member Function Documentation

Deserialize()

void Arp::Io::Interbus::Services::PositiveInitiateResult::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Io::Interbus::Services::PositiveInitiateResult::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize()

void Arp::Io::Interbus::Services::PositiveInitiateResult::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Io/Interbus/Services/PositiveInitiateResult.hpp
• Arp/Io/Interbus/Services/PositiveInitiateResult.cpp
