Result of an unsuccessful PcpInitiate service More...

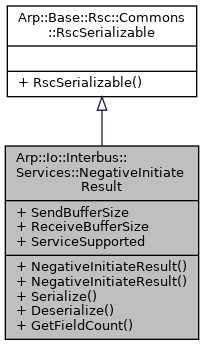

Inheritance diagram for Arp::Io::Interbus::Services::NegativeInitiateResult:

Public Member Functions
	NegativeInitiateResult (void)
	Constructs an NegativeInitiateResult instance.

	NegativeInitiateResult (uint16 sendBufferSize, uint16 receiveBufferSize, const std::vector< byte > &serviceSupported)
	Constructs an NegativeInitiateResult instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	SendBufferSize = 0
	Send buffer size of remote device

uint16	ReceiveBufferSize = 0
	Receive buffer size of remote device

std::vector< byte >	ServiceSupported
	Coding of supported services

Detailed Description

Result of an unsuccessful PcpInitiate service

Member Function Documentation

void Arp::Io::Interbus::Services::NegativeInitiateResult::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::Interbus::Services::NegativeInitiateResult::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::Interbus::Services::NegativeInitiateResult::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
