Arp::Io::ProfinetStack::Controller::Services::IArDataService Class Reference

Use this service to manage PROFINET Controller Application Relationships (AR) More...

#include <IArDataService.hpp>

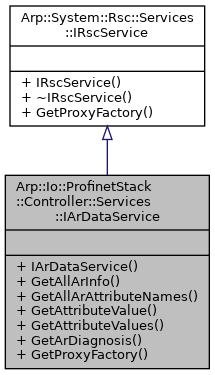

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::IArDataService:

Public Types
using	Ptr = std::shared_ptr< IArDataService >
using	GetAllArAttributeNamesResultDelegate = delegate< void(IRscReadEnumerator< RscString< 256 > > &)>
using	GetAllArInfoResultDelegate = delegate< void(IRscReadEnumerator< ArInfo > &)>
using	GetAttributeValuesAttributeNameDelegate = delegate< void(IRscWriteEnumerator< RscString< 256 > > &)>
using	GetAttributeValuesResultDelegate = delegate< void(IRscReadEnumerator< ArDataResult > &)>
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IArDataService (void)=default
	Constructs an IArDataService instance.
virtual void	GetAllArInfo (GetAllArInfoResultDelegate resultDelegate)=0
	This method returns a list of ArInfo-objects with DNS-Name and AR-User-Id of each configured profinet device More...
virtual void	GetAllArAttributeNames (uint16 arUserId, GetAllArAttributeNamesResultDelegate resultDelegate)=0
	This method returns an array of strings with all available attributes of specified AR-User-Id of which values can be read More...
virtual ArDataResult	GetAttributeValue (uint16 arUserId, const RscString< 256 > &attributeName)=0
	Read a single attribute value More...
virtual void	GetAttributeValues (uint16 arUserId, GetAttributeValuesAttributeNameDelegate attributeNameDelegate, GetAttributeValuesResultDelegate resultDelegate)=0
	Read a list of attribute values More...
virtual std::vector< DiagnosticResult >	GetArDiagnosis (const std::vector< uint16 > &arUserId)=0
	Read an array of diagnosis information More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance.
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service to manage PROFINET Controller Application Relationships (AR)

This service is defined in library Arp.Io.ProfinetStack.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

GetAllArAttributeNames()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAllArAttributeNames ( uint16  arUserId, GetAllArAttributeNamesResultDelegate  resultDelegate  )

pure virtual

This method returns an array of strings with all available attributes of specified AR-User-Id of which values can be read

Parameters

arUserId

ArUserId to specify AR of requested items

Returns

array of strings with all available attributes

GetAllArInfo()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAllArInfo ( GetAllArInfoResultDelegate  resultDelegate )

pure virtual

This method returns a list of ArInfo-objects with DNS-Name and AR-User-Id of each configured profinet device

Returns

result as array of Arp.Io.ProfinetStack.Controller.Services.ArInfo

GetArDiagnosis()

virtual std::vector< DiagnosticResult > Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetArDiagnosis ( const std::vector< uint16 > &  arUserId )

pure virtual

Read an array of diagnosis information

Parameters

arUserId

Array of uint16-Ar-User-Ids, for which diagnosis is requested, if empty, diagnosis for all configured ARs is returned

Returns

result as array of Arp.Io.ProfinetStack.Controller.Services.DiagnosticResult

GetAttributeValue()

virtual ArDataResult Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAttributeValue ( uint16  arUserId, const RscString< 256 > &  attributeName  )

pure virtual

Read a single attribute value

Parameters

arUserId	ArUserId to specify AR of requested items
attributeName	String for the requested attribute

Returns

result as Arp.Io.ProfinetStack.Controller.Services.ArDataResult

GetAttributeValues()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAttributeValues ( uint16  arUserId, GetAttributeValuesAttributeNameDelegate  attributeNameDelegate, GetAttributeValuesResultDelegate  resultDelegate  )

pure virtual

Read a list of attribute values

Parameters

arUserId	ArUserId to specify AR of requested items
attributeName	Array of string for select the items

Returns

result as array of Arp.Io.ProfinetStack.Controller.Services.ArDataResult

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/Controller/Services/IArDataService.hpp
