Arp::Io::ProfinetStack::Controller::Services::ArDataResult Class Reference

Container for a combination of an error code and a value which is a result for a read operation to a single setting. More...

#include <ArDataResult.hpp>

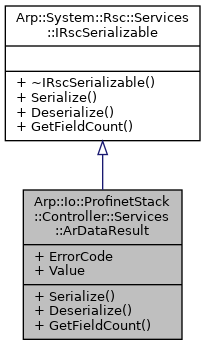

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ArDataResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor
virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
ArDataAccessError	ErrorCode = static_cast<ArDataAccessError>(0)
	An error code which describes the reason why a setting could not be read with The error codes can be interpreted with the help of the enumeration Arp.Io.ProfinetStack.Controller.Services.ArDataAccessError.
RscVariant< 512 >	Value
	The value for the requested setting which can be RscType::Void and otherwise is of the simple type the setting has. More...

Detailed Description

Container for a combination of an error code and a value which is a result for a read operation to a single setting.

The structure is used as result by Arp.Io.ProfinetStack.Controller.Services.IArDataService.GetAttributeValue A sequence of instances of this structure is used as result by Arp.Io.ProfinetStack.Controller.Services.IArDataService.GetAttributeValues.

Member Function Documentation

Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ArDataResult::Deserialize ( RscReader &  reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ArDataResult::Serialize ( RscWriter &  writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

Value

RscVariant<512> Arp::Io::ProfinetStack::Controller::Services::ArDataResult::Value

The value for the requested setting which can be

RscType::Void

and otherwise is of the simple type the setting has.

Please note that this property is

RscType::Void

whenever the member Arp.Io.ProfinetStack.Controller.Services.ArDataResult.ErrorCode indicates an error which means it is not Arp.Io.ProfinetStack.Controller.Services.ArDataAccessError.None.

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/Controller/Services/ArDataResult.hpp
