#include <API.hpp>

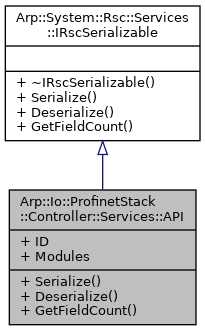

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::API:
Public Member Functions | |
| void | Serialize (RscWriter &writer) const override |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) override |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
 Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| virtual | ~IRscSerializable ()=default |
| default destructor | |
| virtual void | Serialize (RscWriter &writer) const =0 |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| virtual void | Deserialize (RscReader &reader)=0 |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
Static Public Member Functions | |
| static constexpr size_t | GetFieldCount (void) |
| Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields of the struct type More... | |
Public Attributes | |
| uint32 | ID = 0 |
| API ID | |
| std::vector< Module > | Modules |
| Configured modules | |
Detailed Description
API data
Member Function Documentation
◆ Deserialize()
|
inlineoverridevirtual |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
Implements Arp::System::Rsc::Services::IRscSerializable.
◆ Serialize()
|
inlineoverridevirtual |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Implements Arp::System::Rsc::Services::IRscSerializable.
The documentation for this class was generated from the following file:
- Arp/Io/ProfinetStack/Controller/Services/API.hpp
