Arp::Plc::Commons::Esm::RtEvent Class Reference

Rt event for bidirectional exchange of events in the ESM context. E.g. this is used to trigger a task execution cycle of PreDefinedEventTask and UserDefinedEventTask. In this case the task is the subscriber of the event. Instances of this will be created by the configuration of ESM and can be get with the RtEventManagerProxy. More...

#include <RtEvent.hpp>

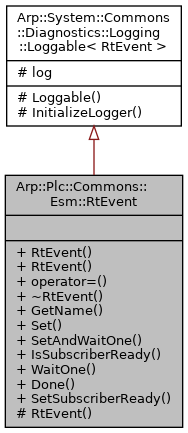

Inheritance diagram for Arp::Plc::Commons::Esm::RtEvent:

Public Types
using	Ptr = RtEventManagerSharedData::Ptr< RtEvent >
	Shared pointer type of RtEvent. More...

Public Member Functions
	RtEvent (const String &nameArg)
	Constructs an RtEvent instance. More...
	RtEvent (const RtEvent &arg)=delete
	Copy constructor. More...
RtEvent &	operator= (const RtEvent &arg)=delete
	Assignment operator. More...
	~RtEvent (void)=default
	Destructs this instance and frees all resources. More...
String	GetName ()
	Returns the identifier of the rt event. More...
void	Set (void)
	Signals the event to the subscriber. More...
bool	SetAndWaitOne (unsigned long timeoutArg=0)
	Signals the event to the subscriber and waits blocking on the done by the subscriber. More...
bool	IsSubscriberReady (void)
	Returns state of the subscriber to processing incoming signaled events. More...
bool	WaitOne (unsigned long timeoutArg=0, bool setSubscriberReadyArg=true)
	Waits blocking on the signal of the sender. More...
void	Done (void)
	Signals that the event was processed by the subscriber to the sender. More...
void	SetSubscriberReady (bool isSubscriberReadyArg)
	Sets the state of the subscriber to processing incoming signaled events. More...

Protected Member Functions
	RtEvent (const String &nameArg, uint32 value)
	Constructs an RtEvent instance. - For internal use only! More...

Detailed Description

Rt event for bidirectional exchange of events in the ESM context. E.g. this is used to trigger a task execution cycle of PreDefinedEventTask and UserDefinedEventTask. In this case the task is the subscriber of the event. Instances of this will be created by the configuration of ESM and can be get with the RtEventManagerProxy.

Member Typedef Documentation

Ptr

using Arp::Plc::Commons::Esm::RtEvent::Ptr = RtEventManagerSharedData::Ptr<RtEvent>

Shared pointer type of RtEvent.

Constructor & Destructor Documentation

RtEvent() [1/3]

Arp::Plc::Commons::Esm::RtEvent::RtEvent

(

const String &

nameArg

)

Constructs an RtEvent instance.

RtEvent() [2/3]

Arp::Plc::Commons::Esm::RtEvent::RtEvent ( const RtEvent &  arg )

delete

Copy constructor.

~RtEvent()

Arp::Plc::Commons::Esm::RtEvent::~RtEvent ( void  )

default

Destructs this instance and frees all resources.

RtEvent() [3/3]

Arp::Plc::Commons::Esm::RtEvent::RtEvent ( const String &  nameArg, uint32  value  )

protected

Constructs an RtEvent instance. - For internal use only!

Member Function Documentation

Done()

void Arp::Plc::Commons::Esm::RtEvent::Done

(

void

)

Signals that the event was processed by the subscriber to the sender.

GetName()

String Arp::Plc::Commons::Esm::RtEvent::GetName ( )

inline

Returns the identifier of the rt event.

Returns

The identifier of the rt event.

IsSubscriberReady()

bool Arp::Plc::Commons::Esm::RtEvent::IsSubscriberReady ( void  )

inline

Returns state of the subscriber to processing incoming signaled events.

Returns

State of the subscriber. "true" marks the subscriber is ready to processing incoming signaled events.

operator=()

RtEvent& Arp::Plc::Commons::Esm::RtEvent::operator= ( const RtEvent &  arg )

delete

Assignment operator.

Set()

void Arp::Plc::Commons::Esm::RtEvent::Set

(

void

)

Signals the event to the subscriber.

SetAndWaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::SetAndWaitOne

(

unsigned long

timeoutArg = 0

)

Signals the event to the subscriber and waits blocking on the done by the subscriber.

Parameters

timeoutArg

Timeout in milliseconds to wait for the done to become processed. If the value is set to 0 (default) the calling thread will wait infinitely or until the event is signaled.

Returns

Returns false if the timeout was reached before the event was signaled, otherwise true is returned.

SetSubscriberReady()

void Arp::Plc::Commons::Esm::RtEvent::SetSubscriberReady ( bool  isSubscriberReadyArg )

inline

Sets the state of the subscriber to processing incoming signaled events.

Parameters

isSubscriberReadyArg

The state of the subscriber. "true" marks the subscriber is ready to processing incoming signaled events.

WaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::WaitOne	(	unsigned long	timeoutArg = 0,
		bool	setSubscriberReadyArg = true
	)

Waits blocking on the signal of the sender.

Parameters

timeoutArg	Timeout in milliseconds to wait for the incoming signal of sender. If the value is set to 0 (default) the calling thread will wait infinitely or until the event is set.
setSubscriberReadyArg	If the parameter true, the method sets the subscriber ready implicit. Default is this parameter true.

Returns

Returns false if the timeout was reached before the event was signaled, otherwise true is returned.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/RtEvent.hpp
