With the rt event manager proxy can be get instances of RtEvent. The instances of RtEvent will be created by the configuration of ESM at the plc startup. The RtEventManagerProxy can be get by methods of AppDomainSingleton. More...

#include <RtEventManagerProxy.hpp>

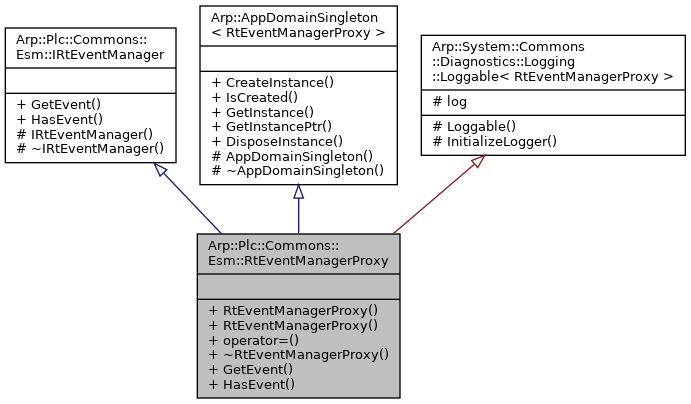

Inheritance diagram for Arp::Plc::Commons::Esm::RtEventManagerProxy:

Public Member Functions
	RtEventManagerProxy (void)
	Constructs an RtEventManagerProxy instance. More...

	RtEventManagerProxy (const RtEventManagerProxy &arg)=default
	Copy constructor. More...

RtEventManagerProxy &	operator= (const RtEventManagerProxy &arg)=default
	Assignment operator. More...

	~RtEventManagerProxy (void)
	Destructs this instance and frees all resources. More...

RtEvent::Ptr	GetEvent (const String &name) override
	Get the shared pointer of the give RtEvent. More...

bool	HasEvent (const String &name) override
	Checks that a given RtEvent exists. More...

Additional Inherited Members
Static Public Member Functions inherited from Arp::AppDomainSingleton< RtEventManagerProxy >
static RtEventManagerProxy &	CreateInstance (Args &&... args)
	Creates this singleton instance. More...

static bool	IsCreated (void)
	Determines if this singleton instance is created yet. More...

static RtEventManagerProxy &	GetInstance (void)
	Gets a reference of the singleton instance. More...

static RtEventManagerProxy *	GetInstancePtr (void)
	Gets a pointer to the singleton instance. More...

static void	DisposeInstance (void)
	Disposes this singleton instance. More...

Protected Types inherited from Arp::AppDomainSingleton< RtEventManagerProxy >
typedef AppDomainSingleton< RtEventManagerProxy >	SingletonBase
	Defines this type to be used from derived classes. More...

Protected Member Functions inherited from Arp::Plc::Commons::Esm::IRtEventManager
	IRtEventManager (void)=default
	Constructs an IRtEventManager instance. More...

virtual	~IRtEventManager (void)=default
	Destructs this instance and frees all resources. More...

Protected Member Functions inherited from Arp::AppDomainSingleton< RtEventManagerProxy >
	AppDomainSingleton (void)=default
	The protected default constructor. More...

	~AppDomainSingleton (void)=default
	The protected default destructor. More...

Detailed Description

With the rt event manager proxy can be get instances of RtEvent. The instances of RtEvent will be created by the configuration of ESM at the plc startup. The RtEventManagerProxy can be get by methods of AppDomainSingleton.

Constructor & Destructor Documentation

◆ RtEventManagerProxy() [1/2]

Arp::Plc::Commons::Esm::RtEventManagerProxy::RtEventManagerProxy ( void )

Constructs an RtEventManagerProxy instance.

◆ RtEventManagerProxy() [2/2]

Arp::Plc::Commons::Esm::RtEventManagerProxy::RtEventManagerProxy ( const RtEventManagerProxy & arg )

default

Copy constructor.

◆ ~RtEventManagerProxy()

Arp::Plc::Commons::Esm::RtEventManagerProxy::~RtEventManagerProxy ( void )

Destructs this instance and frees all resources.

Member Function Documentation

◆ GetEvent()

RtEvent::Ptr Arp::Plc::Commons::Esm::RtEventManagerProxy::GetEvent ( const String & name )

overridevirtual

Get the shared pointer of the give RtEvent.

Parameters

name	Name identifier of RtEvent to be get.

Returns: If the RtEvent exists the shared pointer is returned, otherwise nullptr.

Implements Arp::Plc::Commons::Esm::IRtEventManager.

◆ HasEvent()

bool Arp::Plc::Commons::Esm::RtEventManagerProxy::HasEvent ( const String & name )

overridevirtual

Checks that a given RtEvent exists.

Parameters

name	Name identifier of RtEvent to be check.

Returns: If the event exists true is returned, otherwise false.

Implements Arp::Plc::Commons::Esm::IRtEventManager.

◆ operator=()

RtEventManagerProxy& Arp::Plc::Commons::Esm::RtEventManagerProxy::operator= ( const RtEventManagerProxy & arg )
