API to manage and manipulate memory shared between different processes More...

#include <SharedMemory.hpp>

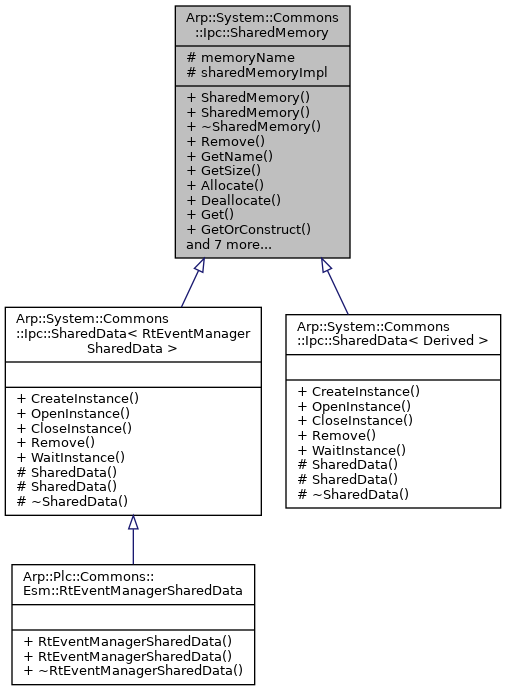

Inheritance diagram for Arp::System::Commons::Ipc::SharedMemory:

Public Types
typedef boost::interprocess::managed_shared_memory	SharedMemoryImpl

typedef SharedMemoryImpl::segment_manager	SegmentManager

typedef boost::interprocess::permissions	SharedMemoryPermission

template<class T >
using	Ptr = boost::interprocess::offset_ptr< T >
	Returned pointer types are shared memory based offset pointer. More...

Public Member Functions
	SharedMemory (const char *name)
	Opens an existing shared memory. More...

	SharedMemory (const char *name, size_t memorySize)
	Creates an non-existing instance, throws if yet exists. More...

	~SharedMemory (void)=default
	Deallocates the memory for this management object but not the memory shared between processes. More...

void	Remove (void)
	Removes the shared memory from the system. More...

const Arp::String &	GetName (void) const
	Returns the name of the memory object. More...

size_t	GetSize (void) const
	Returns the capacity of the shared memory in bytes. More...

byte *	Allocate (size_t size)
	Tries to allocate `size` amount of bytes in the memory. More...

void	Deallocate (byte *pMemory)
	Marks the memory pointed to by `pMemory` available for new allocation requests. More...

template<class T >
Ptr< T >	Get (const char *name)
	Tries to find a previously allocated named object. More...

template<class T , typename ... TArgs>
Ptr< T >	GetOrConstruct (const char *name, TArgs... args)
	Tries to find object identified by `name`, creates a new one if the object does not exists yet. More...

template<class T , typename ... TArgs>
Ptr< T >	Construct (const char *name, TArgs... args)
	Creates a named object in the shared memory. More...

template<class T , typename ... TArgs>
Ptr< T >	ConstructUnnamed (TArgs... args)
	Creates an unnamed object in the shared memory. More...

template<class T >
void	Destroy (const char *name)
	Deallocates the object in the shared memory, also calling the objects destructor. More...

size_t	GetFreeMemory (void) const
	Obtain the number of free bytes in the shared memory. More...

void	ZeroFreeMemory (void)
	Writes zero in all bytes not yet allocated. More...

bool	AllMemoryDeallocated (void)
	Checks if all memory has been deallocated. More...

bool	CheckSanity (void)
	Performs a sanity check over the shared memory. More...

Protected Attributes
Arp::String	memoryName
	Name of memory identifying the shared memory inside the operating system. More...

SharedMemoryImpl	sharedMemoryImpl
	Actual implementation of the shared memory functionality. More...

Detailed Description

API to manage and manipulate memory shared between different processes

Member Typedef Documentation

◆ Ptr

template<class T >

using Arp::System::Commons::Ipc::SharedMemory::Ptr = boost::interprocess::offset_ptr<T>

Returned pointer types are shared memory based offset pointer.

Constructor & Destructor Documentation

◆ SharedMemory() [1/2]

Arp::System::Commons::Ipc::SharedMemory::SharedMemory ( const char * name )

inline

Opens an existing shared memory.

Parameters

name	Name identifing the shared memory to be opened.

◆ SharedMemory() [2/2]

Arp::System::Commons::Ipc::SharedMemory::SharedMemory	(	const char *	name,
		size_t	memorySize
	)

Creates an non-existing instance, throws if yet exists.

Parameters

name	Name identifing the shared memory to be opened.
memorySize	The memory size in bytes allocated for the new shared memory.

◆ ~SharedMemory()

Arp::System::Commons::Ipc::SharedMemory::~SharedMemory ( void )

default

Deallocates the memory for this management object but not the memory shared between processes.

Member Function Documentation

◆ AllMemoryDeallocated()

bool Arp::System::Commons::Ipc::SharedMemory::AllMemoryDeallocated ( void )

inline

Checks if all memory has been deallocated.

Returns: true if all memory is deallocated, otherwise false is returned.

◆ Allocate()

byte * Arp::System::Commons::Ipc::SharedMemory::Allocate ( size_t size )

inline

Tries to allocate size amount of bytes in the memory.

Parameters

size	The desired size in bytes of the allocated memory block.

Returns: Pointer to allocated memory area.

◆ CheckSanity()

bool Arp::System::Commons::Ipc::SharedMemory::CheckSanity ( void )

inline

Performs a sanity check over the shared memory.

Returns: True if no errors are detected, otherwise false is returned.

◆ Construct()

template<class T , typename ... TArgs>

SharedMemory::Ptr< T > Arp::System::Commons::Ipc::SharedMemory::Construct	(	const char *	name,
		TArgs...	args
	)

inline

Creates a named object in the shared memory.

Parameters

name	Name associated with the object.
args	Arguments passed to the objects constructor.

Returns: Pointer to created object on success, otherwise nullptr is returned.

◆ ConstructUnnamed()

template<class T , typename ... TArgs>

SharedMemory::Ptr< T > Arp::System::Commons::Ipc::SharedMemory::ConstructUnnamed ( TArgs... args )

inline

Creates an unnamed object in the shared memory.

Parameters

args	Arguments passed to the objects constructor.

Returns: Pointer to created object on success, otherwise nullptr is returned.

◆ Deallocate()

void Arp::System::Commons::Ipc::SharedMemory::Deallocate ( byte * pMemory )

inline

Marks the memory pointed to by pMemory available for new allocation requests.

Parameters

pMemory Pointer to begin of previously allocated memory area.

◆ Destroy()

template<class T >

void Arp::System::Commons::Ipc::SharedMemory::Destroy ( const char * name )

inline

Deallocates the object in the shared memory, also calling the objects destructor.

Parameters

name	Name identifying the object to destroy.

◆ Get()

template<class T >

SharedMemory::Ptr< T > Arp::System::Commons::Ipc::SharedMemory::Get ( const char * name )

inline

Tries to find a previously allocated named object.

Returns: Pointer to object on success, otherwise a nullptr is returned.

◆ GetFreeMemory()

size_t Arp::System::Commons::Ipc::SharedMemory::GetFreeMemory ( void ) const

inline

Obtain the number of free bytes in the shared memory.

Returns: Amount of free bytes in the shared memory.

◆ GetName()

const Arp::String & Arp::System::Commons::Ipc::SharedMemory::GetName ( void ) const

inline

Returns the name of the memory object.

Returns: Name of memory object.

◆ GetOrConstruct()

template<class T , typename ... TArgs>

SharedMemory::Ptr< T > Arp::System::Commons::Ipc::SharedMemory::GetOrConstruct	(	const char *	name,
		TArgs...	args
	)

inline

Tries to find object identified by name, creates a new one if the object does not exists yet.

Parameters

name	Name identifying the object in the memory after allocation.
args	Arguments passed to constructor of object.

Returns: Pointer to object on success, otherwise a nullptr is returned.

◆ GetSize()

size_t Arp::System::Commons::Ipc::SharedMemory::GetSize ( void ) const

inline

Returns the capacity of the shared memory in bytes.

Returns: Capacity of the shared memory.

◆ Remove()

void Arp::System::Commons::Ipc::SharedMemory::Remove ( void )

inline

Removes the shared memory from the system.

◆ ZeroFreeMemory()

void Arp::System::Commons::Ipc::SharedMemory::ZeroFreeMemory ( void )

inline

Writes zero in all bytes not yet allocated.

Member Data Documentation

◆ memoryName

Arp::String Arp::System::Commons::Ipc::SharedMemory::memoryName

protected

Name of memory identifying the shared memory inside the operating system.

◆ sharedMemoryImpl

SharedMemoryImpl Arp::System::Commons::Ipc::SharedMemory::sharedMemoryImpl

protected

Actual implementation of the shared memory functionality.

The documentation for this class was generated from the following file:

Arp/System/Commons/Ipc/SharedMemory.hpp
