Porvides information about one variable More...
#include <VariableInformation.hpp>

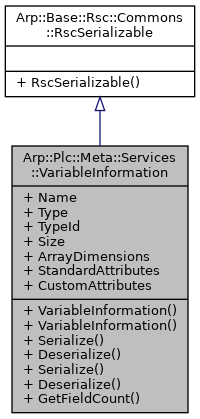

Inheritance diagram for Arp::Plc::Meta::Services::VariableInformation:
Public Types | |
| using | DataType = Arp::Plc::Meta::Commons::DataType |
| using | StandardAttribute = Arp::Plc::Meta::Commons::StandardAttribute |
Public Member Functions | |
| VariableInformation (void) | |
| Constructs an VariableInformation instance. | |
| VariableInformation (const RscString< 512 > &name, DataType type, const VariableTypeIdentifier &typeId, const BitSize &size, const std::vector< ArrayDimension > &arrayDimensions, StandardAttribute standardAttributes, const std::vector< CustomAttribute > &customAttributes) | |
| Constructs an VariableInformation instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| RscString< 512 > | Name |
| Name of the variable | |
| DataType | Type = static_cast<DataType>(0) |
| Data type of the variable | |
| VariableTypeIdentifier | TypeId |
| Type name of a complex type | |
| BitSize | Size |
| Size of one element of the type | |
| std::vector< ArrayDimension > | ArrayDimensions |
| Array information | |
| StandardAttribute | StandardAttributes = static_cast<StandardAttribute>(0) |
| Standard attributes | |
| std::vector< CustomAttribute > | CustomAttributes |
| Custom attributes | |
Detailed Description
Porvides information about one variable
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Plc::Meta::Services::VariableInformation::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Plc::Meta::Services::VariableInformation::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Plc::Meta::Services::VariableInformation::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Plc::Meta::Services::VariableInformation::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Plc/Meta/Services/VariableInformation.hpp
- Arp/Plc/Meta/Services/VariableInformation.cpp
