Provide array information. More...
#include <ArrayDimension.hpp>

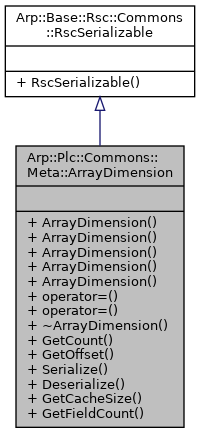

Inheritance diagram for Arp::Plc::Commons::Meta::ArrayDimension:
Public Member Functions | |
| ArrayDimension (void)=default | |
| Constructs an ArrayDimension instance. | |
| ArrayDimension (size_t count) | |
| Constructs an ArrayDimension instance. | |
| ArrayDimension (uint32 count, int32 offset) | |
| Constructs an ArrayDimension instance. | |
| ArrayDimension (const ArrayDimension &arg)=default | |
| Copy constructor. | |
| ArrayDimension (ArrayDimension &&arg) noexcept=default | |
| Move constructor. | |
| ArrayDimension & | operator= (const ArrayDimension &arg)=default |
| Copy assignment operator. | |
| ArrayDimension & | operator= (ArrayDimension &&arg) noexcept=default |
| Move assignment operator. | |
| ~ArrayDimension (void) noexcept=default | |
| Destructs this instance and frees all resources. | |
| uint32 | GetCount (void) const |
| Get the number of array elements for this vector element. More... | |
| int32 | GetOffset (void) const |
| Get the index offset of the array for this vector element More... | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetCacheSize (void) |
| Get the cache size More... | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Detailed Description
Provide array information.
Member Function Documentation
◆ Deserialize()
| void Arp::Plc::Meta::Services::ArrayDimension::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetCacheSize()
|
static |
Get the cache size
- Returns
- Number of using cache size
◆ GetCount()
| uint32 Arp::Plc::Commons::Meta::ArrayDimension::GetCount | ( | void | ) | const |
Get the number of array elements for this vector element.
- Returns
- Number of array elements.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ GetOffset()
| int32 Arp::Plc::Commons::Meta::ArrayDimension::GetOffset | ( | void | ) | const |
Get the index offset of the array for this vector element
- Returns
- Array offset index.
◆ Serialize()
| void Arp::Plc::Meta::Services::ArrayDimension::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Plc/Commons/Meta/ArrayDimension.hpp
- Arp/Plc/Commons/Meta/ArrayDimension.cpp
- Arp/Plc/Meta/Services/ArrayDimension.cpp
