Base class of all RSC service proxies. More...

#include <RscServiceProxyBase2.hpp>

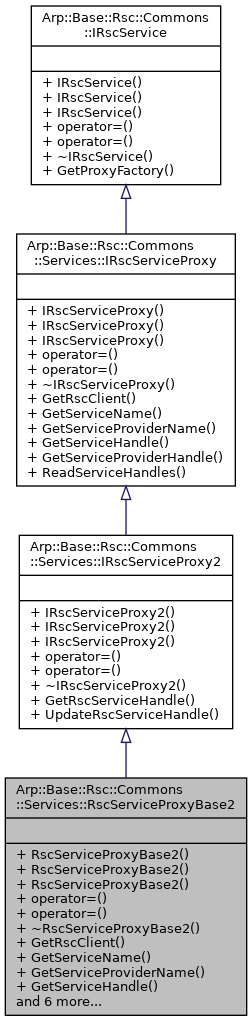

Inheritance diagram for Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2:

Public Member Functions
	RscServiceProxyBase2 (const RscServiceProxyInfo &serviceProxyInfo, RscClient &rscClient)
	Constructs a RscServiceProxyBase2 instance. More...

	RscServiceProxyBase2 (const RscServiceProxyBase2 &arg)=delete

	RscServiceProxyBase2 (RscServiceProxyBase2 &&arg) noexcept
	The default move constructor. More...

RscServiceProxyBase2 &	operator= (const RscServiceProxyBase2 &arg)=delete

RscServiceProxyBase2 &	operator= (RscServiceProxyBase2 &&arg) noexcept
	The default move-assignment operator. More...

	~RscServiceProxyBase2 (void)
	The default destructor.

RscClient &	GetRscClient (void) const
	Gets the RscClient of this proxy. More...

String	GetServiceName (void) const override
	Gets the service name of this proxy. More...

String	GetServiceProviderName (void) const override
	Gets the service provider name of this proxy. More...

RscHandle	GetServiceHandle (void) override
	Gets the service handle of the remote service instance. More...

RscHandle	GetServiceProviderHandle (void) override
	Gets the service handle of the remote service-provider instance. More...

void	ReadServiceHandles (void) override
	Updates the service handle of the remote service instance, e.g. when a reconnect occurs. More...

const RscServiceHandle &	GetRscServiceHandle (void) const override
	Gets the RSC service handle of the remote service instance. More...

void	UpdateRscServiceHandle (RscClient &rscClient) override
	Updates the service handle of the remote service instance using the supplied client. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy2
	IRscServiceProxy2 (void)=default
	Constructs an IRscServiceProxy2 instance.

	IRscServiceProxy2 (const IRscServiceProxy2 &arg)=delete
	The default copy constructor.

	IRscServiceProxy2 (IRscServiceProxy2 &&arg) noexcept=default
	The default move constructor.

IRscServiceProxy2 &	operator= (const IRscServiceProxy2 &arg)=delete
	The default copy-assignment operator.

IRscServiceProxy2 &	operator= (IRscServiceProxy2 &&arg) noexcept=default
	The default move-assignment operator.

virtual	~IRscServiceProxy2 (void)=default
	Destructs this instance and frees all resources.

virtual const RscServiceHandle &	GetRscServiceHandle (void) const =0
	Gets the RSC service handle of the remote service instance. More...

virtual void	UpdateRscServiceHandle (RscClient &rscClient)=0
	Updates the service handle of the refered remote service instance, e.g. when a reconnect occurs. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
	IRscServiceProxy (void)=default
	The default constructor.

	IRscServiceProxy (const IRscServiceProxy &arg)=delete
	The deleted copy constructor.

	IRscServiceProxy (IRscServiceProxy &&arg) noexcept=default
	The default move constructor. More...

IRscServiceProxy &	operator= (const IRscServiceProxy &)=delete
	The deleted assignment operator.

IRscServiceProxy &	operator= (IRscServiceProxy &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscServiceProxy (void)=default
	Destructs this instance and frees all resources.

virtual RscClient &	GetRscClient (void) const =0
	Gets the RscClient of this proxy. More...

virtual String	GetServiceName (void) const =0
	Gets the service name of this proxy. More...

virtual String	GetServiceProviderName (void) const =0
	Gets the service provider name of this proxy. More...

virtual RscHandle	GetServiceHandle (void)=0
	Gets the service handle of the remote service instance. More...

virtual RscHandle	GetServiceProviderHandle (void)=0
	Gets the service handle of the remote service-provider instance. More...

virtual void	ReadServiceHandles (void)=0
	Updates the service handle of the remote service instance, e.g. when a reconnect occurs. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Additional Inherited Members
Public Types inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy2
using	Ptr = std::shared_ptr< IRscServiceProxy2 >
	The pointer type of this interface.

Public Types inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
using	Ptr = std::shared_ptr< IRscServiceProxy >
	The pointer type of this type.

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

Base class of all RSC service proxies.

This class is not intended for direct use, but required by RscGenerator to implement services.

Constructor & Destructor Documentation

◆ RscServiceProxyBase2() [1/2]

Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::RscServiceProxyBase2	(	const RscServiceProxyInfo &	serviceProxyInfo,
		RscClient &	rscClient
	)

Constructs a RscServiceProxyBase2 instance.

Parameters

serviceProxyInfo	Contains all proxy specific infos.
rscClient	The RSC client which estbalished the connection used by the proxy.

◆ RscServiceProxyBase2() [2/2]

Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::RscServiceProxyBase2 ( RscServiceProxyBase2 && arg )

defaultnoexcept

The default move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

◆ GetImpl()

const RscServiceProxyBase2::Impl & Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetImpl ( void )

For internal use only.

Returns: The impl instance.

◆ GetRscClient()

RscClient & Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetRscClient ( void ) const

virtual

Gets the RscClient of this proxy.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetRscServiceHandle()

const RscServiceHandle & Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetRscServiceHandle ( void ) const

overridevirtual

Gets the RSC service handle of the remote service instance.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy2.

◆ GetServiceHandle()

RscHandle Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetServiceHandle ( void )

overridevirtual

Gets the service handle of the remote service instance.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceName()

String Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetServiceName ( void ) const

overridevirtual

Gets the service name of this proxy.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceProviderHandle()

RscHandle Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetServiceProviderHandle ( void )

overridevirtual

Gets the service handle of the remote service-provider instance.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceProviderName()

String Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::GetServiceProviderName ( void ) const

overridevirtual

Gets the service provider name of this proxy.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ operator=()

RscServiceProxyBase2 & Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::operator= ( RscServiceProxyBase2 && arg )

defaultnoexcept

The default move-assignment operator.

Parameters

arg	The argument to move.

Returns: This instance.

◆ ReadServiceHandles()

void Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::ReadServiceHandles ( void )

overridevirtual

Updates the service handle of the remote service instance, e.g. when a reconnect occurs.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ UpdateRscServiceHandle()

void Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2::UpdateRscServiceHandle ( RscClient & rscClient )

overridevirtual

Updates the service handle of the remote service instance using the supplied client.

Parameters

rscClient The client to update the service handle from.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy2.

The documentation for this class was generated from the following files:

Arp/Base/Rsc/Commons/Services/RscServiceProxyBase2.hpp
Arp/Base/Rsc/Commons/Services/RscServiceProxyBase2.cpp
