Arp::Base::Rsc::Commons::Services::IRscServiceProxy2 Class Reference

The interface of RSC service proxies used on client side to invoke services remotely. More...

#include <IRscServiceProxy2.hpp>

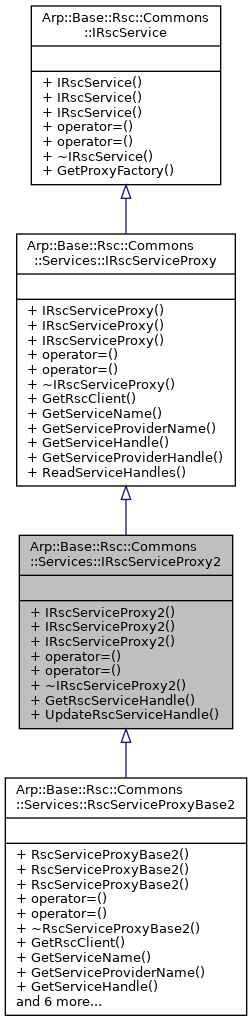

Inheritance diagram for Arp::Base::Rsc::Commons::Services::IRscServiceProxy2:

Public Types
using	Ptr = std::shared_ptr< IRscServiceProxy2 >
	The pointer type of this interface.
Public Types inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
using	Ptr = std::shared_ptr< IRscServiceProxy >
	The pointer type of this type.
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IRscServiceProxy2 (void)=default
	Constructs an IRscServiceProxy2 instance.
	IRscServiceProxy2 (const IRscServiceProxy2 &arg)=delete
	The default copy constructor.
	IRscServiceProxy2 (IRscServiceProxy2 &&arg) noexcept=default
	The default move constructor.
IRscServiceProxy2 &	operator= (const IRscServiceProxy2 &arg)=delete
	The default copy-assignment operator.
IRscServiceProxy2 &	operator= (IRscServiceProxy2 &&arg) noexcept=default
	The default move-assignment operator.
virtual	~IRscServiceProxy2 (void)=default
	Destructs this instance and frees all resources.
virtual const RscServiceHandle &	GetRscServiceHandle (void) const =0
	Gets the RSC service handle of the remote service instance. More...
virtual void	UpdateRscServiceHandle (RscClient &rscClient)=0
	Updates the service handle of the refered remote service instance, e.g. when a reconnect occurs. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
	IRscServiceProxy (void)=default
	The default constructor.
	IRscServiceProxy (const IRscServiceProxy &arg)=delete
	The deleted copy constructor.
	IRscServiceProxy (IRscServiceProxy &&arg) noexcept=default
	The default move constructor. More...
IRscServiceProxy &	operator= (const IRscServiceProxy &)=delete
	The deleted assignment operator.
IRscServiceProxy &	operator= (IRscServiceProxy &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscServiceProxy (void)=default
	Destructs this instance and frees all resources.
virtual RscClient &	GetRscClient (void) const =0
	Gets the RscClient of this proxy. More...
virtual String	GetServiceName (void) const =0
	Gets the service name of this proxy. More...
virtual String	GetServiceProviderName (void) const =0
	Gets the service provider name of this proxy. More...
virtual RscHandle	GetServiceHandle (void)=0
	Gets the service handle of the remote service instance. More...
virtual RscHandle	GetServiceProviderHandle (void)=0
	Gets the service handle of the remote service-provider instance. More...
virtual void	ReadServiceHandles (void)=0
	Updates the service handle of the remote service instance, e.g. when a reconnect occurs. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Additional Inherited Members
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

The interface of RSC service proxies used on client side to invoke services remotely.

This interface is not intended for direct use, but required by RscGenerator to implement services.

Member Function Documentation

GetRscServiceHandle()

virtual const RscServiceHandle & Arp::Base::Rsc::Commons::Services::IRscServiceProxy2::GetRscServiceHandle ( void  ) const

pure virtual

Gets the RSC service handle of the remote service instance.

Returns

The RSC service handle of the remote service instance.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2.

UpdateRscServiceHandle()

virtual void Arp::Base::Rsc::Commons::Services::IRscServiceProxy2::UpdateRscServiceHandle ( RscClient &  rscClient )

pure virtual

Updates the service handle of the refered remote service instance, e.g. when a reconnect occurs.

Parameters

rscClient

The RSC client to update the service handle from.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase2.

---

The documentation for this class was generated from the following file:

• Arp/Base/Rsc/Commons/Services/IRscServiceProxy2.hpp
