Arp::Plc::Commons::Meta::DataInfo Class Reference

Provides detailed informations for the respective data object. More...

#include <DataInfo.hpp>

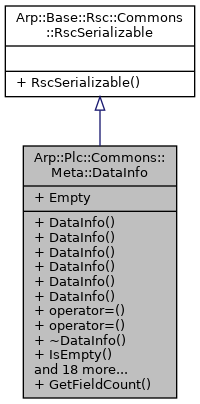

Inheritance diagram for Arp::Plc::Commons::Meta::DataInfo:

Public Member Functions
	DataInfo (void)=default
	Constructs an DataInfo instance.
	DataInfo (const DataInfo &arg)=default
	Copy constructor.
	DataInfo (DataInfo &&arg)=default
	Move constructor.
	DataInfo (const DataTag &dataTag)
	Constructs an DataInfo instance.
	DataInfo (const DataTag &dataTag, const ArrayDimension &arrayDimension)
	Constructs an DataInfo instance.
	DataInfo (const DataTag &dataTag, const ArrayDimensions &arrayDimensions)
	Constructs an DataInfo instance.
DataInfo &	operator= (const DataInfo &arg)=default
	Copy assignment operator.
DataInfo &	operator= (DataInfo &&arg)=default
	Move assignment operator
	~DataInfo (void)=default
	Destructs this instance and frees all resources.
bool	IsEmpty (void) const
	Determines if this instance is empty. More...
DataTypeEnum &	GetDataType (void)
	The data type of this instance. More...
const DataTypeEnum &	GetDataType (void) const
DataTag &	GetDataTag (void)
	Gets the DataTag . More...
const DataTag &	GetDataTag (void) const
TypeIdentifier &	GetTypeIdentifier (void)
	Get type name and namspace. More...
const TypeIdentifier &	GetTypeIdentifier (void) const
ArrayDimensions &	GetArrayDimensions (void)
	List of array dimensions information More...
const ArrayDimensions &	GetArrayDimensions (void) const
	List of array dimensions information More...
bool	IsBackgroundDomain (void) const
	Only for internal using. More...
size_t	GetTypeSize (ITypeNavigator &typeNavigator) const
	Deprecated! Determines the size of the base data type More...
size_t	GetBaseDataTypeSize (ITypeNavigator &typeNavigator) const
	Determines the size of the base data type More...
size_t	GetDataSize (ITypeNavigator &typeNavigator) const
	Determines the size of the data type More...
size_t	GetDataAlignment (ITypeNavigator &typeNavigator) const
	Determines the alignment of the data More...
size_t	GetVariableSize (ITypeNavigator &typeNavigator) const
	Determines the size of the pointer or data type More...
size_t	GetVariableAlignment (ITypeNavigator &typeNavigator) const
	Determines the alignment of the pointer oder data More...
TypeInfo	GetTypeInfo (ITypeNavigator &typeNavigator) const
	Gets the TypeInfo of this object's type More...
void	Serialize (RscWriter &writer) const
void	Deserialize (RscReader &reader)
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)

Static Public Attributes
static const DataInfo	Empty
	constant empty object to enable references

Friends
class	Arp::Plc::Meta::Internal::DataBrowser

Detailed Description

Provides detailed informations for the respective data object.

Member Function Documentation

GetArrayDimensions() [1/2]

ArrayDimensions & Arp::Plc::Commons::Meta::DataInfo::GetArrayDimensions

(

void

)

List of array dimensions information

Returns

Dimensions object.

GetArrayDimensions() [2/2]

const ArrayDimensions & Arp::Plc::Commons::Meta::DataInfo::GetArrayDimensions

(

void

)

const

List of array dimensions information

Returns

Dimensions object.

GetBaseDataTypeSize()

size_t Arp::Plc::Commons::Meta::DataInfo::GetBaseDataTypeSize

(

ITypeNavigator &

typeNavigator

)

const

Determines the size of the base data type

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

size of the base data type

If this object is a pointer, the result is valid for the dereferenced data type!

GetDataAlignment()

size_t Arp::Plc::Commons::Meta::DataInfo::GetDataAlignment

(

ITypeNavigator &

typeNavigator

)

const

Determines the alignment of the data

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

alignment of the data

If this object is a pointer, the result is valid for the dereferenced data type!

GetDataSize()

size_t Arp::Plc::Commons::Meta::DataInfo::GetDataSize

(

ITypeNavigator &

typeNavigator

)

const

Determines the size of the data type

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

size of the data type

Equals base data size times array dimensions. If this object is a pointer, the result is valid for the dereferenced data type!

GetDataTag()

const DataTag & Arp::Plc::Commons::Meta::DataInfo::GetDataTag

(

void

)

Gets the DataTag .

Returns

DataTag.

GetDataType()

const DataTypeEnum & Arp::Plc::Commons::Meta::DataInfo::GetDataType

(

void

)

The data type of this instance.

Returns

DataType.

GetTypeIdentifier()

const TypeIdentifier & Arp::Plc::Commons::Meta::DataInfo::GetTypeIdentifier

(

void

)

Get type name and namspace.

Returns

TypeIdentifier object.

GetTypeInfo()

TypeInfo Arp::Plc::Commons::Meta::DataInfo::GetTypeInfo

(

ITypeNavigator &

typeNavigator

)

const

Gets the TypeInfo of this object's type

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

TypeInfo

GetTypeSize()

size_t Arp::Plc::Commons::Meta::DataInfo::GetTypeSize

(

ITypeNavigator &

typeNavigator

)

const

Deprecated! Determines the size of the base data type

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

size of the base data type

This function is deperecated. Use GetBaseDataTypeSize

If this object is a pointer, the result is valid for the dereferenced data type!

Deprecated:

Use GetBaseDataTypeSize instead

GetVariableAlignment()

size_t Arp::Plc::Commons::Meta::DataInfo::GetVariableAlignment

(

ITypeNavigator &

typeNavigator

)

const

Determines the alignment of the pointer oder data

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

alignment of the pointer or data

If this object is a pointer, the result is valid for the pointer! If this object is not a pointer it equals GetDataAlignment

GetVariableSize()

size_t Arp::Plc::Commons::Meta::DataInfo::GetVariableSize

(

ITypeNavigator &

typeNavigator

)

const

Determines the size of the pointer or data type

Parameters

typeNavigator

ITypeNavigator to query additional type information from

Returns

size of the pointer or data type

If this object is a pointer, the result is valid for the pointer! If this object is not a pointer it equals GetDataSize

IsBackgroundDomain()

bool Arp::Plc::Commons::Meta::DataInfo::IsBackgroundDomain

(

void

)

const

Only for internal using.

Returns

true if this instance relates to the background domain, otherwise false.

IsEmpty()

bool Arp::Plc::Commons::Meta::DataInfo::IsEmpty

(

void

)

const

Determines if this instance is empty.

Returns

true if this instance is empty, otherwiese false.

---

The documentation for this class was generated from the following files:

• Arp/Plc/Commons/Meta/DataInfo.hpp
• Arp/Plc/Commons/Meta/DataInfo.cpp
