Arp::Plc::Commons::Meta::ArrayDimension Class Reference

Provide array information. More...

#include <ArrayDimension.hpp>

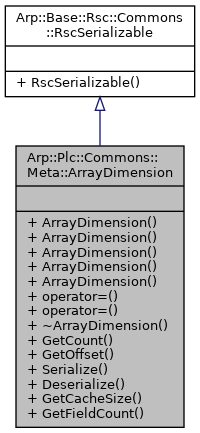

Inheritance diagram for Arp::Plc::Commons::Meta::ArrayDimension:

Public Member Functions
	ArrayDimension (void)=default
	Constructs an ArrayDimension instance.
	ArrayDimension (size_t count)
	Constructs an ArrayDimension instance.
	ArrayDimension (uint32 count, int32 offset)
	Constructs an ArrayDimension instance.
	ArrayDimension (const ArrayDimension &arg)=default
	Copy constructor.
	ArrayDimension (ArrayDimension &&arg) noexcept=default
	Move constructor.
ArrayDimension &	operator= (const ArrayDimension &arg)=default
	Copy assignment operator.
ArrayDimension &	operator= (ArrayDimension &&arg) noexcept=default
	Move assignment operator.
	~ArrayDimension (void) noexcept=default
	Destructs this instance and frees all resources.
uint32	GetCount (void) const
	Get the number of array elements for this vector element. More...
int32	GetOffset (void) const
	Get the index offset of the array for this vector element More...
void	Serialize (RscWriter &writer) const
void	Deserialize (RscReader &reader)
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetCacheSize (void)
	Get the cache size More...
static size_t	GetFieldCount (void)

Detailed Description

Provide array information.

Member Function Documentation

GetCacheSize()

size_t Arp::Plc::Commons::Meta::ArrayDimension::GetCacheSize ( void  )

static

Get the cache size

Returns

Number of using cache size

GetCount()

uint32 Arp::Plc::Commons::Meta::ArrayDimension::GetCount

(

void

)

const

Get the number of array elements for this vector element.

Returns

Number of array elements.

GetOffset()

int32 Arp::Plc::Commons::Meta::ArrayDimension::GetOffset

(

void

)

const

Get the index offset of the array for this vector element

Returns

Array offset index.

---

The documentation for this class was generated from the following files:

• Arp/Plc/Commons/Meta/ArrayDimension.hpp
• Arp/Plc/Commons/Meta/ArrayDimension.cpp
