Result for reading the NetloadLimiter statistics. More...
#include <NetloadLimiterStatisticResult.hpp>

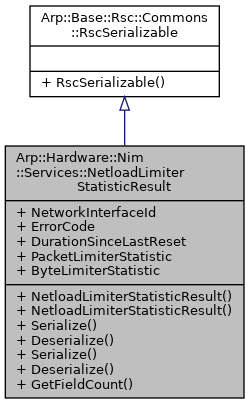

Inheritance diagram for Arp::Hardware::Nim::Services::NetloadLimiterStatisticResult:
Public Member Functions | |
| NetloadLimiterStatisticResult (void) | |
| Constructs an NetloadLimiterStatisticResult instance. | |
| NetloadLimiterStatisticResult (uint8 networkInterfaceId, NetloadLimiterErrorCode errorCode, uint64 durationSinceLastReset, const LimiterStatistic &packetLimiterStatistic, const LimiterStatistic &byteLimiterStatistic) | |
| Constructs an NetloadLimiterStatisticResult instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| uint8 | NetworkInterfaceId = 0 |
| Id of the related interface. | |
| NetloadLimiterErrorCode | ErrorCode = static_cast<NetloadLimiterErrorCode>(0) |
| Error code. | |
| uint64 | DurationSinceLastReset = 0 |
| Time passed since last reset (microseconds). | |
| LimiterStatistic | PacketLimiterStatistic |
| Statistic values of the packet limiter. | |
| LimiterStatistic | ByteLimiterStatistic |
| Statistic values of the byte limiter. | |
Detailed Description
Result for reading the NetloadLimiter statistics.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Hardware::Nim::Services::NetloadLimiterStatisticResult::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Hardware::Nim::Services::NetloadLimiterStatisticResult::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Hardware::Nim::Services::NetloadLimiterStatisticResult::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Hardware::Nim::Services::NetloadLimiterStatisticResult::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Hardware/Nim/Services/NetloadLimiterStatisticResult.hpp
- Arp/Hardware/Nim/Services/NetloadLimiterStatisticResult.cpp
