Statistical values for the NetloadLimiter More...

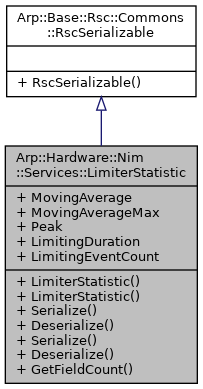

Inheritance diagram for Arp::Hardware::Nim::Services::LimiterStatistic:

Public Member Functions
	LimiterStatistic (void)
	Constructs an LimiterStatistic instance.

	LimiterStatistic (uint32 movingAverage, uint32 movingAverageMax, uint32 peak, uint64 limitingDuration, uint32 limitingEventCount)
	Constructs an LimiterStatistic instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...

void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint32	MovingAverage = 0
	Moving average over 1 second (1000 measurement cycles per second).

uint32	MovingAverageMax = 0
	Max value of Arp.Hardware.Nim.Services.LimiterStatistic.MovingAverage.

uint32	Peak = 0
	Max value of a single 1 milli second measurement cycle.

uint64	LimitingDuration = 0
	Sum of time the limiter was limiting since last reset (microseconds).

uint32	LimitingEventCount = 0
	Number of limiting events since last reset.

Detailed Description

Statistical values for the NetloadLimiter

Member Function Documentation

void Arp::Hardware::Nim::Services::LimiterStatistic::Deserialize ( JRscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader Reference to RscReader.

void Arp::Hardware::Nim::Services::LimiterStatistic::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Hardware::Nim::Services::LimiterStatistic::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Hardware::Nim::Services::LimiterStatistic::Serialize ( JRscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer Reference to RscWriter

void Arp::Hardware::Nim::Services::LimiterStatistic::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
