Base class for RSC service proxies. More...

#include <RscServiceProxyBase.hxx>

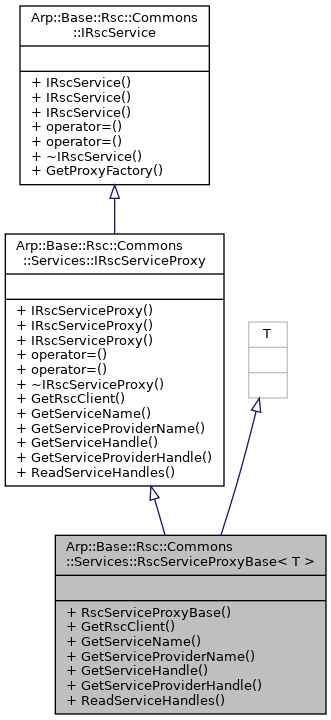

Inheritance diagram for Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >:

Public Member Functions
	RscServiceProxyBase (RscHandle providerHandle, RscHandle serviceHandle, RscClient &rscClient)
	Constructs a RscServiceProxyBase instance. More...

RscClient &	GetRscClient (void) const
	Gets the RscClient to be used for remote or ipc communication. More...

String	GetServiceName (void) const override
	Gets the service name of this proxy. More...

String	GetServiceProviderName (void) const override
	Gets the service provider name of this proxy. More...

RscHandle	GetServiceHandle (void) override
	Gets the service handle. More...

RscHandle	GetServiceProviderHandle (void) override
	Gets the service provider handle. More...

void	ReadServiceHandles (void) override
	Updates the service handle of the remote service instance. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
	IRscServiceProxy (void)=default
	The default constructor.

	IRscServiceProxy (const IRscServiceProxy &arg)=delete
	The deleted copy constructor.

	IRscServiceProxy (IRscServiceProxy &&arg) noexcept=default
	The default move constructor. More...

IRscServiceProxy &	operator= (const IRscServiceProxy &)=delete
	The deleted assignment operator.

IRscServiceProxy &	operator= (IRscServiceProxy &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscServiceProxy (void)=default
	Destructs this instance and frees all resources.

virtual RscClient &	GetRscClient (void) const =0
	Gets the RscClient of this proxy. More...

virtual String	GetServiceName (void) const =0
	Gets the service name of this proxy. More...

virtual String	GetServiceProviderName (void) const =0
	Gets the service provider name of this proxy. More...

virtual RscHandle	GetServiceHandle (void)=0
	Gets the service handle of the remote service instance. More...

virtual RscHandle	GetServiceProviderHandle (void)=0
	Gets the service handle of the remote service-provider instance. More...

virtual void	ReadServiceHandles (void)=0
	Updates the service handle of the remote service instance. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Protected Types
using	ServiceType = T
	The service interface type (e.g. IDemoService)

Additional Inherited Members
Public Types inherited from Arp::Base::Rsc::Commons::Services::IRscServiceProxy
using	Ptr = std::shared_ptr< IRscServiceProxy >
	The pointer type of this type.

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

template<class T>
class Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >

Base class for RSC service proxies.

Template Parameters

T	The service proxy type.

This class is not intended for direct use, but required by RscGenerator to implement services.

Constructor & Destructor Documentation

◆ RscServiceProxyBase()

template<class T >

Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::RscServiceProxyBase	(	RscHandle	providerHandle,
		RscHandle	serviceHandle,
		RscClient &	rscClient
	)

inline

Constructs a RscServiceProxyBase instance.

Parameters

providerHandle	The service provider handle.
serviceHandle	The service handle.
rscClient	The RscClient to be used for remote or ipc communication.

Template Parameters

T	The type of the RSC service interface.

Member Function Documentation

◆ GetRscClient()

template<class T >

RscClient & Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::GetRscClient ( void ) const

inlinevirtual

Gets the RscClient to be used for remote or ipc communication.

Returns: The RscClient to be used for remote or ipc communication.

Template Parameters

T	The service interface type.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceHandle()

template<class T >

RscHandle Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::GetServiceHandle ( void )

inlineoverridevirtual

Gets the service handle.

Returns: The service handle.

Template Parameters

T	The service interface type.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceName()

template<class T >

String Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::GetServiceName ( void ) const

overridevirtual

Gets the service name of this proxy.

Returns: The service name of this proxy.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceProviderHandle()

template<class T >

RscHandle Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::GetServiceProviderHandle ( void )

inlineoverridevirtual

Gets the service provider handle.

Returns: The service provider handle.

Template Parameters

T	The service interface type.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ GetServiceProviderName()

template<class T >

String Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::GetServiceProviderName ( void ) const

overridevirtual

Gets the service provider name of this proxy.

Returns: The service name provider of this proxy.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

◆ ReadServiceHandles()

template<class T >

void Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >::ReadServiceHandles ( void )

inlineoverridevirtual

Updates the service handle of the remote service instance.

Implements Arp::Base::Rsc::Commons::Services::IRscServiceProxy.

The documentation for this class was generated from the following file:

Arp/Base/Rsc/Commons/Services/RscServiceProxyBase.hxx
