Arp::Base::Rsc::Commons::Services::IRscServiceProxy Class Reference

Interface of RSC service proxies used on client side to invoke a service remotely. More...

#include <IRscServiceProxy.hpp>

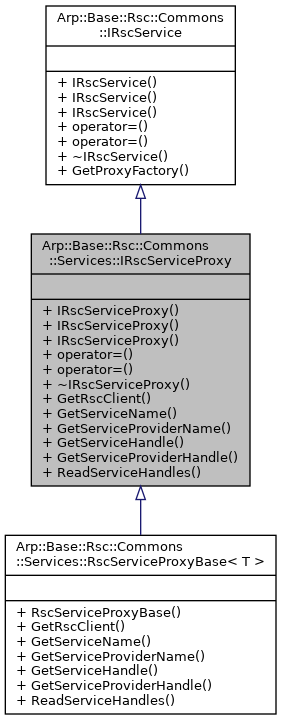

Inheritance diagram for Arp::Base::Rsc::Commons::Services::IRscServiceProxy:

Public Types
using	Ptr = std::shared_ptr< IRscServiceProxy >
	The pointer type of this type.
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IRscServiceProxy (void)=default
	The default constructor.
	IRscServiceProxy (const IRscServiceProxy &arg)=delete
	The deleted copy constructor.
	IRscServiceProxy (IRscServiceProxy &&arg) noexcept=default
	The default move constructor. More...
IRscServiceProxy &	operator= (const IRscServiceProxy &)=delete
	The deleted assignment operator.
IRscServiceProxy &	operator= (IRscServiceProxy &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscServiceProxy (void)=default
	Destructs this instance and frees all resources.
virtual RscClient &	GetRscClient (void) const =0
	Gets the RscClient of this proxy. More...
virtual String	GetServiceName (void) const =0
	Gets the service name of this proxy. More...
virtual String	GetServiceProviderName (void) const =0
	Gets the service provider name of this proxy. More...
virtual RscHandle	GetServiceHandle (void)=0
	Gets the service handle of the remote service instance. More...
virtual RscHandle	GetServiceProviderHandle (void)=0
	Gets the service handle of the remote service-provider instance. More...
virtual void	ReadServiceHandles (void)=0
	Updates the service handle of the remote service instance. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Additional Inherited Members
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

Interface of RSC service proxies used on client side to invoke a service remotely.

This interface is not intended for direct use, but required by RscGenerator to implement services.

Constructor & Destructor Documentation

IRscServiceProxy()

Arp::Base::Rsc::Commons::Services::IRscServiceProxy::IRscServiceProxy ( IRscServiceProxy &&  arg )

defaultnoexcept

The default move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

GetRscClient()

virtual RscClient & Arp::Base::Rsc::Commons::Services::IRscServiceProxy::GetRscClient ( void  ) const

pure virtual

Gets the RscClient of this proxy.

Returns

The RscClient.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

GetServiceHandle()

virtual RscHandle Arp::Base::Rsc::Commons::Services::IRscServiceProxy::GetServiceHandle ( void  )

pure virtual

Gets the service handle of the remote service instance.

Returns

The service handle of the remote service instance.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

GetServiceName()

virtual String Arp::Base::Rsc::Commons::Services::IRscServiceProxy::GetServiceName ( void  ) const

pure virtual

Gets the service name of this proxy.

Returns

The service name of this proxy.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

GetServiceProviderHandle()

virtual RscHandle Arp::Base::Rsc::Commons::Services::IRscServiceProxy::GetServiceProviderHandle ( void  )

pure virtual

Gets the service handle of the remote service-provider instance.

Returns

The service handle of the remote service-provider instance

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

GetServiceProviderName()

virtual String Arp::Base::Rsc::Commons::Services::IRscServiceProxy::GetServiceProviderName ( void  ) const

pure virtual

Gets the service provider name of this proxy.

Returns

The service name provider of this proxy.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

operator=()

IRscServiceProxy & Arp::Base::Rsc::Commons::Services::IRscServiceProxy::operator= ( IRscServiceProxy &&  arg )

defaultnoexcept

The default move-assignment operator.

Parameters

arg	The argument to move.

Returns

This instance.

ReadServiceHandles()

virtual void Arp::Base::Rsc::Commons::Services::IRscServiceProxy::ReadServiceHandles ( void  )

pure virtual

Updates the service handle of the remote service instance.

Implemented in Arp::Base::Rsc::Commons::Services::RscServiceProxyBase< T >.

---

The documentation for this class was generated from the following file:

• Arp/Base/Rsc/Commons/Services/IRscServiceProxy.hpp
