Arp::System::Nm::StringPayload Class Reference

Payload class to send a String More...

#include <StringPayload.hpp>

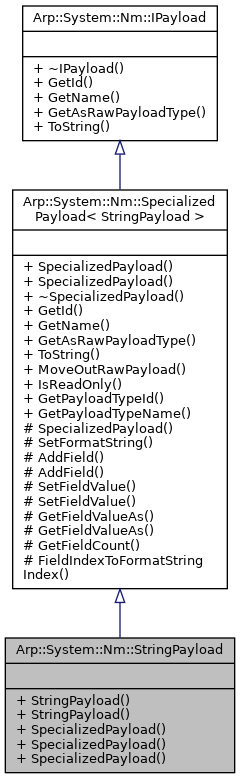

Inheritance diagram for Arp::System::Nm::StringPayload:

Public Types
using	ArgumentsType = const char *
	ArgumentsType to be used with NonBlockingNotificationRegistration3 More...
Public Types inherited from Arp::System::Nm::SpecializedPayload< StringPayload >
using	ValueType = RawPayloadType::value_type
using	FieldType = Arp::System::Rsc::Services::RscType

Public Member Functions
	StringPayload (const String &payload)
	Creates a payload with a string More...
	StringPayload (const char *payload)
	Creates a payload with a string More...
	SpecializedPayload (const Notification &notification)
	Creates a view on a Notification object More...
	SpecializedPayload (const GenericPayload &payloadArg)
	Creates a view on a GenericPayload object More...
	SpecializedPayload (const String &formatString)
	Creates a SpecializedPayload with an format string More...
Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< StringPayload >
	SpecializedPayload (const Notification &notification)
	Creates a view on a Notification object More...
	SpecializedPayload (const GenericPayload &payloadArg)
	Creates a view on a GenericPayload object More...
PayloadTypeIdType	GetId () const final
	Returns the PayloadTypeId More...
const String	GetName () const final
	Returns the PayloadTypeName More...
const RawPayloadType &	GetAsRawPayloadType () const final
	Returns a reference to the raw payload object More...
const String	ToString () const override
	Get a human readable string representation More...
RawPayloadType &&	MoveOutRawPayload ()
bool	IsReadOnly () const
	Returns true if this object is a view on a Payload More...

Additional Inherited Members
Static Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< StringPayload >
static PayloadTypeIdType	GetPayloadTypeId ()
	Returns the PayloadTypeId More...
static const String	GetPayloadTypeName ()
	Returns the PayloadType name More...
Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< StringPayload >
	SpecializedPayload (const String &formatString)
	Creates a SpecializedPayload with an format string More...
void	SetFormatString (const String &formatString)
size_t	AddField ()
	Adds a payload field More...
size_t	AddField ()
	Adds a payload field More...
void	SetFieldValue (size_t fieldIndex, const T &value)
	Sets the value of a payload field More...
void	SetFieldValue (size_t fieldIndex, T value)
	Sets the value of a payload field More...
const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...
const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...
size_t	GetFieldCount () const
	Gets the number of fields in the payload More...
Static Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< StringPayload >
static size_t	FieldIndexToFormatStringIndex (size_t fieldIndex)

Detailed Description

Payload class to send a String

The payload is passed as contructor argument. If the string is longer than the RawPayloadLegth The String is split into multiple payload fields. The format string is adjusted so the string can be reconstructed.

Member Typedef Documentation

ArgumentsType

using Arp::System::Nm::StringPayload::ArgumentsType = const char*

ArgumentsType to be used with NonBlockingNotificationRegistration3

Constructor & Destructor Documentation

StringPayload() [1/2]

Arp::System::Nm::StringPayload::StringPayload ( const String &  payload )

explicit

Creates a payload with a string

Parameters

str	payload value

StringPayload() [2/2]

Arp::System::Nm::StringPayload::StringPayload ( const char *  payload )

explicit

Creates a payload with a string

Parameters

str	payload value

Member Function Documentation

SpecializedPayload() [1/3]

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload

explicit

Creates a view on a GenericPayload object

The GenericPayload is just referenced so it must stay alive to avoid dangling references.

SpecializedPayload() [2/3]

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload

explicit

Creates a view on a Notification object

The Notification is just referenced so it must stay alive to avoid dangling references.

SpecializedPayload() [3/3]

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload

explicit

Creates a SpecializedPayload with an format string

Parameters

formatString

Formatstring to generate a huiman readable representation

---

The documentation for this class was generated from the following file:

• Arp/System/Nm/StringPayload.hpp
