Base class for custom Payload classes More...

#include <SpecializedPayload.hpp>

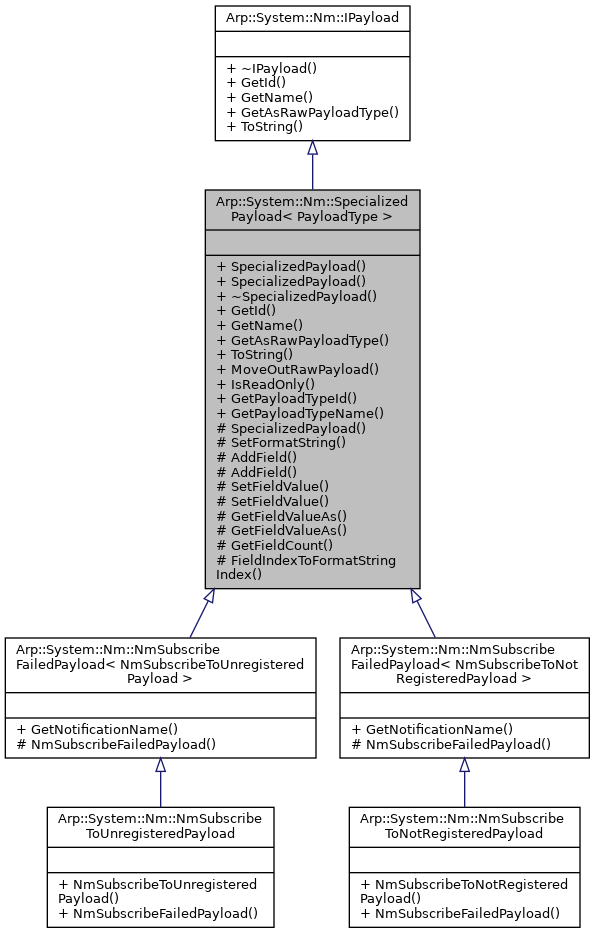

Inheritance diagram for Arp::System::Nm::SpecializedPayload< PayloadType >:

Public Types
using	ValueType = RawPayloadType::value_type

using	FieldType = Arp::System::Rsc::Services::RscType

Public Member Functions
	SpecializedPayload (const Notification &notification)
	Creates a view on a Notification object More...

	SpecializedPayload (const GenericPayload &payloadArg)
	Creates a view on a GenericPayload object More...

PayloadTypeIdType	GetId () const final
	Returns the PayloadTypeId More...

const String	GetName () const final
	Returns the PayloadTypeName More...

const RawPayloadType &	GetAsRawPayloadType () const final
	Returns a reference to the raw payload object More...

const String	ToString () const override
	Get a human readable string representation More...

RawPayloadType &&	MoveOutRawPayload ()

bool	IsReadOnly () const
	Returns true if this object is a view on a Payload More...

Static Public Member Functions
static PayloadTypeIdType	GetPayloadTypeId ()
	Returns the PayloadTypeId More...

static const String	GetPayloadTypeName ()
	Returns the PayloadType name More...

Protected Member Functions
	SpecializedPayload (const String &formatString)
	Creates a SpecializedPayload with an format string More...

void	SetFormatString (const String &formatString)

template<typename T , typename std::enable_if<(!std::is_same< T, String >::value)&&(!std::is_enum< T >::value) >::type * = nullptr>
size_t	AddField ()
	Adds a payload field More...

template<typename T , typename std::enable_if< std::is_same< T, String >::value\|\|std::is_enum< T >::value >::type * = nullptr>
size_t	AddField ()
	Adds a payload field More...

template<typename T , typename std::enable_if< !std::is_enum< T >::value >::type * = nullptr>
void	SetFieldValue (size_t fieldIndex, const T &value)
	Sets the value of a payload field More...

template<typename T , typename std::enable_if< std::is_enum< T >::value >::type * = nullptr>
void	SetFieldValue (size_t fieldIndex, T value)
	Sets the value of a payload field More...

template<typename T , typename std::enable_if< !std::is_enum< T >::value >::type * = nullptr>
const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

template<typename T , typename std::enable_if< std::is_enum< T >::value >::type * = nullptr>
const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

size_t	GetFieldCount () const
	Gets the number of fields in the payload More...

Static Protected Member Functions
static size_t	FieldIndexToFormatStringIndex (size_t fieldIndex)

Friends
class	LongStringPayloadField

Detailed Description

template<typename PayloadType>
class Arp::System::Nm::SpecializedPayload< PayloadType >

Base class for custom Payload classes

Derive from this class to implement a custom notification payload.

Do not change the order of the defined payload fields. Otherwise the fields could be intepreted wrong resulting in exceptions.

Typically a derived class contains a member to store the field index for each payload field. The AddField method should be called using direct member initialization so these calls are generated by the compiler for all constructors. The constructors of this base class should be made avaibale by a using directive. (using SpecializedPaylod::SpecializedPayload;)

Implement a constructor of the derived class taking the payload field values as arguments and use SetFieldValue to store them.

Added Get methods to return the payload field with the correct type.

Constructor & Destructor Documentation

◆ SpecializedPayload() [1/3]

template<typename PayloadType >

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload ( const Notification & notification )

explicit

Creates a view on a Notification object

The Notification is just referenced so it must stay alive to avoid dangling references.

◆ SpecializedPayload() [2/3]

template<typename PayloadType >

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload ( const GenericPayload & payloadArg )

explicit

Creates a view on a GenericPayload object

The GenericPayload is just referenced so it must stay alive to avoid dangling references.

◆ SpecializedPayload() [3/3]

template<typename PayloadType >

Arp::System::Nm::SpecializedPayload< PayloadType >::SpecializedPayload ( const String & formatString )

explicitprotected

Creates a SpecializedPayload with an format string

Parameters

formatString Formatstring to generate a huiman readable representation

Member Function Documentation

◆ AddField() [1/2]

template<typename PayloadType >

template<typename T , typename std::enable_if<(!std::is_same< T, String >::value)&&(!std::is_enum< T >::value) >::type * = nullptr>

size_t Arp::System::Nm::SpecializedPayload< PayloadType >::AddField ( )

inlineprotected

Adds a payload field

Returns: field index of the added field

The type of the field is defined by the template parameter T.

◆ AddField() [2/2]

template<typename PayloadType >

template<typename T , typename std::enable_if< std::is_same< T, String >::value||std::is_enum< T >::value >::type * = nullptr>

size_t Arp::System::Nm::SpecializedPayload< PayloadType >::AddField ( )

inlineprotected

Adds a payload field

Returns: field index of the added field

The type of the field is defined by the template parameter T. Specialization for strings and enumerations. Enumerations are stored as strings to enable human readability.

◆ GetAsRawPayloadType()

template<typename PayloadType >

const RawPayloadType & Arp::System::Nm::SpecializedPayload< PayloadType >::GetAsRawPayloadType ( ) const

finalvirtual

Returns a reference to the raw payload object

The reference object must not be destroyed while the reference is used!

Implements Arp::System::Nm::IPayload.

◆ GetFieldCount()

template<typename PayloadType >

size_t Arp::System::Nm::SpecializedPayload< PayloadType >::GetFieldCount ( void ) const

protected

Gets the number of fields in the payload

Returns: the number of fields in the payload

◆ GetFieldValueAs() [1/2]

template<typename PayloadType >

template<typename T , typename std::enable_if< !std::is_enum< T >::value >::type * = nullptr>

const T Arp::System::Nm::SpecializedPayload< PayloadType >::GetFieldValueAs ( size_t fieldIndex ) const

inlineprotected

Gets a field value with the specified type

Parameters

fieldIndex index of the field to get

Returns: value of the field as type T

◆ GetFieldValueAs() [2/2]

template<typename PayloadType >

template<typename T , typename std::enable_if< std::is_enum< T >::value >::type * = nullptr>

const T Arp::System::Nm::SpecializedPayload< PayloadType >::GetFieldValueAs ( size_t fieldIndex ) const

inlineprotected

Gets a field value with the specified type

Parameters

fieldIndex index of the field to get

Returns: value of the field as type T

Specialization for enumerations. Enumerations are stored as strings to enable human readability.

◆ GetId()

template<typename PayloadType >

PayloadTypeIdType Arp::System::Nm::SpecializedPayload< PayloadType >::GetId ( ) const

finalvirtual

Returns the PayloadTypeId

Implements Arp::System::Nm::IPayload.

◆ GetName()

template<typename PayloadType >

const String Arp::System::Nm::SpecializedPayload< PayloadType >::GetName ( ) const

finalvirtual

Returns the PayloadTypeName

Implements Arp::System::Nm::IPayload.

◆ GetPayloadTypeId()

template<typename PayloadType >

PayloadTypeIdType Arp::System::Nm::SpecializedPayload< PayloadType >::GetPayloadTypeId

static

Returns the PayloadTypeId

This funtion uses the NotificationManager internally to query the id.

◆ GetPayloadTypeName()

template<typename PayloadType >

const String Arp::System::Nm::SpecializedPayload< PayloadType >::GetPayloadTypeName

static

Returns the PayloadType name

The payload type name is generated from the class name

◆ IsReadOnly()

template<typename PayloadType >

bool Arp::System::Nm::SpecializedPayload< PayloadType >::IsReadOnly

Returns true if this object is a view on a Payload

◆ SetFieldValue() [1/2]

template<typename PayloadType >

template<typename T , typename std::enable_if< !std::is_enum< T >::value >::type * = nullptr>

void Arp::System::Nm::SpecializedPayload< PayloadType >::SetFieldValue	(	size_t	fieldIndex,
		const T &	value
	)

inlineprotected

Sets the value of a payload field

Parameters

fieldIndex	index of the field to set
value	new value

◆ SetFieldValue() [2/2]

template<typename PayloadType >

template<typename T , typename std::enable_if< std::is_enum< T >::value >::type * = nullptr>

void Arp::System::Nm::SpecializedPayload< PayloadType >::SetFieldValue	(	size_t	fieldIndex,
		T	value
	)

inlineprotected

Sets the value of a payload field

Parameters

fieldIndex	index of the field to set
value	new value

Specialization for enumerations. Enumerations are stored as strings to enable human readability.

◆ SetFormatString()

template<typename PayloadType >

void Arp::System::Nm::SpecializedPayload< PayloadType >::SetFormatString ( const String & formatString )

protected

< summary>Sets the formatString This function should only be used, if the FormatString cannot be determined as a constructor parameter. summary>Retuns the index in the format string for a given payload field

◆ ToString()

template<typename PayloadType >

const String Arp::System::Nm::SpecializedPayload< PayloadType >::ToString ( ) const

overridevirtual

Get a human readable string representation

Implements Arp::System::Nm::IPayload.

The documentation for this class was generated from the following file:

Arp/System/Nm/SpecializedPayload.hpp
