Primary access to the NotificationManager More...

#include <NotificationManager.hpp>

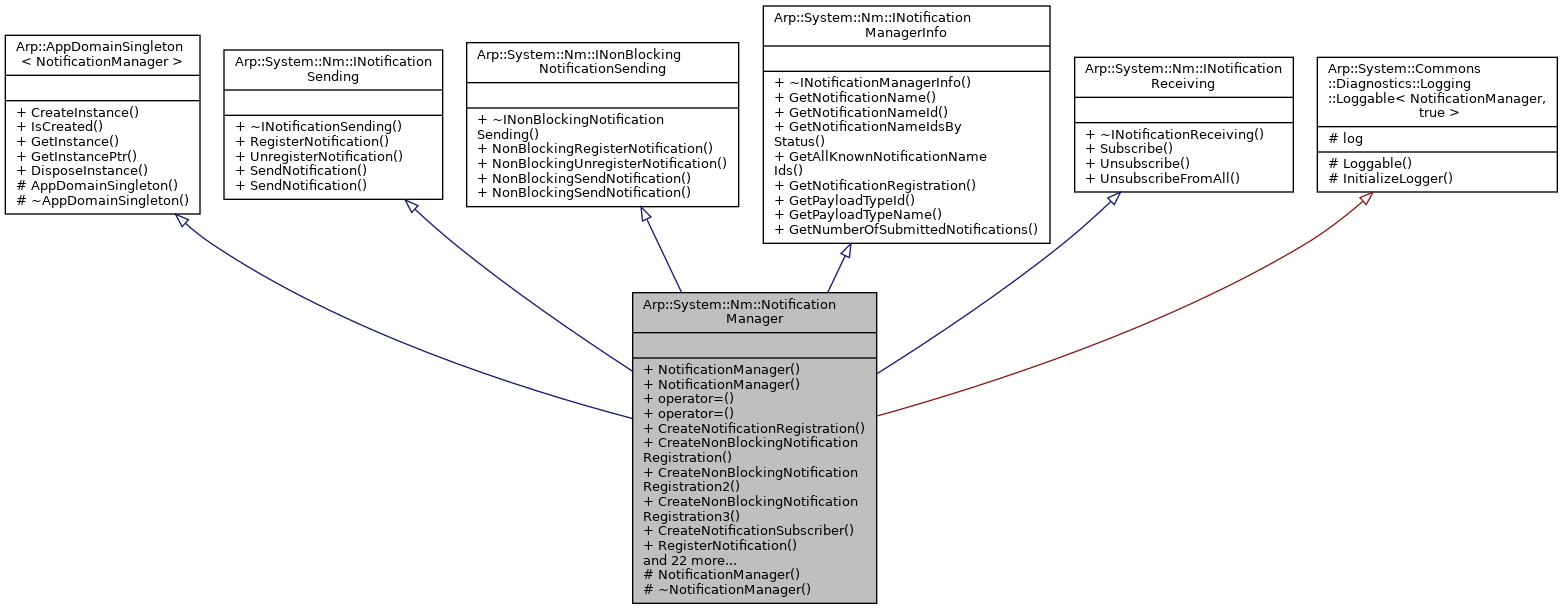

Inheritance diagram for Arp::System::Nm::NotificationManager:

Public Member Functions
	NotificationManager (const NotificationManager &)=delete

	NotificationManager (NotificationManager &&)=delete

NotificationManager &	operator= (const NotificationManager &)=delete

NotificationManager &	operator= (NotificationManager &&)=delete

template<typename PayloadType >
NotificationRegistration< PayloadType >	CreateNotificationRegistration (const String &notificationName, const String &senderName, Severity severity)
	Creates a NotificationRegistration proxy More...

template<typename PayloadType >
NonBlockingNotificationRegistration< PayloadType >	CreateNonBlockingNotificationRegistration (const String &notificationName, const String &senderName, Severity severity)
	Creates a NonBlockingNotificationRegistration proxy More...

template<typename PayloadType >
NonBlockingNotificationRegistration< PayloadType >	CreateNonBlockingNotificationRegistration2 (const String &notificationName, const String &senderName, Severity severity)
	Creates a NonBlockingNotificationRegistration proxy More...

template<typename PayloadType , typename ArgumentsType = typename PayloadType::ArgumentsType>
NonBlockingNotificationRegistration3< PayloadType, ArgumentsType >	CreateNonBlockingNotificationRegistration3 (const String &notificationName, const String &senderName, Severity severity, size_t argumentsBufferCapacity=GetDefaultArgumentsBufferCapacity())
	Creates a NonBlockingNotificationRegistration3 proxy More...

NotificationSubscriber	CreateNotificationSubscriber (const String &notificationName)
	Creates a NotificationSubscriber proxy More...

NotificationNameIdType	RegisterNotification (const String &notificationName, const String &senderName, Severity severity, PayloadTypeIdType payloadTypeId) override
	Registers a new Notification More...

void	UnregisterNotification (NotificationNameIdType notificationNameId) override
	Unregisters a Nototification More...

NotificationIdType	SendNotification (NotificationNameIdType notificationNameId, Arp::DateTime timestamp, const RawPayloadType &payload) override
	Sends a notification More...

NotificationIdType	SendNotification (NotificationNameIdType notificationNameId, Arp::DateTime timestamp, const IPayload &payload) override
	Sends a notification More...

Future< NotificationNameIdType >	NonBlockingRegisterNotification (const String &notificationName, const String &senderName, Severity severity, PayloadTypeIdType payloadTypeId) override
	Registers a new Notification (non-blocking) More...

void	NonBlockingRegisterNotification (const String &notificationName, const String &senderName, Severity severity, PayloadTypeIdType payloadTypeId, Future< NotificationNameIdType > result)

Future< void >	NonBlockingUnregisterNotification (NotificationNameIdType notificationNameId) override
	Unregisters a Nototification (non-blocking) More...

void	NonBlockingUnregisterNotification (NotificationNameIdType notificationNameId, Future< void > result)

Future< NotificationIdType >	NonBlockingSendNotification (NotificationNameIdType notificationNameId, Arp::DateTime timestamp, const RawPayloadType &payload) override
	Sends a notification (non-blocking) More...

void	NonBlockingSendNotification (NotificationNameIdType notificationNameId, Arp::DateTime timestamp, std::function< RawPayloadType()> createPayloadFunctor, Future< NotificationIdType > result)

Future< NotificationIdType >	NonBlockingSendNotification (NotificationNameIdType notificationNameId, Arp::DateTime timestamp, const IPayload &payload) override
	Sends a notification (non-blocking) More...

const String	GetNotificationName (NotificationNameIdType notificationNameId) const override
	Queries the NotifictionName More...

const NotificationNameIdType	GetNotificationNameId (const String &notificationName) override
	Queries the id of an NotificationName More...

const NotificationNameIdList	GetNotificationNameIdsByStatus (const NotificationRegistrationStatus &status) const override
	Queries the ids of Notifications with a given NotificationRegistrationStatus More...

const NotificationNameIdList	GetAllKnownNotificationNameIds () const override
	Queries of all known NotificationNameIds More...

const NotificationRegistrationInfo	GetNotificationRegistration (NotificationNameIdType notificationNameId) const override
	Queries information about an Notification More...

const PayloadTypeIdType	GetPayloadTypeId (const String &payloadTypeName) override
	Query an id for a given PayloadType More...

const String	GetPayloadTypeName (const PayloadTypeIdType &payloadTypeId) const override
	Query the payload type name of a given id More...

Arp::uint64	GetNumberOfSubmittedNotifications () const override
	Returns the number of Notifications submitted since startup of the controller More...

NotificationNameIdType	Subscribe (const String &notificationName, INotificationSubscriber *subscriber) override
	Subscribe to a Notification More...

void	Unsubscribe (NotificationNameIdType notificationNameId, INotificationSubscriber *subscriber) override
	Unsubscribe from a Notification More...

void	UnsubscribeFromAll (INotificationSubscriber *subscriber) override
	Unsubscribe from all Notification More...

void	ReplaceSubscriber (INotificationSubscriber oldSubscriber, INotificationSubscriber newSubscriber)

Protected Member Functions
	NotificationManager (size_t nonBlockingNotificationSendingProxyQueueLength=128)

Protected Member Functions inherited from Arp::AppDomainSingleton< NotificationManager >
	AppDomainSingleton (void)=default
	The protected default constructor. More...

	~AppDomainSingleton (void)=default
	The protected default destructor. More...

Friends
class	AppDomainSingleton< NotificationManager >

class	NonBlockingNotificationSendingAdapter

Additional Inherited Members
Static Public Member Functions inherited from Arp::AppDomainSingleton< NotificationManager >
static NotificationManager &	CreateInstance (Args &&... args)
	Creates this singleton instance. More...

static bool	IsCreated (void)
	Determines if this singleton instance is created yet. More...

static NotificationManager &	GetInstance (void)
	Gets a reference of the singleton instance. More...

static NotificationManager *	GetInstancePtr (void)
	Gets a pointer to the singleton instance. More...

static void	DisposeInstance (void)
	Disposes this singleton instance. More...

Protected Types inherited from Arp::AppDomainSingleton< NotificationManager >
typedef AppDomainSingleton< NotificationManager >	SingletonBase
	Defines this type to be used from derived classes. More...

Detailed Description

Primary access to the NotificationManager

The NotificationManager provides a communication system with 1:n communication and loose coupling between components. Notifications contain some meta data like name and timestamp and also a payload defined by the sender. The payload should be defined by deriving a class from SpecializedPayload. See namespace Arp::System::NmPayload for examples.

The NotificationManager is implemented as a singleton. To access it use NotificationManager::GetInstance().

To send notifications they must be registered in advance. The simplest way is to use a NotificationRegistration object created by CreateNotificationRegistration(...). This acts a a proxy like a smart pointer.

To receive a notification a class must implement the INotificationSubscriber interface and subscribe to a Notification. This can be simplified using CreateNotificationSubscriber(...) method to create a NotificationSubscriber and add a callback function to its OnNotification event.

Member Function Documentation

◆ CreateNonBlockingNotificationRegistration()

template<typename PayloadType >

NonBlockingNotificationRegistration< PayloadType > Arp::System::Nm::NotificationManager::CreateNonBlockingNotificationRegistration	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity
	)

Creates a NonBlockingNotificationRegistration proxy

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification

Deprecated! May cause jitter up to multiple milliseconds. Use CreateNonBlockingNotificationRegistration3 instead

The template parameter PayloadType indicates the Payload class to be used when sending Notifications.

◆ CreateNonBlockingNotificationRegistration2()

template<typename PayloadType >

NonBlockingNotificationRegistration< PayloadType > Arp::System::Nm::NotificationManager::CreateNonBlockingNotificationRegistration2	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity
	)

Creates a NonBlockingNotificationRegistration proxy

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification

Deprecated! May cause jitter up to multiple milliseconds. Use CreateNonBlockingNotificationRegistration3 instead

The template parameter PayloadType indicates the Payload class to be used when sending Notifications. When the proxy is created with this function, the future objects returned from the SendNotification function are always the same object! This avoids creating new future objects and gives a significant performance gain. If you need different future objects use CreateNonBlockingNotificationRegistration.

◆ CreateNonBlockingNotificationRegistration3()

template<typename PayloadType , typename ArgumentsType >

NonBlockingNotificationRegistration3< PayloadType, ArgumentsType > Arp::System::Nm::NotificationManager::CreateNonBlockingNotificationRegistration3	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity,
		size_t	argumentsBufferCapacity = `GetDefaultArgumentsBufferCapacity()`
	)

Creates a NonBlockingNotificationRegistration3 proxy

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification

The template parameter PayloadType indicates the Payload class to be used when sending Notifications.

The typename ArgumentsType must define one type to be used to create the PayloadType.

See NonBlockingNotificationRegistration3's documentation for further details.

◆ CreateNotificationRegistration()

template<typename PayloadType >

NotificationRegistration< PayloadType > Arp::System::Nm::NotificationManager::CreateNotificationRegistration	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity
	)

Creates a NotificationRegistration proxy

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification

The template parameter PayloadType indicates the Payload class to be used when sending Notifications.

◆ CreateNotificationSubscriber()

NotificationSubscriber Arp::System::Nm::NotificationManager::CreateNotificationSubscriber ( const String & notificationName )

Creates a NotificationSubscriber proxy

Parameters

notificationName Notification name to subscribe to

◆ GetAllKnownNotificationNameIds()

const NotificationNameIdList Arp::System::Nm::NotificationManager::GetAllKnownNotificationNameIds ( ) const

overridevirtual

Queries of all known NotificationNameIds

Returns: collection of all known NotificationNameIds

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetNotificationName()

const String Arp::System::Nm::NotificationManager::GetNotificationName ( NotificationNameIdType notificationNameId ) const

overridevirtual

Queries the NotifictionName

Parameters

notificationNameId NotificationNameId

Returns: NotificationName

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetNotificationNameId()

const NotificationNameIdType Arp::System::Nm::NotificationManager::GetNotificationNameId ( const String & notificationName )

overridevirtual

Queries the id of an NotificationName

Parameters

notificationName NotificationName

Returns: NotificationNameId

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetNotificationNameIdsByStatus()

const NotificationNameIdList Arp::System::Nm::NotificationManager::GetNotificationNameIdsByStatus ( const NotificationRegistrationStatus & status ) const

overridevirtual

Queries the ids of Notifications with a given NotificationRegistrationStatus

Parameters

status status of the queried Notifications

Returns: collection of matching NotificationNameIds

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetNotificationRegistration()

const NotificationRegistrationInfo Arp::System::Nm::NotificationManager::GetNotificationRegistration ( NotificationNameIdType notificationNameId ) const

overridevirtual

Queries information about an Notification

Parameters

notificationNameId NotificationNameId

Returns: data structure to describe the Notification

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetNumberOfSubmittedNotifications()

Arp::uint64 Arp::System::Nm::NotificationManager::GetNumberOfSubmittedNotifications ( ) const

overridevirtual

Returns the number of Notifications submitted since startup of the controller

Returns: number of submitted notifications

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetPayloadTypeId()

const PayloadTypeIdType Arp::System::Nm::NotificationManager::GetPayloadTypeId ( const String & payloadTypeName )

overridevirtual

Query an id for a given PayloadType

Parameters

payloadTypeName Name fo the payload type

Returns: id of the payload type

Implements Arp::System::Nm::INotificationManagerInfo.

◆ GetPayloadTypeName()

const String Arp::System::Nm::NotificationManager::GetPayloadTypeName ( const PayloadTypeIdType & payloadTypeId ) const

overridevirtual

Query the payload type name of a given id

Parameters

payloadTypeId id of the payload type

Returns: name of the payload type

Implements Arp::System::Nm::INotificationManagerInfo.

◆ NonBlockingRegisterNotification()

Future<NotificationNameIdType> Arp::System::Nm::NotificationManager::NonBlockingRegisterNotification	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity,
		PayloadTypeIdType	payloadTypeId
	)

overridevirtual

Registers a new Notification (non-blocking)

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification
payloadTypeId	id of the payload type

Returns: NotificationNameId (Future), necessary for sending and unregistering

Implements Arp::System::Nm::INonBlockingNotificationSending.

◆ NonBlockingSendNotification() [1/2]

Future<NotificationIdType> Arp::System::Nm::NotificationManager::NonBlockingSendNotification	(	NotificationNameIdType	notificationNameId,
		Arp::DateTime	timestamp,
		const IPayload &	payload
	)

overridevirtual

Sends a notification (non-blocking)

Parameters

notificationNameId	id of the NotificationName to send
timestamp	Current timestamp
payload	payload to send

Returns: NotificationId (Future)

Implements Arp::System::Nm::INonBlockingNotificationSending.

◆ NonBlockingSendNotification() [2/2]

Future<NotificationIdType> Arp::System::Nm::NotificationManager::NonBlockingSendNotification	(	NotificationNameIdType	notificationNameId,
		Arp::DateTime	timestamp,
		const RawPayloadType &	payload
	)

overridevirtual

Sends a notification (non-blocking)

Parameters

notificationNameId	id of the NotificationName to send
timestamp	Current timestamp
payload	payload to send

Returns: NotificationId (Future)

Implements Arp::System::Nm::INonBlockingNotificationSending.

◆ NonBlockingUnregisterNotification()

Future<void> Arp::System::Nm::NotificationManager::NonBlockingUnregisterNotification ( NotificationNameIdType notificationNameId )

overridevirtual

Unregisters a Nototification (non-blocking)

Parameters

notificationNameId id of the NotificationName to unregister

Returns: Future to check for exceptions or completion

Implements Arp::System::Nm::INonBlockingNotificationSending.

◆ RegisterNotification()

NotificationNameIdType Arp::System::Nm::NotificationManager::RegisterNotification	(	const String &	notificationName,
		const String &	senderName,
		Severity	severity,
		PayloadTypeIdType	payloadTypeId
	)

overridevirtual

Registers a new Notification

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification
payloadTypeId	id of the payload type

Returns: NotificationNameId, necessary for sending and unregistering

Implements Arp::System::Nm::INotificationSending.

◆ SendNotification() [1/2]

NotificationIdType Arp::System::Nm::NotificationManager::SendNotification	(	NotificationNameIdType	notificationNameId,
		Arp::DateTime	timestamp,
		const IPayload &	payload
	)

overridevirtual

Sends a notification

Parameters

notificationNameId	id of the NotificationName to send
timestamp	Current timestamp
payload	payload to send

Returns: NotificationId

Implements Arp::System::Nm::INotificationSending.

◆ SendNotification() [2/2]

NotificationIdType Arp::System::Nm::NotificationManager::SendNotification	(	NotificationNameIdType	notificationNameId,
		Arp::DateTime	timestamp,
		const RawPayloadType &	payload
	)

overridevirtual

Sends a notification

Parameters

notificationNameId	id of the NotificationName to send
timestamp	Current timestamp
payload	payload to send

Returns: NotificationId

Implements Arp::System::Nm::INotificationSending.

◆ Subscribe()

NotificationNameIdType Arp::System::Nm::NotificationManager::Subscribe	(	const String &	notificationName,
		INotificationSubscriber *	subscriber
	)

overridevirtual

Subscribe to a Notification

Parameters

notificationName	Name of the Notification to subscribe to
subscriber	Pointer to the ISubscriber (!= nullptr)

Implements Arp::System::Nm::INotificationReceiving.

◆ UnregisterNotification()

void Arp::System::Nm::NotificationManager::UnregisterNotification ( NotificationNameIdType notificationNameId )

overridevirtual

Unregisters a Nototification

Parameters

notificationNameId id of the NotificationName to unregister

Implements Arp::System::Nm::INotificationSending.

◆ Unsubscribe()

void Arp::System::Nm::NotificationManager::Unsubscribe	(	NotificationNameIdType	notificationNameId,
		INotificationSubscriber *	subscriber
	)

overridevirtual

Unsubscribe from a Notification

Parameters

notificationName	Name of the Notification to unsubscribe from
subscriber	Pointer to the ISubscriber (!= nullptr)

Implements Arp::System::Nm::INotificationReceiving.

◆ UnsubscribeFromAll()

void Arp::System::Nm::NotificationManager::UnsubscribeFromAll ( INotificationSubscriber * subscriber )

overridevirtual

Unsubscribe from all Notification

Parameters

subscriber Pointer to the ISubscriber (!= nullptr)

This function should be called before Subscriber is destructed!

Implements Arp::System::Nm::INotificationReceiving.

The documentation for this class was generated from the following file:

Arp/System/Nm/NotificationManager.hpp

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ CreateNonBlockingNotificationRegistration()

◆ CreateNonBlockingNotificationRegistration2()

◆ CreateNonBlockingNotificationRegistration3()

◆ CreateNotificationRegistration()

◆ CreateNotificationSubscriber()

◆ GetAllKnownNotificationNameIds()

◆ GetNotificationName()

◆ GetNotificationNameId()

◆ GetNotificationNameIdsByStatus()

◆ GetNotificationRegistration()

◆ GetNumberOfSubmittedNotifications()

◆ GetPayloadTypeId()

◆ GetPayloadTypeName()

◆ NonBlockingRegisterNotification()

◆ NonBlockingSendNotification() [1/2]

◆ NonBlockingSendNotification() [2/2]

◆ NonBlockingUnregisterNotification()

◆ RegisterNotification()

◆ SendNotification() [1/2]

◆ SendNotification() [2/2]

◆ Subscribe()

◆ UnregisterNotification()

◆ Unsubscribe()

◆ UnsubscribeFromAll()
