Payload class for changes of the network configuration More...

#include <NetworkConfigurationChangedPayload.hpp>

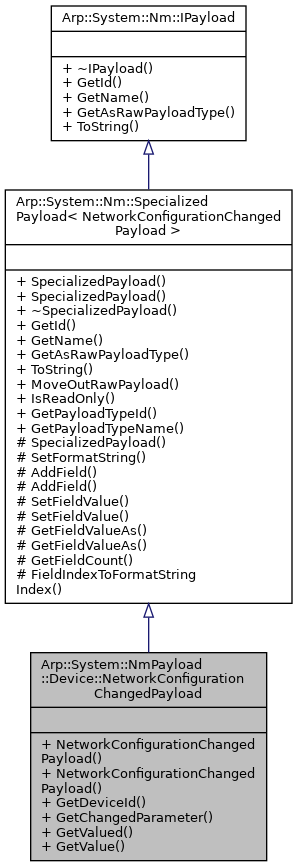

Inheritance diagram for Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload:

Public Types
using	ArgumentsType = std::tuple< uint32, const char , const char , bool >
	ArgumentsType to be used with NonBlockingNotificationRegistration3 More...

Public Types inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload >
using	ValueType = RawPayloadType::value_type

using	FieldType = Arp::System::Rsc::Services::RscType

Public Member Functions
	NetworkConfigurationChangedPayload (const ArgumentsType &args)
	Creates a payload object More...

	NetworkConfigurationChangedPayload (uint32 deviceId, const String &parameter, const String &value, bool successful)
	Creates a payload object More...

uint32	GetDeviceId () const
	Returns the id of the affected device More...

String	GetChangedParameter () const
	Returns the name of the changed parameter More...

String	GetValued () const
	Returns the new value of the changed parameter More...

String	GetValue () const
	Returns the new value of the changed parameter More...

Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload >
	SpecializedPayload (const Notification &notification)
	Creates a view on a Notification object More...

	SpecializedPayload (const GenericPayload &payloadArg)
	Creates a view on a GenericPayload object More...

PayloadTypeIdType	GetId () const final
	Returns the PayloadTypeId More...

const String	GetName () const final
	Returns the PayloadTypeName More...

const RawPayloadType &	GetAsRawPayloadType () const final
	Returns a reference to the raw payload object More...

const String	ToString () const override
	Get a human readable string representation More...

RawPayloadType &&	MoveOutRawPayload ()

bool	IsReadOnly () const
	Returns true if this object is a view on a Payload More...

Additional Inherited Members
Static Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload >
static PayloadTypeIdType	GetPayloadTypeId ()
	Returns the PayloadTypeId More...

static const String	GetPayloadTypeName ()
	Returns the PayloadType name More...

Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload >
	SpecializedPayload (const String &formatString)
	Creates a SpecializedPayload with an format string More...

void	SetFormatString (const String &formatString)

size_t	AddField ()
	Adds a payload field More...

size_t	AddField ()
	Adds a payload field More...

void	SetFieldValue (size_t fieldIndex, const T &value)
	Sets the value of a payload field More...

void	SetFieldValue (size_t fieldIndex, T value)
	Sets the value of a payload field More...

const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

size_t	GetFieldCount () const
	Gets the number of fields in the payload More...

Static Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload >
static size_t	FieldIndexToFormatStringIndex (size_t fieldIndex)

Detailed Description

Payload class for changes of the network configuration

This class is used by the device interface to notify of networtk configuration changes.

Member Typedef Documentation

◆ ArgumentsType

using Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::ArgumentsType = std::tuple<uint32, const char*, const char*, bool>

ArgumentsType to be used with NonBlockingNotificationRegistration3

Constructor & Destructor Documentation

◆ NetworkConfigurationChangedPayload() [1/2]

Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::NetworkConfigurationChangedPayload ( const ArgumentsType & args )

explicit

Creates a payload object

◆ NetworkConfigurationChangedPayload() [2/2]

Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::NetworkConfigurationChangedPayload	(	uint32	deviceId,
		const String &	parameter,
		const String &	value,
		bool	successful
	)

Creates a payload object

Parameters

deviceId	id of the changed device
parameter	changed parameter (e.g. ip-address, netmask, ...)
value	new value of the changed parameter
successful	true, if the change was executed successfully

Member Function Documentation

◆ GetChangedParameter()

String Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::GetChangedParameter ( ) const

Returns the name of the changed parameter

◆ GetDeviceId()

uint32 Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::GetDeviceId ( ) const

Returns the id of the affected device

◆ GetValue()

String Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::GetValue ( ) const

Returns the new value of the changed parameter

◆ GetValued()

String Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::GetValued ( ) const
