Use this service for acyclic axioline communication More...

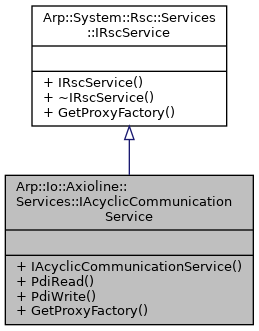

Inheritance diagram for Arp::Io::Axioline::Services::IAcyclicCommunicationService:

Public Types
using	Ptr = std::shared_ptr< IAcyclicCommunicationService >

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IAcyclicCommunicationService (void)=default
	Constructs an IAcyclicCommunicationService instance. More...

virtual PdiResult	PdiRead (const PdiParam &pdiParam, std::vector< uint8 > &data)=0
	Read a PDI object from an axioline module (blocking mode) More...

virtual PdiResult	PdiWrite (const PdiParam &pdiParam, const std::vector< uint8 > &data)=0
	Write a PDI object on an axioline module (blocking mode) More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service for acyclic axioline communication

This service is defined in library Arp.Io.Axioline.

Constructor & Destructor Documentation

Arp::Io::Axioline::Services::IAcyclicCommunicationService::IAcyclicCommunicationService ( void )

default

virtual PdiResult Arp::Io::Axioline::Services::IAcyclicCommunicationService::PdiRead	(	const PdiParam &	pdiParam,
		std::vector< uint8 > &	data
	)

pure virtual

Read a PDI object from an axioline module (blocking mode)

Parameters

pdiParam	Structure with all parameter to address an object on a module to read from Arp.Io.Axioline.Services.PdiParam
data	Data that are read from the module

Returns: Structure with error information Arp.Io.Axioline.Services.PdiResult

virtual PdiResult Arp::Io::Axioline::Services::IAcyclicCommunicationService::PdiWrite	(	const PdiParam &	pdiParam,
		const std::vector< uint8 > &	data
	)

pure virtual

Write a PDI object on an axioline module (blocking mode)

Parameters

pdiParam	Structure with all parameter to address an object on a module to write on Arp.Io.Axioline.Services.PdiParam
data	Data that shall be written on the module

Returns: Structure with error information Arp.Io.Axioline.Services.PdiResult

The documentation for this class was generated from the following file:
