#include <SubmoduleDifference.hpp>

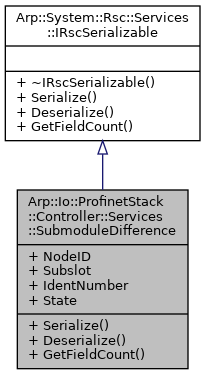

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint32	NodeID = 0
	Node ID More...

uint16	Subslot = 0
	Subslot number More...

uint32	IdentNumber = 0
	Submodule IdentNumber More...

uint16	State = 0
	Submodule state. It contains multiple information which have to be read by applying different masks on the value. More...

Detailed Description

Submodule data with differences

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ IdentNumber

uint32 Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::IdentNumber = 0

Submodule IdentNumber

◆ NodeID

uint32 Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::NodeID = 0

Node ID

◆ State

uint16 Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::State = 0

Submodule state. It contains multiple information which have to be read by applying different masks on the value.

If the highest bit is set, the state has to be intrepreted the following way:

Mask	Value	Description
0x0007 (Additional Info)	0x0000	No additional info. None of the options defined for this field are activated.
	0x0001	Takeover is not allowed. This submodule is not available for takeover by IOSAR.
0x0008 (Advice)	0x0000	There is no advice available for this submodule.
	0x0008	At least one Advice is available for this submodule.
0x0010 (Maintenance required)	0x0000	There is no maintenance required for this submodule.
	0x0010	At least one requirement for maintenance is available for this submodule.
0x0020 (Maintenance demanded)	0x0000	There is no maintenance demanded for this submodule.
	0x0020	At least one demand for maintenance is available for this submodule.
0x0040 (Fault)	0x0000	There is no Fault available for this submodule.
	0x0040	At least one Fault is available for this submodule. There is diagnosis data available for this submodule. The diagnosis data can be read using the corresponding records or IDiagnosisQueryService.
0x0780 (AR Info)	0x0000	This AR is owner of the submodule.
	0x0080	Application Ready pending. This AR is owner of the submodule but it is blocked (e.g.parameter checking pending).
	0x0100	This AR is not owner of the submodule. It is locked by superordinated means.
	0x0180	This AR is not owner of the submodule. It is owned by another IOAR.
	0x0200	This AR is not owner of the submodule. It is owned by another IOSAR.
0x7800 (Ident Info)	0x0000	OK.
	0x0800	Submodule is not the same as configured, but compatible.
	0x1000	Wrong submodule.
	0x1800	No submodule.

If the highest bit is not set, the state has to be intrepreted the following way:

Mask	Value	Description
0x7FFF (Detail)	0x0000	No submodule.
	0x0001	Wrong submodule.
	0x0002	This AR is not owner of the submodule. It is owned by an other IOAR.
	0x0004	Application Ready pending.
	0x0007	Submodule is not the same as configured, but compatible.

◆ Subslot

uint16 Arp::Io::ProfinetStack::Controller::Services::SubmoduleDifference::Subslot = 0

Subslot number

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/SubmoduleDifference.hpp
