Arp::Io::ProfinetStack::Controller::Services::IDiagnosisQueryService Class Referenceabstract

This services allows access to the diagnosis informationen of the subordinated devices. The diagnosis information of the related submodules are shadowed in a local data base. More...

#include <IDiagnosisQueryService.hpp>

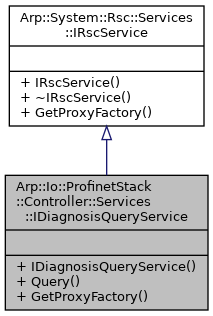

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::IDiagnosisQueryService:
Inheritance graph

Public Types

using Ptr = std::shared_ptr< IDiagnosisQueryService >

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 IDiagnosisQueryService (void)=default
 Constructs an IDiagnosisQueryService instance. More...

virtual std::vector< DiagnosisItemQuery (const DiagnosisSource &source, FilterLevel filterLevel=FilterLevel::None, ChannelQualifier filterSeverity=ChannelQualifier::Normal)=0
 Gets all diagnoses filtered by !:filterLevel and !:filterSeverity; More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

This services allows access to the diagnosis informationen of the subordinated devices. The diagnosis information of the related submodules are shadowed in a local data base.

This service is defined in library Arp.Io.ProfinetStack.

Constructor & Destructor Documentation

◆ IDiagnosisQueryService()

Arp::Io::ProfinetStack::Controller::Services::IDiagnosisQueryService::IDiagnosisQueryService ( void  )
default

Constructs an IDiagnosisQueryService instance.

Member Function Documentation

◆ Query()

virtual std::vector<DiagnosisItem> Arp::Io::ProfinetStack::Controller::Services::IDiagnosisQueryService::Query ( const DiagnosisSource source,
FilterLevel  filterLevel = FilterLevel::None,
ChannelQualifier  filterSeverity = ChannelQualifier::Normal
)
pure virtual

Gets all diagnoses filtered by !:filterLevel and !:filterSeverity;

Parameters
sourceContains additional information for the filterLevel. The relevant values of Arp.Io.ProfinetStack.Controller.Services.DiagnosisSource depends on the set Arp.Io.ProfinetStack.Controller.Services.FilterLevel
filterLevelFilters the diagnoses by the level of the device (AR, module, submodule). If set to Arp.Io.ProfinetStack.Controller.Services.FilterLevel.None all ARs are searched.
filterSeverityFilters the diagnoses by severity. The method returns only diagnoses with the set or higher severities
Returns
All diagnosis sources, that fullfills the filter criteria

<hint> If all diagnosis sources and diagnoses that are currently stored in the diagnosis database are required, the filterLevel needs to be set to Arp.Io.ProfinetStack.Controller.Services.FilterLevel.None and the filterSeverity needs to be set Arp.Io.ProfinetStack.Controller.Services.ChannelQualifier.Normal</hint>
