Arp::Services::BackupAndRestore::Services::ItemSelectionRule Class Reference

Defines a scopes of items. More...

#include <ItemSelectionRule.hpp>

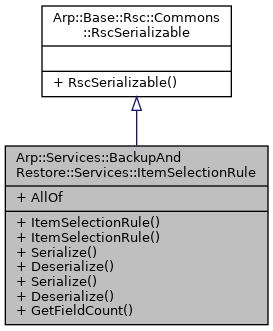

Inheritance diagram for Arp::Services::BackupAndRestore::Services::ItemSelectionRule:

Public Member Functions
	ItemSelectionRule (void)
	Constructs an ItemSelectionRule instance.
	ItemSelectionRule (const std::vector< TagCriterion > &allOf)
	Constructs an ItemSelectionRule instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...
void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
std::vector< TagCriterion >	AllOf
	All tag criteria that must be satisfied (logical AND). If empty, the rule matches all items.

Detailed Description

Defines a scopes of items.

Example to filter for runtime data of PLCnext apps.

AllOf =: [
{ Tag: "ARP_CLASS_App" },
{ Tag: "ARP_KIND_RuntimeData" }
]

Member Function Documentation

Deserialize() [1/2]

void Arp::Services::BackupAndRestore::Services::ItemSelectionRule::Deserialize

(

JRscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader

Reference to RscReader.

Deserialize() [2/2]

void Arp::Services::BackupAndRestore::Services::ItemSelectionRule::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Services::BackupAndRestore::Services::ItemSelectionRule::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize() [1/2]

void Arp::Services::BackupAndRestore::Services::ItemSelectionRule::Serialize

(

JRscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer

Reference to RscWriter

Serialize() [2/2]

void Arp::Services::BackupAndRestore::Services::ItemSelectionRule::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Services/BackupAndRestore/Services/ItemSelectionRule.hpp
• Arp/Services/BackupAndRestore/Services/ItemSelectionRule.cpp
