Use this service to manage PROFINET Controller Application Relationships (AR) More...

#include <IArDataService.hpp>

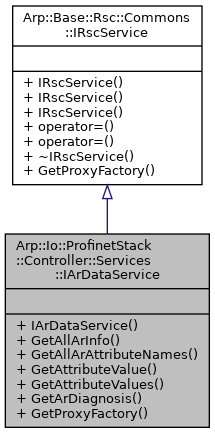

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::IArDataService:

Public Types
using	Ptr = std::shared_ptr< IArDataService >

using	GetAllArAttributeNamesResultDelegate = delegate< void(IRscReadEnumerator< RscString< 256 > > &)>

using	GetAllArInfoResultDelegate = delegate< void(IRscReadEnumerator< ArInfo > &)>

using	GetAttributeValuesAttributeNameDelegate = delegate< void(IRscWriteEnumerator< RscString< 256 > > &)>

using	GetAttributeValuesResultDelegate = delegate< void(IRscReadEnumerator< ArDataResult > &)>

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IArDataService (void)=default
	Constructs an IArDataService instance.

virtual void	GetAllArInfo (GetAllArInfoResultDelegate resultDelegate)=0
	This method returns a list of ArInfo-objects with DNS-Name and AR-User-Id of each configured profinet device More...

virtual void	GetAllArAttributeNames (uint16 arUserId, GetAllArAttributeNamesResultDelegate resultDelegate)=0
	This method returns an array of strings with all available attributes of specified AR-User-Id of which values can be read More...

virtual ArDataResult	GetAttributeValue (uint16 arUserId, const RscString< 256 > &attributeName)=0
	Read a single attribute value More...

virtual void	GetAttributeValues (uint16 arUserId, GetAttributeValuesAttributeNameDelegate attributeNameDelegate, GetAttributeValuesResultDelegate resultDelegate)=0
	Read a list of attribute values More...

virtual std::vector< DiagnosticResult >	GetArDiagnosis (const std::vector< uint16 > &arUserId)=0
	Read an array of diagnosis information More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

Use this service to manage PROFINET Controller Application Relationships (AR)

This service is defined in library Arp.Io.ProfinetStack.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Consider the following common rule when using RSC services that provide arrays or enumerators as return values or out arguments: It is always required to completely read all items from these resulting lists or enumerators.

Member Function Documentation

◆ GetAllArAttributeNames()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAllArAttributeNames	(	uint16	arUserId,
		GetAllArAttributeNamesResultDelegate	resultDelegate
	)

pure virtual

This method returns an array of strings with all available attributes of specified AR-User-Id of which values can be read

Parameters

arUserId ArUserId to specify AR of requested items

Returns: array of strings with all available attributes

◆ GetAllArInfo()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAllArInfo ( GetAllArInfoResultDelegate resultDelegate )

pure virtual

This method returns a list of ArInfo-objects with DNS-Name and AR-User-Id of each configured profinet device

Returns: result as array of Arp.Io.ProfinetStack.Controller.Services.ArInfo

◆ GetArDiagnosis()

virtual std::vector< DiagnosticResult > Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetArDiagnosis ( const std::vector< uint16 > & arUserId )

pure virtual

Read an array of diagnosis information

Parameters

arUserId Array of uint16-Ar-User-Ids, for which diagnosis is requested, if empty, diagnosis for all configured ARs is returned

Returns: result as array of Arp.Io.ProfinetStack.Controller.Services.DiagnosticResult

◆ GetAttributeValue()

virtual ArDataResult Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAttributeValue	(	uint16	arUserId,
		const RscString< 256 > &	attributeName
	)

pure virtual

Read a single attribute value

Parameters

arUserId	ArUserId to specify AR of requested items
attributeName	String for the requested attribute

Returns: result as Arp.Io.ProfinetStack.Controller.Services.ArDataResult

◆ GetAttributeValues()

virtual void Arp::Io::ProfinetStack::Controller::Services::IArDataService::GetAttributeValues	(	uint16	arUserId,
		GetAttributeValuesAttributeNameDelegate	attributeNameDelegate,
		GetAttributeValuesResultDelegate	resultDelegate
	)

pure virtual

Read a list of attribute values

Parameters

arUserId	ArUserId to specify AR of requested items
attributeName	Array of string for select the items

Returns: result as array of Arp.Io.ProfinetStack.Controller.Services.ArDataResult

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/IArDataService.hpp
