Arp::Device::Interface::Services::IDeviceStatusService Class Reference

This service provides operations to read status information from the device. More...

#include <IDeviceStatusService.hpp>

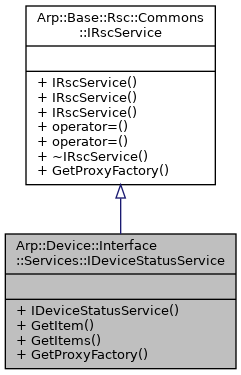

Inheritance diagram for Arp::Device::Interface::Services::IDeviceStatusService:

Public Types
using	Ptr = std::shared_ptr< IDeviceStatusService >
using	GetItemsIdentifiersDelegate = delegate< void(IRscWriteEnumerator< RscString< 512 > > &)>
using	GetItemsResultDelegate = delegate< void(IRscReadEnumerator< RscVariant< 512 > > &)>
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IDeviceStatusService (void)=default
	Constructs an IDeviceStatusService instance.
virtual RscVariant< 512 >	GetItem (const RscString< 512 > &identifier)=0
	This operation reads a single status information item. More...
virtual void	GetItems (GetItemsIdentifiersDelegate identifiersDelegate, GetItemsResultDelegate resultDelegate)=0
	This operation reads a list of status information items. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service provides operations to read status information from the device.

The service is defined in the library Arp.Device.Interface.
A current documentation of available device status information can be found in the Phoenix Contact "PLCnext Info Center", e.g.: PLCnext Info Center: IDeviceStatusService.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Consider the following common rule when using RSC services that provide arrays or enumerators as return values or out arguments: It is always required to completely read all items from these resulting lists or enumerators.

Member Function Documentation

GetItem()

virtual RscVariant< 512 > Arp::Device::Interface::Services::IDeviceStatusService::GetItem ( const RscString< 512 > &  identifier )

pure virtual

This operation reads a single status information item.

Parameters

identifier

String to select the respective status information item.

Returns

The result of the read operation as

RscVariant

on success,

RscType::Void

on error.

GetItems()

virtual void Arp::Device::Interface::Services::IDeviceStatusService::GetItems ( GetItemsIdentifiersDelegate  identifiersDelegate, GetItemsResultDelegate  resultDelegate  )

pure virtual

This operation reads a list of status information items.

Parameters

identifiers

Arry of String select the respective status information items.

Returns

The result of the read operation as an array of

RscVariant

on success,

RscType::Void

on error.

---

The documentation for this class was generated from the following file:

• Arp/Device/Interface/Services/IDeviceStatusService.hpp
