Arp::Device::Interface::Services::IDeviceControlService Class Reference

This service provides operations to control the device. More...

#include <IDeviceControlService.hpp>

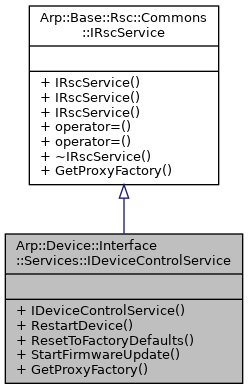

Inheritance diagram for Arp::Device::Interface::Services::IDeviceControlService:

Public Types
using	Ptr = std::shared_ptr< IDeviceControlService >
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IDeviceControlService (void)=default
	Constructs an IDeviceControlService instance.
virtual void	RestartDevice ()=0
	This operation reboots the device.
virtual AccessErrorCode	ResetToFactoryDefaults (uint16 resetType)=0
	This operation resets the device configuration to factory default settings. More...
virtual AccessErrorCode	StartFirmwareUpdate (uint16 updateType)=0
	This operation starts a firmware update. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service provides operations to control the device.

The service is defined in the library Arp.Device.Interface.
A current documentation of device control service can be found in the Phoenix Contact "PLCnext Info Center", e.g.: PLCnext Info Center: IDeviceControlService.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

ResetToFactoryDefaults()

virtual AccessErrorCode Arp::Device::Interface::Services::IDeviceControlService::ResetToFactoryDefaults ( uint16  resetType )

pure virtual

This operation resets the device configuration to factory default settings.

Parameters

resetType

Type of reset to be performed: Type 1 resets the device configuration to factory default settings. Type 2 downgrades the firmware to the initial factory version and resets the device configuration to factory default settings.

Returns

The result of the start of the reset operation as Arp.Device.Interface.Services.AccessErrorCode.

When the reset was started successfully, the PLC will stop and then reboot. During the reboot the requested defaults will be set.

StartFirmwareUpdate()

virtual AccessErrorCode Arp::Device::Interface::Services::IDeviceControlService::StartFirmwareUpdate ( uint16  updateType )

pure virtual

This operation starts a firmware update.

Parameters

updateType

Reserved for future extentions, must be 0 in this version.

Returns

The result of the start of the update operation as Arp.Device.Interface.Services.AccessErrorCode.

Prior to starting the firmware update, the respective raucb-container must be copied to the path "/opt/plcnext/custom" on the device.
When the start of the firmware update was successfull, the PLC will stop, perform the update and then reboot.

---

The documentation for this class was generated from the following file:

• Arp/Device/Interface/Services/IDeviceControlService.hpp
