Arp::Plc::Meta::Services::CustomAttribute Class Reference

Container for individual Arp.Plc.Meta.Services.CustomAttribute attributes. The respective values for the attributes are stored within a RSC Variant datatype. More...

#include <CustomAttribute.hpp>

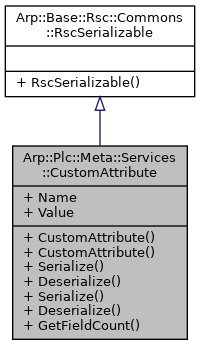

Inheritance diagram for Arp::Plc::Meta::Services::CustomAttribute:

Public Member Functions
	CustomAttribute (const RscString< 256 > &name, const RscVariant< 256 > &value)
	Constructs an CustomAttribute instance.
void	Serialize (RscWriter &writer) const
void	Deserialize (RscReader &reader)
void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...
void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)

Public Attributes
RscString< 256 >	Name
	Attribute name.
RscVariant< 256 >	Value
	Attribute value.

Detailed Description

Container for individual Arp.Plc.Meta.Services.CustomAttribute attributes. The respective values for the attributes are stored within a RSC Variant datatype.

Member Function Documentation

Deserialize()

void Arp::Plc::Meta::Services::CustomAttribute::Deserialize

(

JRscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader

Reference to RscReader.

Serialize()

void Arp::Plc::Meta::Services::CustomAttribute::Serialize

(

JRscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Plc/Meta/Services/CustomAttribute.hpp
• Arp/Plc/Meta/Services/CustomAttribute.cpp
