Arp::Io::ProfinetStack::System::Services::IAcyclicCommunicationService Class Reference

This service enables sending implicit read record requests. More...

#include <IAcyclicCommunicationService.hpp>

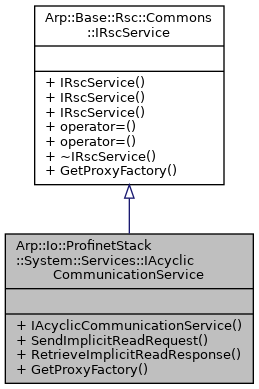

Inheritance diagram for Arp::Io::ProfinetStack::System::Services::IAcyclicCommunicationService:

Public Types
using	Ptr = std::shared_ptr< IAcyclicCommunicationService >
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IAcyclicCommunicationService (void)=default
	Constructs an IAcyclicCommunicationService instance.
virtual RecordResult	SendImplicitReadRequest (const RecordParameter &parameter)=0
	Sends a request to read records implicitly, that means without an AR to the device. More...
virtual RecordResult	RetrieveImplicitReadResponse (uint32 requestID, std::vector< byte > &data)=0
	Tries to retrieve implicit read response. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service enables sending implicit read record requests.

The PROFINET controller or the PROFINET device have to be activated for this service to function properly.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

RetrieveImplicitReadResponse()

virtual RecordResult Arp::Io::ProfinetStack::System::Services::IAcyclicCommunicationService::RetrieveImplicitReadResponse ( uint32  requestID, std::vector< byte > &  data  )

pure virtual

Tries to retrieve implicit read response.

Parameters

requestID	ID that was returned on sending the request.
data	Buffer for the retrieved data.

Returns

RecordResult contains error informationen.

Only if ServiceDone in Arp.Io.ProfinetStack.System.Services.RecordResult is true, the error information and the data buffer are valid

SendImplicitReadRequest()

virtual RecordResult Arp::Io::ProfinetStack::System::Services::IAcyclicCommunicationService::SendImplicitReadRequest ( const RecordParameter &  parameter )

pure virtual

Sends a request to read records implicitly, that means without an AR to the device.

Parameters

parameter

Parameter to address the device and the record object to read.

Returns

RecordResult contains the request ID that is needed to retrieve the response and error informationen.

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/System/Services/IAcyclicCommunicationService.hpp
