Contains the ident numbers and names the corresponding module and submodule of a node. More...
#include <NodeIdentityInfo.hpp>

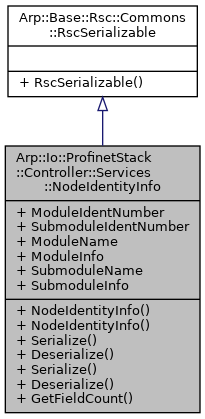

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo:
Public Member Functions | |
| NodeIdentityInfo (void) | |
| Constructs an NodeIdentityInfo instance. | |
| NodeIdentityInfo (uint32 moduleIdentNumber, uint32 submoduleIdentNumber, const RscString< 512 > &moduleName, const RscString< 512 > &moduleInfo, const RscString< 512 > &submoduleName, const RscString< 512 > &submoduleInfo) | |
| Constructs an NodeIdentityInfo instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| uint32 | ModuleIdentNumber = 0 |
| ModuleIdentNumber | |
| uint32 | SubmoduleIdentNumber = 0 |
| SubmoduleIdentNumber | |
| RscString< 512 > | ModuleName |
| Text name of the module type | |
| RscString< 512 > | ModuleInfo |
| Info text of the module type | |
| RscString< 512 > | SubmoduleName |
| Text name of the SubmoduleName | |
| RscString< 512 > | SubmoduleInfo |
| Info text of the SubmoduleName | |
Detailed Description
Contains the ident numbers and names the corresponding module and submodule of a node.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Io/ProfinetStack/Controller/Services/NodeIdentityInfo.hpp
- Arp/Io/ProfinetStack/Controller/Services/NodeIdentityInfo.cpp
