Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue Class Reference

Contains statistic values of one application relation More...

#include <ArStatisticValue.hpp>

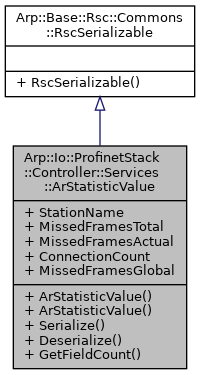

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue:

Public Member Functions
	ArStatisticValue (void)
	Constructs an ArStatisticValue instance.
	ArStatisticValue (const RscString< 256 > &stationName, uint32 missedFramesTotal, uint32 missedFramesActual, uint32 connectionCount, uint32 missedFramesGlobal)
	Constructs an ArStatisticValue instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
RscString< 256 >	StationName
	Name of profinet device.
uint32	MissedFramesTotal = 0
	Count of missed frames of profinet device since start of controller or last Reset().
uint32	MissedFramesActual = 0
	Count of missed frames since start of connection. This value is not reset by Reset().
uint32	ConnectionCount = 0
	Count of reconnects since start of controller or last Reset().
uint32	MissedFramesGlobal = 0
	Sum of missed frames of all configured Profinet devices.

Detailed Description

Contains statistic values of one application relation

Member Function Documentation

Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Io/ProfinetStack/Controller/Services/ArStatisticValue.hpp
• Arp/Io/ProfinetStack/Controller/Services/ArStatisticValue.cpp
