Use this service for acyclic communication with Profibus slaves More...

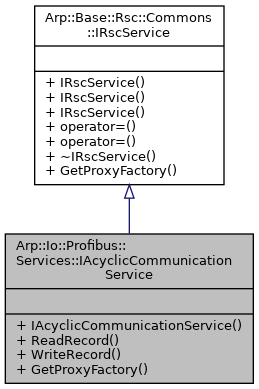

Inheritance diagram for Arp::Io::Profibus::Services::IAcyclicCommunicationService:

Public Types
using	Ptr = std::shared_ptr< IAcyclicCommunicationService >

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IAcyclicCommunicationService (void)=default
	Constructs an IAcyclicCommunicationService instance.

virtual RecordResult	ReadRecord (const RecordParameters &parameters, std::vector< byte > &data)=0
	Reads object from Profibus module More...

virtual RecordResult	WriteRecord (const RecordParameters &parameters, const std::vector< byte > &data)=0
	Writes object to Profibus module More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

Use this service for acyclic communication with Profibus slaves

This service is defined in library Arp.Io.Profibus.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

virtual RecordResult Arp::Io::Profibus::Services::IAcyclicCommunicationService::ReadRecord	(	const RecordParameters &	parameters,
		std::vector< byte > &	data
	)

pure virtual

Reads object from Profibus module

Parameters

parameters	Structure with paramaters of module and object
data	Data read from object

virtual RecordResult Arp::Io::Profibus::Services::IAcyclicCommunicationService::WriteRecord	(	const RecordParameters &	parameters,
		const std::vector< byte > &	data
	)

pure virtual

Writes object to Profibus module

Parameters

parameters	Structure with parameters of module and object
data	Data to write in object

The documentation for this class was generated from the following file:
