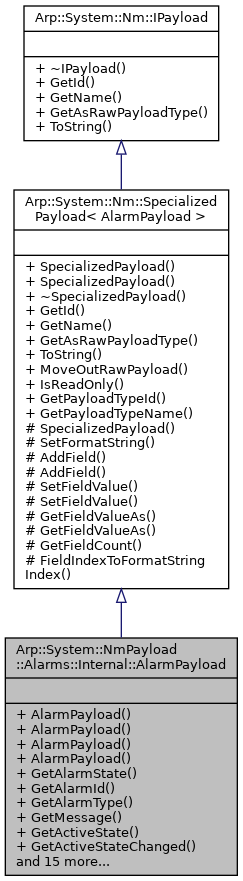

Inheritance diagram for Arp::System::NmPayload::Alarms::Internal::AlarmPayload:

Public Types
using	ArgumentsType = std::tuple< const char , const char , const char , bool, bool, bool, bool, int16, bool, const char , const char , const char >
	ArgumentsType to be used with NonBlockingNotificationRegistration3

Public Types inherited from Arp::System::Nm::SpecializedPayload< AlarmPayload >
using	ValueType = RawPayloadType::value_type

using	RscType = Arp::Base::Rsc::Commons::RscType

using	FieldType = RscType

Public Member Functions
	AlarmPayload (const ArgumentsType &args)

	AlarmPayload (const String &alarmId, const String &alarmType, const String &message, const bool activeState, const bool ackedState, const bool confirmedState, const bool suppressedState, const int16 severity, const bool isRetain, const String &comment, const String &language, const String &user)

	AlarmPayload (const AlarmState &alarmState)

	AlarmPayload (const Notification &notification)

AlarmState	GetAlarmState () const

String	GetAlarmId () const

String	GetAlarmType () const

String	GetMessage () const

bool	GetActiveState () const

DateTime	GetActiveStateChanged () const

bool	GetAckedState () const

DateTime	GetAckedStateChanged () const

bool	GetConfirmedState () const

DateTime	GetConfirmedStateChanged () const

bool	GetSuppressedState () const

DateTime	GetSuppressedStateChanged () const

int16	GetSeverity () const

bool	GetRetain () const

DateTime	GetRetainChanged () const

DateTime	GetAlarmChanged () const

String	GetUserParameterName (int index) const

RscVariant< 512 >	GetUserParameterValue (int index) const

String	GetComment () const

String	GetLanguage () const

String	GetUser () const

Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< AlarmPayload >
	SpecializedPayload (const Notification &notification)
	Creates a view on a Notification object More...

	SpecializedPayload (const GenericPayload &payloadArg)
	Creates a view on a GenericPayload object More...

PayloadTypeIdType	GetId () const final
	Returns the PayloadTypeId More...

const String	GetName () const final
	Returns the PayloadTypeName More...

const RawPayloadType &	GetAsRawPayloadType () const final
	Returns a reference to the raw payload object More...

const String	ToString () const override
	Get a human readable string representation More...

RawPayloadType &&	MoveOutRawPayload ()

bool	IsReadOnly () const
	Returns true if this object is a view on a Payload

virtual PayloadTypeIdType	GetId () const =0
	Returns the PayloadTypeId More...

virtual const String	GetName () const =0
	Returns the PayloadTypeName More...

virtual const RawPayloadType &	GetAsRawPayloadType () const =0
	Returns a reference to the raw payload object More...

virtual const String	ToString () const =0
	Get a human readable string representation More...

Additional Inherited Members
Static Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< AlarmPayload >
static PayloadTypeIdType	GetPayloadTypeId ()
	Returns the PayloadTypeId More...

static const String	GetPayloadTypeName ()
	Returns the PayloadType name More...

Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< AlarmPayload >
	SpecializedPayload (const String &formatString)
	Creates a SpecializedPayload with an format string More...

void	SetFormatString (const String &formatString)
	summary>Retuns the index in the format string for a given payload field More...

size_t	AddField ()
	Adds a payload field More...

size_t	AddField ()
	Adds a payload field More...

void	SetFieldValue (size_t fieldIndex, const T &value)
	Sets the value of a payload field More...

void	SetFieldValue (size_t fieldIndex, T value)
	Sets the value of a payload field More...

const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

const T	GetFieldValueAs (size_t fieldIndex) const
	Gets a field value with the specified type More...

size_t	GetFieldCount () const
	Gets the number of fields in the payload More...

Static Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< AlarmPayload >
static size_t	FieldIndexToFormatStringIndex (size_t fieldIndex)

The documentation for this class was generated from the following files:

Arp/System/NmPayload/Alarms/Internal/AlarmPayload.hpp
Arp/System/NmPayload/Alarms/Internal/AlarmPayload.cpp
