Stores the to be written data and the related variable name to be write to. More...
#include <WriteItem.hpp>

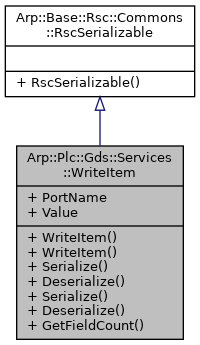

Inheritance diagram for Arp::Plc::Gds::Services::WriteItem:
Public Member Functions | |
| WriteItem (void) | |
| Constructs an WriteItem instance. | |
| WriteItem (const RscString< 512 > &portName, const RscVariant< 512 > &value) | |
| Constructs an WriteItem instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| RscString< 512 > | PortName |
| Name of the variable | |
| RscVariant< 512 > | Value |
| Contains the to be written data | |
Detailed Description
Stores the to be written data and the related variable name to be write to.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Plc::Gds::Services::WriteItem::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Plc::Gds::Services::WriteItem::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Plc::Gds::Services::WriteItem::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Plc::Gds::Services::WriteItem::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Plc/Gds/Services/WriteItem.hpp
- Arp/Plc/Gds/Services/WriteItem.cpp
