Base class for libraries providing meta data More...

#include <MetaLibraryBase.hpp>

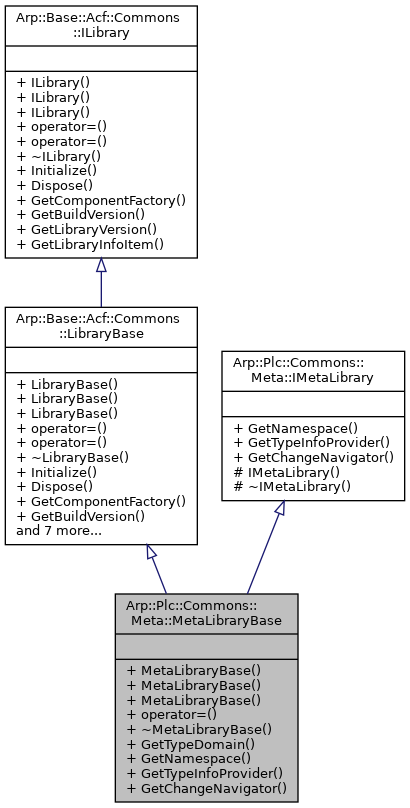

Inheritance diagram for Arp::Plc::Commons::Meta::MetaLibraryBase:

Public Member Functions
	MetaLibraryBase (TypeDomain &typeDomain)
	DEPRECATED! Constructs an MetaLibraryBase instance. More...

	MetaLibraryBase (const ArpVersion &libraryVersion, TypeDomain &typeDomain)
	Constructs an MetaLibraryBase instance. More...

	MetaLibraryBase (const MetaLibraryBase &arg)=default
	Copy constructor.

MetaLibraryBase &	operator= (const MetaLibraryBase &arg)=default
	Assignment operator.

	~MetaLibraryBase (void) override=default
	Destructs this instance and frees all resources.

TypeDomain &	GetTypeDomain ()

const char *	GetNamespace (void) override
	Gets the namespace of this library. More...

ITypeInfoProvider &	GetTypeInfoProvider (bool useBackgroundDomain) override
	Gets the ITypeInfoProvider of this library. More...

IChangeNavigator *	GetChangeNavigator (void) override
	Gets the specialized IChangeNavigator of this component. More...

Public Member Functions inherited from Arp::Base::Acf::Commons::LibraryBase
	LibraryBase (const ArpVersion &libraryVersion=ArpVersion{})
	Constructs a LibraryBase instance. More...

	LibraryBase (const LibraryBase &arg)=delete

	LibraryBase (LibraryBase &&arg) noexcept
	The default move constructor. More...

LibraryBase &	operator= (const LibraryBase &arg)=delete

LibraryBase &	operator= (LibraryBase &&arg) noexcept
	The default move-assignment operator. More...

	~LibraryBase (void) override
	The default destructor.

void	Initialize (void) override
	Initializes this library. More...

void	Dispose (void) override
	Disposes this library. More...

IComponentFactory &	GetComponentFactory (void) override
	Gets the component factory of this library to create instances of its provided components. More...

const ArpVersion &	GetBuildVersion (void) const override
	Gets the version of the firmware or SDK which was used to build the shared library. More...

const ArpVersion &	GetLibraryVersion (void) const override
	Gets the version of the library provided by its author. More...

String	GetLibraryInfoItem (LibraryInfoKind kind) const override
	Gets additional information about the library More...

template<class T >
void	AddComponentType (void)
	Registers a type of a component of this library. More...

template<class T >
void	RegisterComponentType (void)
	Registers a type of a component of this library. More...

template<class T >
void	RegisterComponentType (const String &typeName)
	Registers a type of a component of this library. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Base::Acf::Commons::ILibrary
	ILibrary (void)=default
	The default constructor.

	ILibrary (ILibrary &&arg) noexcept=default
	The move constructor. More...

	ILibrary (const ILibrary &arg)=delete
	The copy constructor is deleted. More...

ILibrary &	operator= (ILibrary &&arg) noexcept=default
	The move assignment operator. More...

ILibrary &	operator= (const ILibrary &arg)=delete
	The copy assignment operator is deleted. More...

virtual	~ILibrary (void)=default
	The virtual default destructor.

virtual void	Initialize (void)=0
	Initializes this library. More...

virtual void	Dispose (void)=0
	Disposes this library. More...

virtual IComponentFactory &	GetComponentFactory (void)=0
	Gets the component factory of this library to create instances of its provided components. More...

virtual const ArpVersion &	GetBuildVersion (void) const =0
	Gets the version of the firmware or SDK which was used to build the shared library. More...

virtual const ArpVersion &	GetLibraryVersion (void) const =0
	Gets the version of the library provided by its author. More...

virtual String	GetLibraryInfoItem (LibraryInfoKind kind) const =0
	Gets additional information about the library More...

virtual const char *	GetNamespace (void)=0
	Gets the namespace of this library. More...

virtual ITypeInfoProvider &	GetTypeInfoProvider (bool useBackgroundDomain)=0
	Gets the ITypeInfoProvider of this library. More...

virtual IChangeNavigator *	GetChangeNavigator (void)=0
	Gets the specialized IChangeNavigator of this component. More...

Additional Inherited Members
Public Types inherited from Arp::Base::Acf::Commons::LibraryBase
using	FactoryMethod = IComponentFactory::FactoryMethod
	The prototype of the component factory method.

using	FactoryMethodCompat = IComponentFactory::FactoryMethodCompat
	The deprecated prototype of the component factory method.

Public Types inherited from Arp::Base::Acf::Commons::ILibrary
using	MainEntry = ILibrary &(*)(void)
	This is the prototype of the main entry point of any Arp library which shall be loaded dynamically by the Acf. More...

Public Types inherited from Arp::Plc::Commons::Meta::IMetaLibrary
using	Ptr = std::shared_ptr< IMetaLibrary >
	std::shared_ptr to IMetaLibrary

Protected Member Functions inherited from Arp::Plc::Commons::Meta::IMetaLibrary
	IMetaLibrary (void)=default
	Constructs an IMetaLibrary instance.

virtual	~IMetaLibrary (void)=default
	Destructs this instance and frees all resources.

Detailed Description

Base class for libraries providing meta data

Constructor & Destructor Documentation

◆ MetaLibraryBase() [1/2]

Arp::Plc::Commons::Meta::MetaLibraryBase::MetaLibraryBase ( TypeDomain & typeDomain )

explicit

DEPRECATED! Constructs an MetaLibraryBase instance.

Parameters

typeDomain Refrence to this library's TypeDomain

Use overload with additional libraryVersion instead.

◆ MetaLibraryBase() [2/2]

Arp::Plc::Commons::Meta::MetaLibraryBase::MetaLibraryBase	(	const ArpVersion &	libraryVersion,
		TypeDomain &	typeDomain
	)

Constructs an MetaLibraryBase instance.

Parameters

buildVersion	Version of the SDK used to build this library
libraryVersion	Version of this libraryTypeDomain
typeDomain	Refrence to this library's TypeDomain

Member Function Documentation

◆ GetChangeNavigator()

IChangeNavigator * Arp::Plc::Commons::Meta::MetaLibraryBase::GetChangeNavigator ( void )

overridevirtual

Gets the specialized IChangeNavigator of this component.

Returns: The change navigator of this component or nullptr if it's not provided.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

◆ GetNamespace()

const char * Arp::Plc::Commons::Meta::MetaLibraryBase::GetNamespace ( void )

overridevirtual

Gets the namespace of this library.

Returns: The namespace of this library.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

◆ GetTypeInfoProvider()

ITypeInfoProvider & Arp::Plc::Commons::Meta::MetaLibraryBase::GetTypeInfoProvider ( bool useBackgroundDomain )

overridevirtual

Gets the ITypeInfoProvider of this library.

Returns: The type info provider of this library.

Parameters

useBackgroundDomain true if the provider of the background domain should be returned, otherwise false.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

The documentation for this class was generated from the following files:

Arp/Plc/Commons/Meta/MetaLibraryBase.hpp
Arp/Plc/Commons/Meta/MetaLibraryBase.cpp
